DIODESDatasheet (PDF)

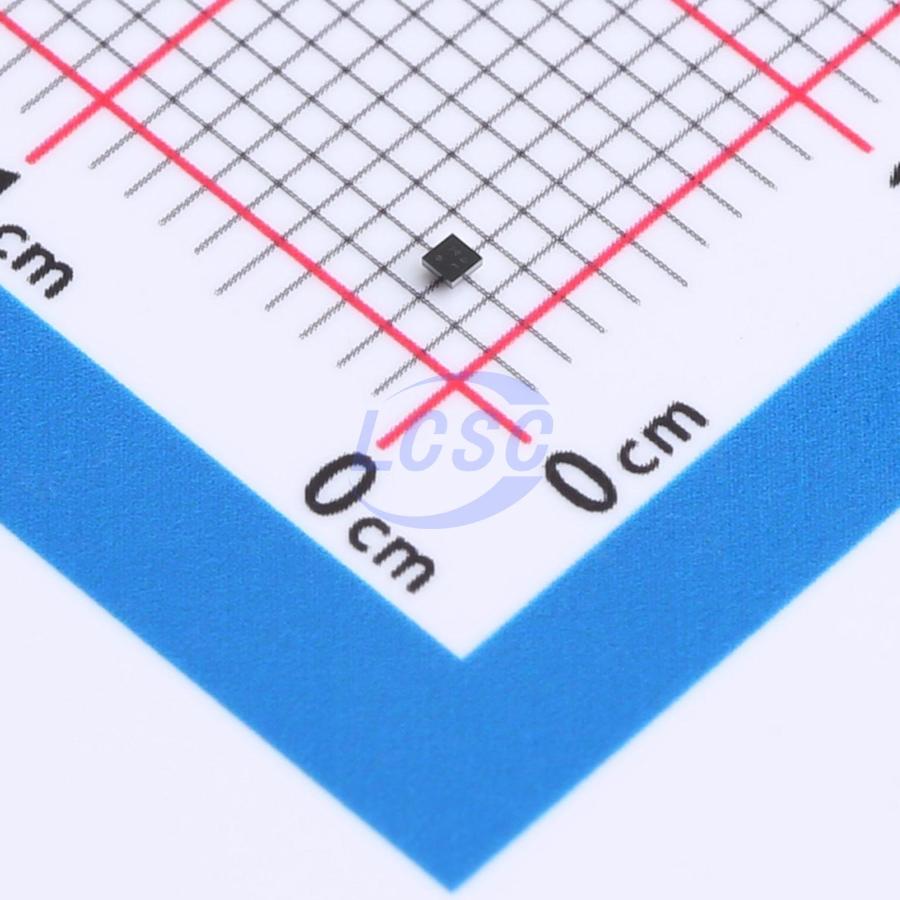

AP22908CN4-7
1 Active High 1.5A High Side Switch XFBGA-4 Power Distribution Switches, Load Drivers RoHS
XFBGA-4ROHS3 CompliantActive
1.5A Single Slew Rate Controlled Load Switch
- Manufacturer
- DIODES
- Manufacturer part #
- AP22908CN4-7
- Store part #
- C5205186
- Package / case
- XFBGA-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C5205186
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.67 | ₹153.35 |
| 50+ | ₹24.12 | ₹1,206.00 |
| 150+ | ₹21.31 | ₹3,196.50 |
| 500+ | ₹17.81 | ₹8,905.00 |
| 3,000+ | ₹16.25 | ₹48,750.00 |
| 6,000+ | ₹15.31 | ₹91,860.00 |
5 × ₹30.67
₹153.35
excl. GST
₹180.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP22908CN4-7
₹153.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.5A
- RDS(on)
- 28mΩ
- Operating Voltage
- 1.08V~3.6V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The AP22908 slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching applications. The MOSFET has a typical low RDS(ON) of 28mΩ at 3.6V, allowing increased load current handling capacity with a low forward voltage drop. The turn-on slew rate of the device is controlled internally to avoid inrush current. The AP22908 load switch is designed to operate from 1.08V to 3.6V, making it ideal for 1.2V, 1.8V, 2.5V, 3.3V and 3.6V systems. The typical quiescent supply current is only 0.05μA. The AP22908 is available in the wafer level chip scale 4-pin, X1-WLB0909-4 0.5mm pitch, U-WLB0909-4 0.5mm pitch, and standard SOT26 packages.
Applications
- Mobile devices and smart phones
- Portable media devices
- Wearable devices
- Advanced notebooks, UMPC, and MID
- Portable medical devices
- GPS and navigation equipment
- Portable instrumentation
Key features
- Wide Input Voltage Range: 1.08V to 3.6V
- Low On-Resistance:
- 69mΩ Typical @1.2V
- 41mΩ Typical @1.8V
- 33mΩ Typical @2.5V
- 28mΩ Typical @3.6V
- High DC Current Capability up to 1.5A
- Quick Discharging by Output Discharge Resistance
- Ultra-Low Quiescent Current 0.05μA
- Active-High Control Pin
- Minimum 0.9V of ON
- ESD Protection:
- Human Body Model: 2kV
- Charged Device Model: 1kV
- Package:
- X1-WLB0909-4 with Backside Laminate
- U-WLB0909-4 with Backside Laminate
- 0.87mm×0.87mm, 0.5mm Ball Pitch
- Standard Green SOT26
- Solder Ball Material: SnAgCu
- Totally Lead-Free and Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
