DIODES

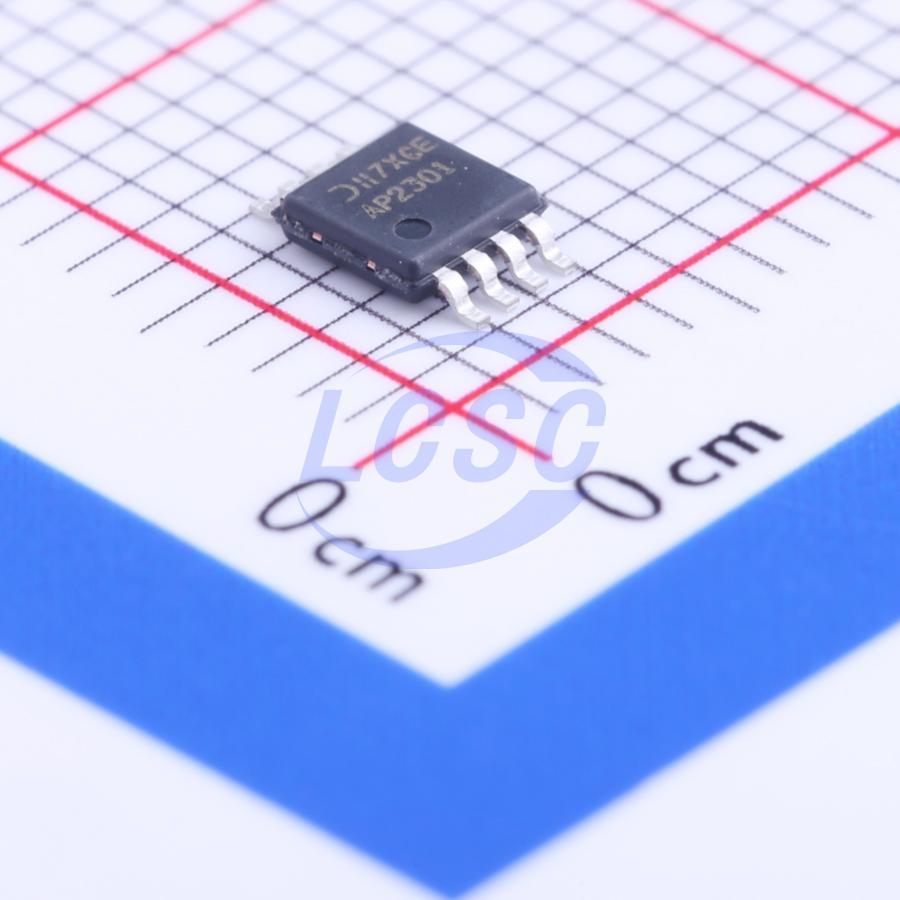

AP2301MPG-13

1 Active Low 2A High Side Switch MSOP-8-EP Power Distribution Switches, Load Drivers RoHS

MSOP-8-EPROHS CompliantActive

2.0A Single Channel Current-Limited Power Switch

Manufacturer: DIODES
Manufacturer part #: AP2301MPG-13
Store part #: C110467
Package / case: MSOP-8-EP
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,445 in stock

#C110467

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹16.29	₹81.45
50+	₹13.03	₹651.50
150+	₹11.39	₹1,708.50
500+	₹10.17	₹5,085.00
2,500+	₹9.19	₹22,975.00
5,000+	₹8.72	₹43,600.00

Quantity (min 5, multiples of 5)

5 × ₹16.29

₹81.45

excl. GST

₹96.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP2301MPG-13

₹81.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
number of channels: 1
Control Input Logic: Active Low
Maximum Continuous Current: 2A
Operating Voltage: 2.7V~5.5V
RDS(on): 70mΩ
Type: High Side Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.109 g

Overview

The AP2301 and AP2311 are single channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the opendrain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8, MSOP-8, MSOP-8EP, U-DFN3030 - 8 (Type E) and U-DFN2020-6 packages.

Applications

LCD TVs & Monitors
Set-Top-Boxes, Residential Gateways
Laptops, Desktops, Servers, e-Readers, Printers, Docking Stations, HUBs

Key features

Single Channel Current-limited Power Switch
Output Discharge Function
Fast Short-circuit Response Time: 2µs
2.5A Accurate Current Limiting
Reverse Current Blocking
70mΩ On-resistance
Input Voltage Range: 2.7V to 5.5V
Built-in Soft-start with 0.6ms Typical Rise Time
Over-current and Thermal Protection
Fault Report (FLG) with Blanking Time (7ms Typ)
ESD Protection: 2kV HBM, 200V MM
Ambient Temperature Range: -40°C to +85°C
SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 (Type E) and U-DFN2020-6: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
