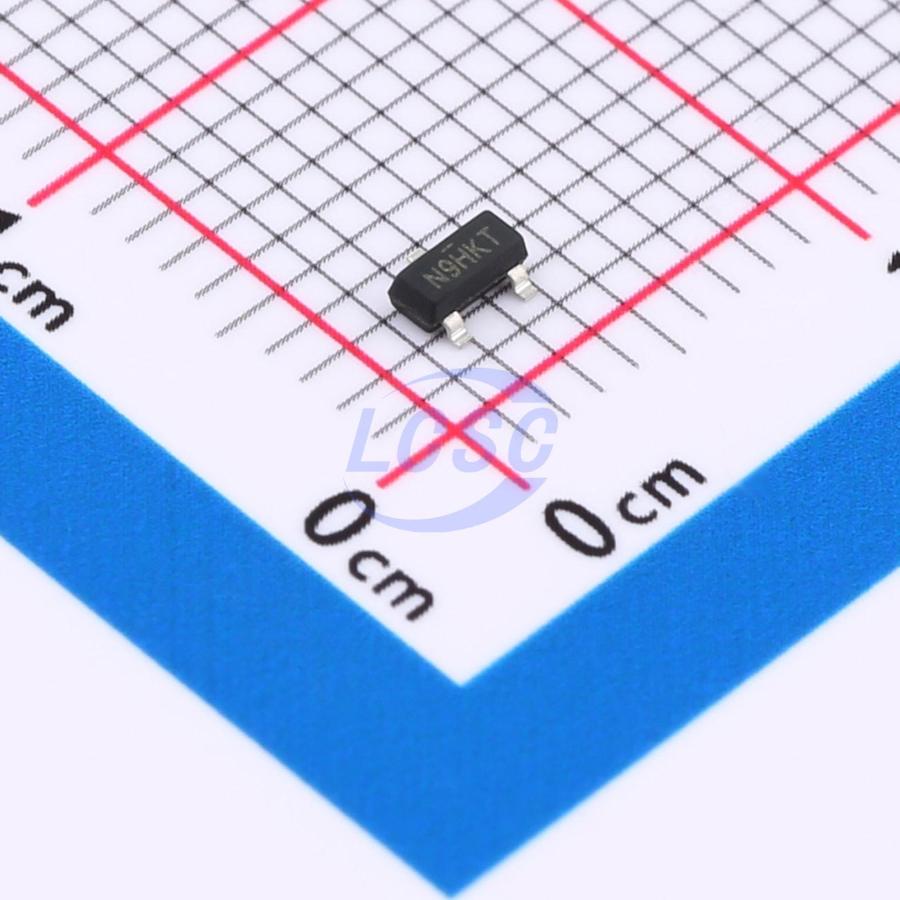

AP2311GN
P-Channel 60V 1.6A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 60V 1.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AP2311GN
- Store part #
- C41431770
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,570 in stock
#C41431770
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.21 | ₹102.10 |
| 100+ | ₹8.26 | ₹826.00 |
| 300+ | ₹7.28 | ₹2,184.00 |
| 1,000+ | ₹6.55 | ₹6,550.00 |
| 5,000+ | ₹5.34 | ₹26,700.00 |
| 10,000+ | ₹5.05 | ₹50,500.00 |
10 × ₹10.21
₹102.10
excl. GST
₹120.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2311GN
₹102.10 for 10 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 19.6pF
- Current - Continuous Drain(Id)
- 1.6A
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Load/Power Switch
- Interface Switch
- Logic Level Translation
Key features
- Drain-Source Voltage (VDS) = -60V, Drain Current (ID) = -1.6A
- RDS(ON) < 200mΩ at VGS = -10V
- RDS(ON) < 240mΩ at VGS = -4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P#C3021110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 39,180 | ₹13.03 · 39,180 in stock | View |
 | TPM60V2PS3#C3021111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,670 | ₹16.59 · 2,670 in stock | View |
 | SI2309CDS#C3021112TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 9,495 | ₹13.34 · 9,495 in stock | View |
 | DMP6350S#C3021113TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 940 | ₹12.95 · 940 in stock | View |
 | ZXMP6A13FTA#C3021114TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 22,190 | ₹14.78 · 22,190 in stock | View |
