VBsemi ElecDatasheet (PDF)

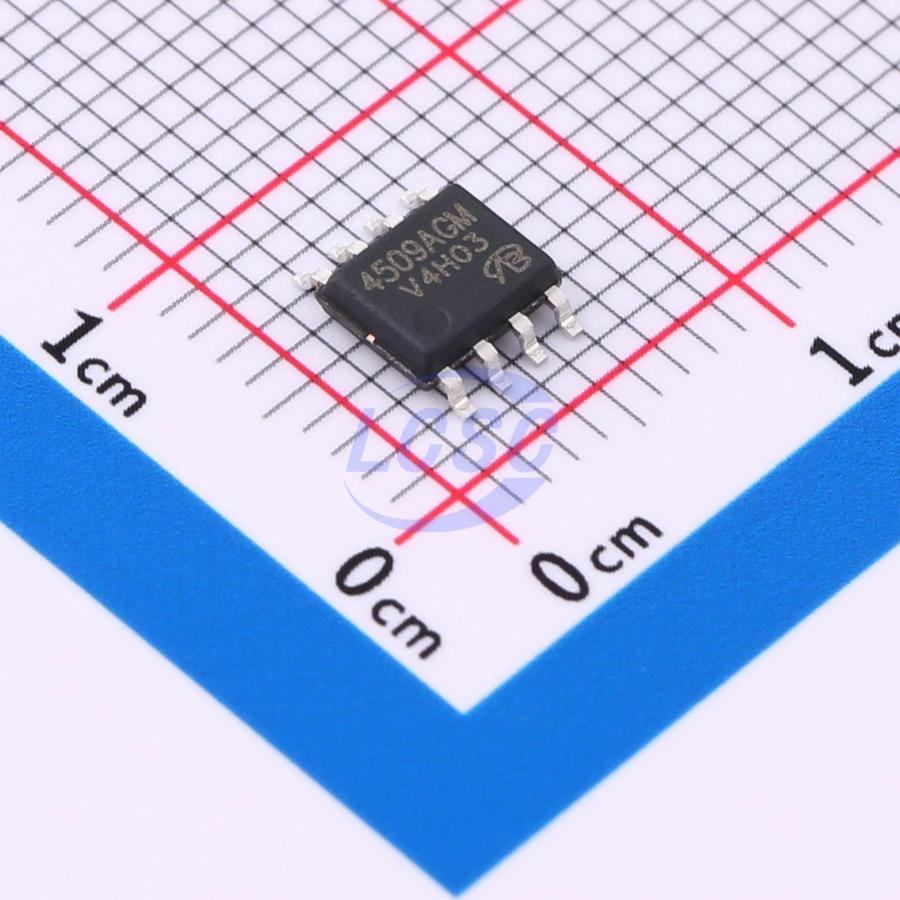

AP4509AGM-VB
N-Channel+P-Channel Array 30V 11A 3W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 11A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP4509AGM-VB
- Store part #
- C29779262
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C29779262
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.94 | ₹77.94 |
| 10+ | ₹64.88 | ₹648.80 |
| 30+ | ₹59.44 | ₹1,783.20 |
| 100+ | ₹52.47 | ₹5,247.00 |
| 500+ | ₹33.96 | ₹16,980.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹77.94
₹77.94
excl. GST
₹91.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP4509AGM-VB
₹77.94 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 800pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.515nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 254pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Motor drive
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME4502-VB#C20755430VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 38 | ₹58.19 · 38 in stock | View |
 | AP4509GM-VB#C29778906VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.19 · 10 in stock | View |
 | RU30C8H-VB#C20755392VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 14 | ₹60.71 · 14 in stock | View |
 | SSM4509GM-VB#C29779130VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹58.19 · 20 in stock | View |
 | UPA2792GR-VB#C879182VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹77.94 · 45 in stock | View |
