MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

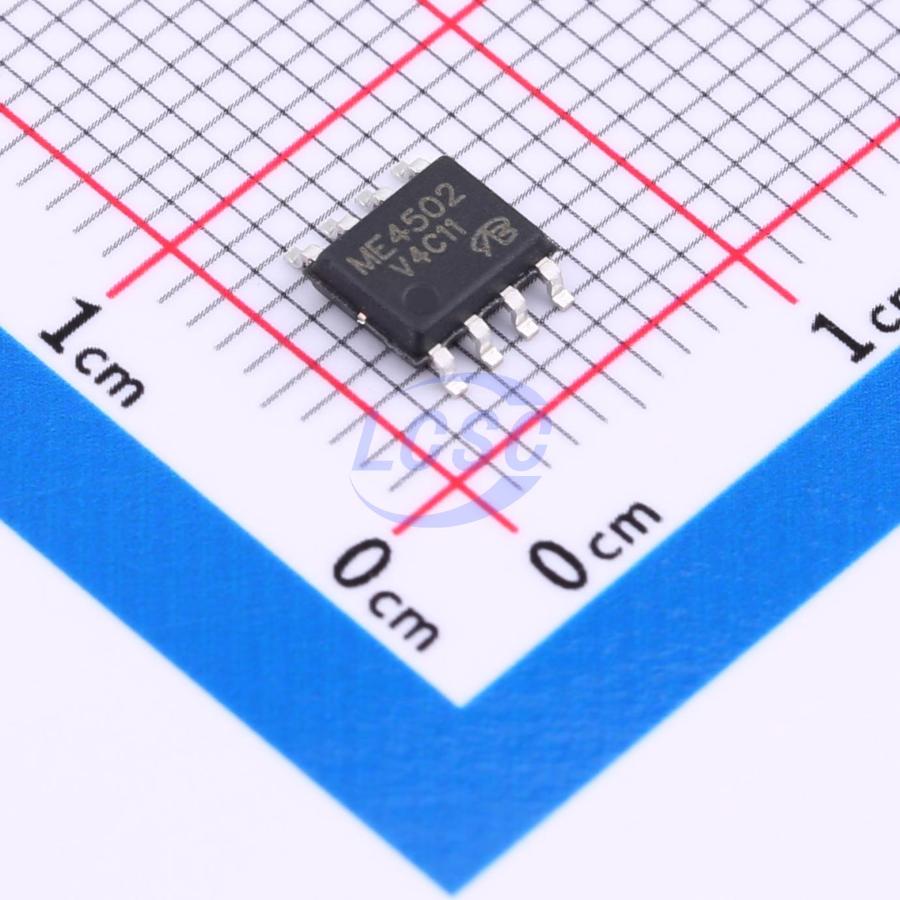

ME4502-VB
N-Channel+P-Channel Array 30V 11A 3W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 11A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ME4502-VB
- Store part #
- C20755430
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C20755430
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.19 | ₹58.19 |
| 10+ | ₹45.80 | ₹458.00 |
| 30+ | ₹40.34 | ₹1,210.20 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹30.68 | ₹15,340.00 |
| 1,000+ | ₹29.00 | ₹29,000.00 |
1 × ₹58.19
₹58.19
excl. GST
₹68.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ME4502-VB
₹58.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 800pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.515nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 254pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Motor drive
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP4509AGM-VB#C29779262VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹77.94 · 50 in stock | View |
 | AP4509GM-VB#C29778906VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.19 · 10 in stock | View |
 | RU30C8H-VB#C20755392VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 14 | ₹60.71 · 14 in stock | View |
 | SSM4509GM-VB#C29779130VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹58.19 · 20 in stock | View |
 | NCE4503S-VB#C693184VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 6 | ₹75.32 · 6 in stock | View |
