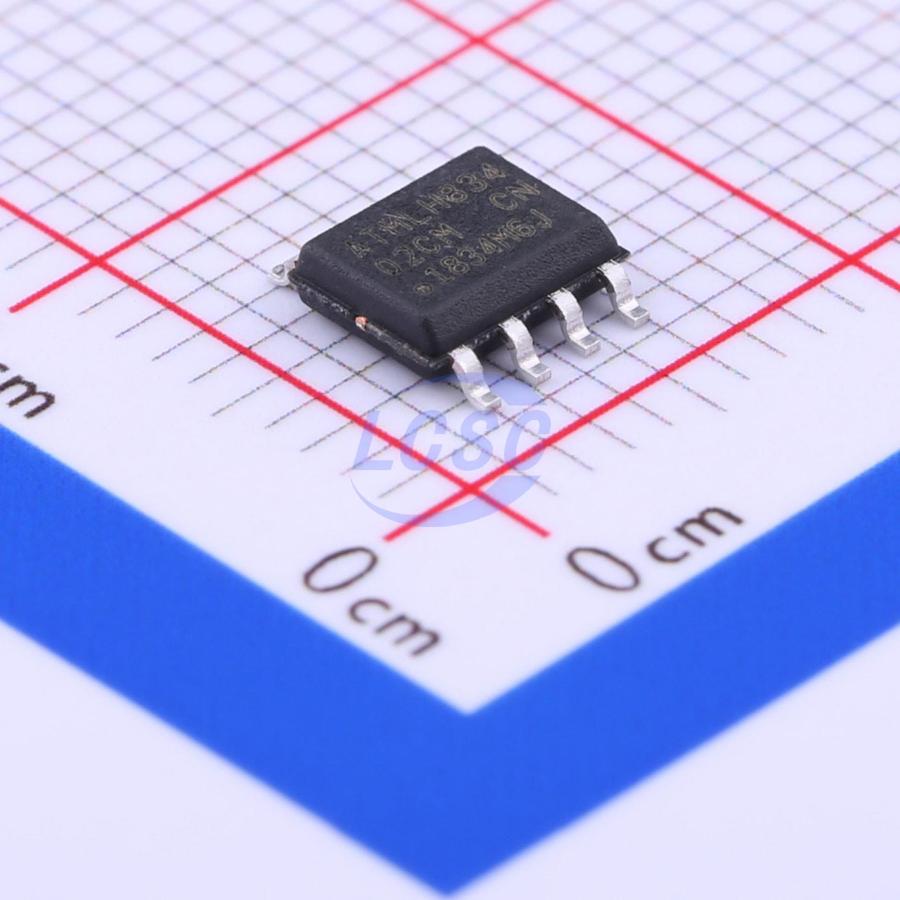

AT24C02C-SSHM-T
2Kbit 1MHz I2C SOIC-8 Memory RoHS
I²C-Compatible (2-wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93,365 in stock
#C6203
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.89 | ₹139.45 |
| 50+ | ₹21.90 | ₹1,095.00 |
| 150+ | ₹18.97 | ₹2,845.50 |
| 500+ | ₹16.37 | ₹8,185.00 |
| 2,500+ | ₹15.64 | ₹39,100.00 |
| 4,000+ | ₹15.21 | ₹60,840.00 |
5 × ₹27.89
₹139.45
excl. GST
₹164.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C02C-SSHM-T
₹139.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.082 g
Overview
The AT24C01C/02C provides 1024/2048-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of eight bits each. Both devices include a cascading feature that allows up to eight devices to share a common 2-wire bus. These devices are optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C01C/02C are available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead UDFN, 5-lead SOT23, and 8-ball VFBGA packages. In addition, the entire family operates from 1.7V to 5.5V VCC.
Key features
- Low-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 128x8 (1K) or 256x8 (2K)
- I²C compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
- Write Protect pin for hardware data protection
- 8-byte Page Write mode
- Partial page writes allowed
- Self-timed write cycle (5ms max)
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS-compliant)
- 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT and 8-ball VFBGA
- Die sale options: wafer form and tape and reel available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C02C-SSHM-B#C615453MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 35 | ₹48.69 · 35 in stock | View |
 | FM24C02F-SO-T-G#C19626881FUDAN MICRO · SOP-8 | FUDAN MICRO | SOP-8 | 14,640 | ₹15.21 · 14,640 in stock | View |
 | HX24C02P#C5445110hengjiaxing · SOP-8 | hengjiaxing | SOP-8 | 740 | ₹4.71 · 740 in stock | View |
 | AT24C02#C7470930HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 31,730 | ₹6.42 · 31,730 in stock | View |
| AT24MAC602-SSHM-T#C2061032MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 249 | ₹162.99 · 249 in stock | View | |
