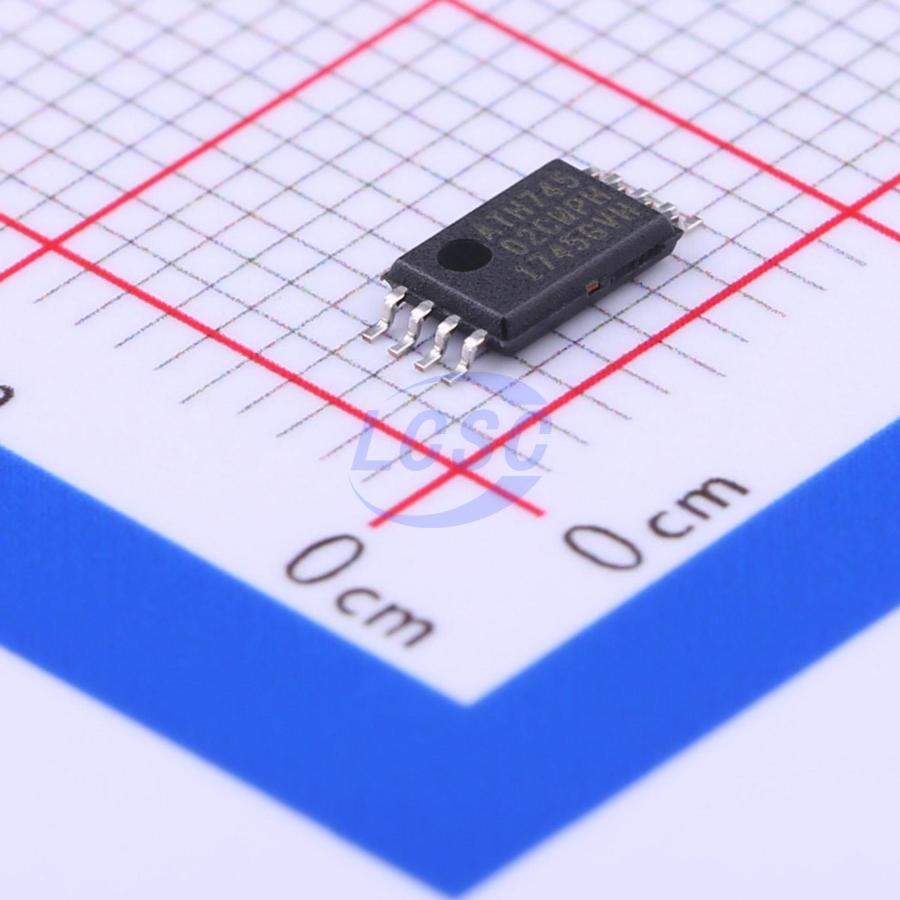

AT24C02C-XHM-T
2Kbit 1MHz I2C TSSOP-8 Memory RoHS
I²C-Compatible (2-wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,902 in stock
#C48914
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.99 | ₹56.99 |
| 10+ | ₹45.03 | ₹450.30 |
| 30+ | ₹39.81 | ₹1,194.30 |
| 100+ | ₹33.51 | ₹3,351.00 |
| 500+ | ₹30.46 | ₹15,230.00 |
| 1,000+ | ₹28.93 | ₹28,930.00 |
1 × ₹56.99
₹56.99
excl. GST
₹67.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C02C-XHM-T
₹56.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.118 g
Overview
The AT24C01C/02C provides 1024/2048-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of eight bits each. Both devices include a cascading feature that allows up to eight devices to share a common 2-wire bus. These devices are optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C01C/02C are available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead UDFN, 5-lead SOT23, and 8-ball VFBGA packages. In addition, the entire family operates from 1.7V to 5.5V VCC.
Key features
- Low-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 128x8 (1K) or 256x8 (2K)
- I²C compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
- Write Protect pin for hardware data protection
- 8-byte Page Write mode
- Partial page writes allowed
- Self-timed write cycle (5ms max)
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS-compliant)
- 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT and 8-ball VFBGA
- Die sale options: wafer form and tape and reel available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CS02-XHM-T#C616774MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 2 | ₹117.93 · 2 in stock | View |
 | AT24MAC402-XHM-B#C1350676MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 23 | ₹127.05 · 23 in stock | View |
 | AT24HC02C-XHM-T#C2062003MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 1 | ₹55.86 · 1 in stock | View |
 | P24C02A-TSH-MIR#C2885775PUYA · TSSOP-8 | PUYA | TSSOP-8 | 170 | ₹8.97 · 170 in stock | View |
| AT24C02C-XHM-TQN#C53432860QNHCHIP · TSSOP-8 | QNHCHIP | TSSOP-8 | 250 | ₹6.36 · 250 in stock | View | |
