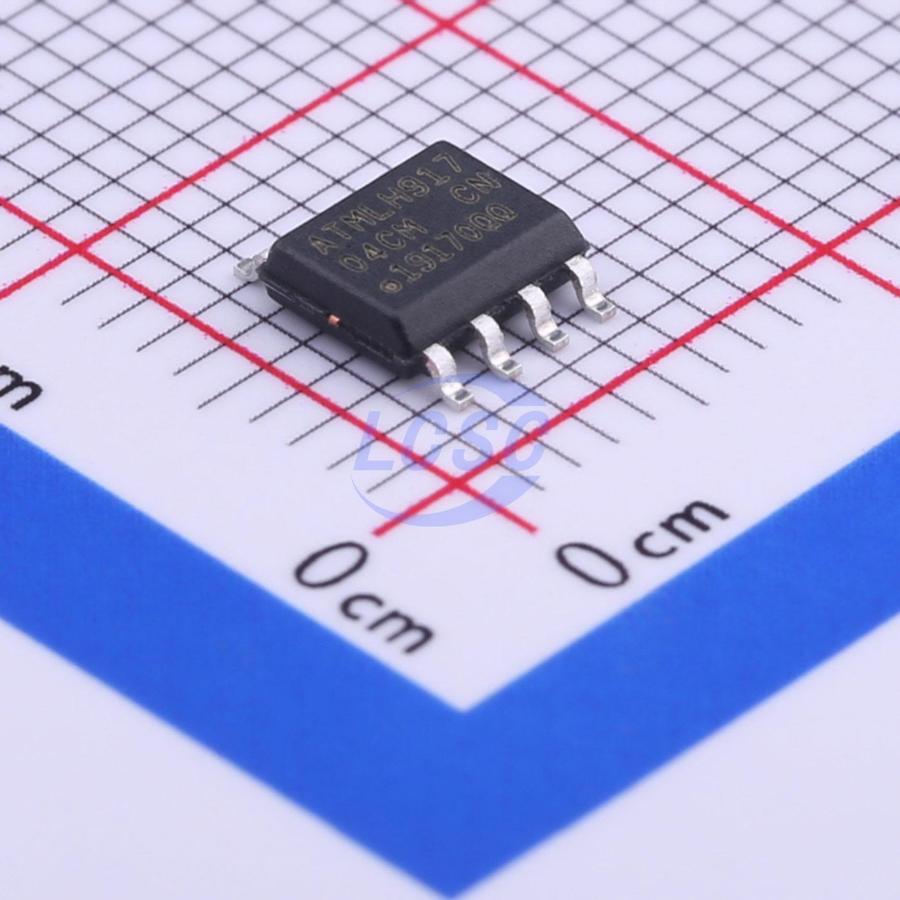

AT24C04C-SSHM-T
4Kbit 1MHz I2C SOIC-8 Memory RoHS
I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,140 in stock
#C6205
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.60 | ₹178.00 |
| 50+ | ₹29.13 | ₹1,456.50 |
| 150+ | ₹26.37 | ₹3,955.50 |
| 500+ | ₹22.90 | ₹11,450.00 |
| 2,500+ | ₹18.26 | ₹45,650.00 |
| 4,000+ | ₹17.33 | ₹69,320.00 |
5 × ₹35.60
₹178.00
excl. GST
₹210.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C04C-SSHM-T
₹178.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C04C and AT24C08C provides 4,096/8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512/1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. AT24C04C/08C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Key features
- Low-voltage and Standard-voltage Operation V_CC = 1.7V to 5.5V
- Internally Organized as 512 x 8 (4K), or 1024 x 8 (8K)
- I²C-compatible (2-wire) Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 16-byte Page Write Mode
- Partial Page Writes Allowed
- Self-timed Write Cycle (5ms Max)
- High-reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
- Die Options: Wafer Form and Tape and Reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AT24C04C-SSHM-B#C1348842MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹127.26 · 4 in stock | View | |
 | AT24CS04-SSHM-T#C615970MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 202 | ₹145.31 · 202 in stock | View |
 | AT24C04M/TR#C2688456HGSEMI · SOP-8 | HGSEMI | SOP-8 | On request | ₹11.77 · 0 in stock | View |
 | P24C04C-SSH-MIR#C2977250PUYA · SOP-8 | PUYA | SOP-8 | 940 | ₹10.19 · 940 in stock | View |
 | FEP24C04YSOP8G/TR#C49425002Full-Way · SOP-8 | Full-Way | SOP-8 | 1,405 | ₹10.82 · 1,405 in stock | View |
