2,380 in stock
#C22396896
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.13 | ₹170.65 |
| 50+ | ₹26.47 | ₹1,323.50 |
| 150+ | ₹23.19 | ₹3,478.50 |
| 500+ | ₹19.10 | ₹9,550.00 |
| 2,500+ | ₹17.89 | ₹44,725.00 |
| 5,000+ | ₹16.79 | ₹83,950.00 |
5 × ₹34.13
₹170.65
excl. GST
₹201.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

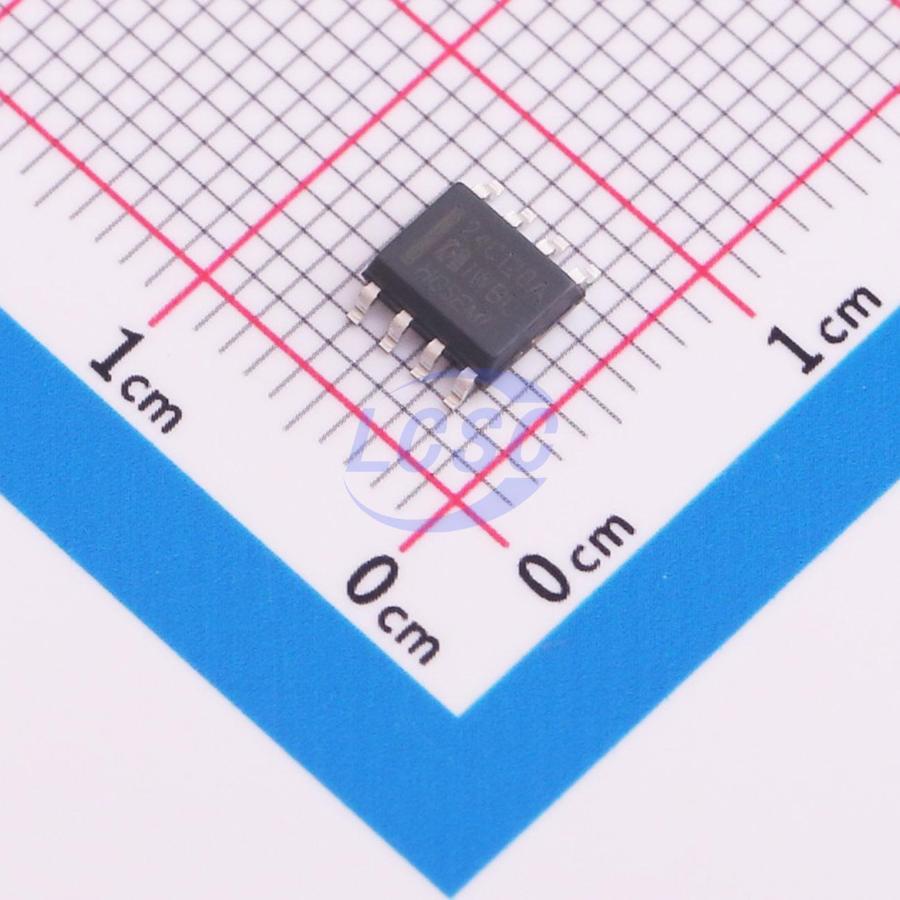

AT24C128AM/TR
₹170.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.077 g
Overview
The AT24C128A provides 131,072 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 16,384 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all data transfer protocol - 1 MHz - 400 kHz - 100 kHz
- Memory array: 128 Kbit (16 Kbytes) of EEPROM
- Page size: 64 bytes - Additional Write lockable page
- Single supply voltage and high speed: 1 MHz
- Write: Byte Write within 3 ms - Page Write within 3 ms
- Operating Ambient Temperature: From -40℃ to +85℃
- High-reliability Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Internally Organized: AT24C128A, 16,384 X 8 (128K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Hardware Data Protection
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- 8-lead DIP /SOP/MSOP/DFN packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24LC128M/TR#C3007884HGSEMI · SOP-8 | HGSEMI | SOP-8 | 815 | ₹28.03 · 815 in stock | View |
 | AT24LC128M/TR#C3007893HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,220 | ₹27.84 · 1,220 in stock | View |
| AT24C128BM/TR#C41415960HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,490 | ₹20.00 · 1,490 in stock | View | |
| HG24C128BM/TR#C41415962HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,305 | ₹21.17 · 2,305 in stock | View | |
 | AT24C128M/TR#C356707HGSEMI · SOP-8 | HGSEMI | SOP-8 | 9,015 | ₹20.73 · 9,015 in stock | View |
