MICROCHIP

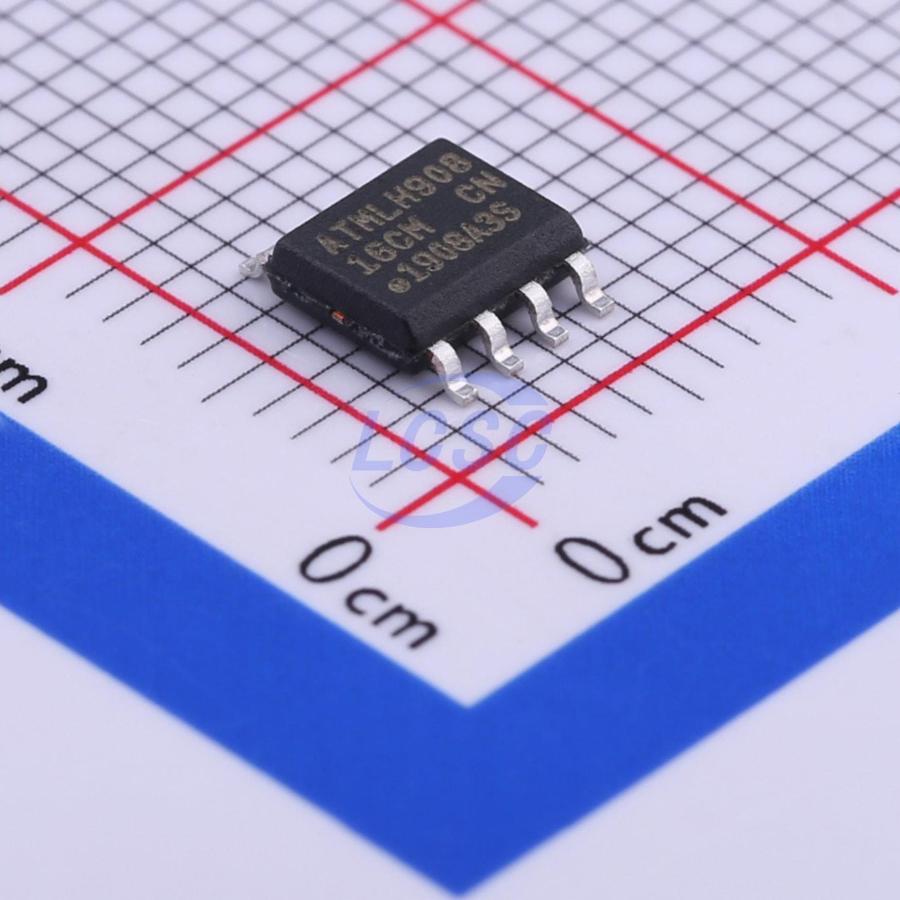

AT24C16C-SSHM-T
16Kbit 1MHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
I²C-Compatible, (2-Wire) Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47,260 in stock
#C6480
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.89 | ₹204.45 |
| 50+ | ₹32.04 | ₹1,602.00 |
| 150+ | ₹28.25 | ₹4,237.50 |
| 500+ | ₹23.51 | ₹11,755.00 |
| 2,500+ | ₹21.41 | ₹53,525.00 |
| 4,000+ | ₹20.15 | ₹80,600.00 |
5 × ₹40.89
₹204.45
excl. GST
₹241.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C16C-SSHM-T
₹204.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
Key features
- Low-voltage and standard-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 2,048×8 (16K)
- I²C-compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility
- Write Protect pin for hardware data protection
- 16-byte Page Write mode
- Partial page writes allowed
- Self-timed write cycle (5ms max)
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA
- Die options: wafer form and tape and reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C16C-SSHM-B#C116708MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 44 | ₹68.52 · 44 in stock | View |
 | HX24C16DRG#C5145457HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,305 | ₹9.67 · 1,305 in stock | View |
 | 24C16-HXY#C7427347HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 125 | ₹9.99 · 125 in stock | View |
 | HX24LC16BDRG#C2987259HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 8,670 | ₹16.42 · 8,670 in stock | View |
 | AT24LC16M/TR#C3007890HGSEMI · SOP-8 | HGSEMI | SOP-8 | 910 | ₹18.48 · 910 in stock | View |
