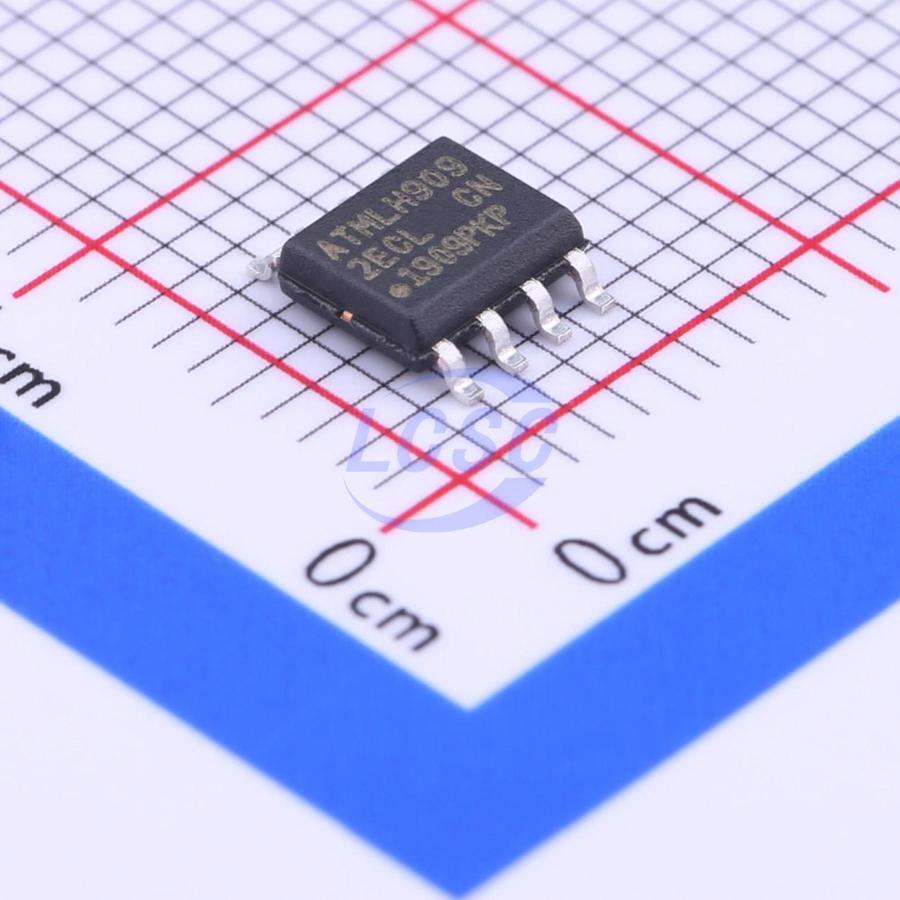

AT24C256C-SSHL-T
256Kbit 1MHz I2C SOIC-8 Memory RoHS
I2C-Compatible (2-Wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55,912 in stock
#C6482
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.79 | ₹50.79 |
| 10+ | ₹39.07 | ₹390.70 |
| 30+ | ₹33.43 | ₹1,002.90 |
| 100+ | ₹28.22 | ₹2,822.00 |
| 500+ | ₹26.92 | ₹13,460.00 |
| 1,000+ | ₹26.05 | ₹26,050.00 |
1 × ₹50.79
₹50.79
excl. GST
₹59.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C256C-SSHL-T
₹50.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The Atmel AT24C256C provides 262,144-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 32,768 words of eight bits each. The device’s cascading feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA packages. In addition, this device operates from 1.7V to 5.5V.
Key features
- Low-voltage and standard-voltage operation
- VCC = 1.7V to 5.5V
- Internally organized as 32,768x8
- 2-wire serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
- Write Protect pin for hardware protection
- 64-byte page write mode
- Partial page writes allowed
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 40 years
- Lead-free/Halogen-free devices available
- Green package options (Pb/Halide-free/RoHS compliant)
- 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA packages
- Die sale options: wafer form, waffle pack, and bumped wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C256C-SSHL-T-TUDI#C36533642Tudi · SOP-8 | Tudi | SOP-8 | 765 | ₹44.97 · 765 in stock | View |
 | HT24C256ARZ#C3019554HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,849 | ₹43.05 · 1,849 in stock | View |
 | 24FC256T-I/SN#C144294MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 263 | ₹204.92 · 263 in stock | View |
 | HX24LC256BDRG#C2987263HANSCHIP semiconductor · SOIC-8 | HANSCHIP semiconductor | SOIC-8 | 4,060 | ₹44.31 · 4,060 in stock | View |
 | HX24C256DRG#C5145458HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,415 | ₹27.77 · 2,415 in stock | View |
