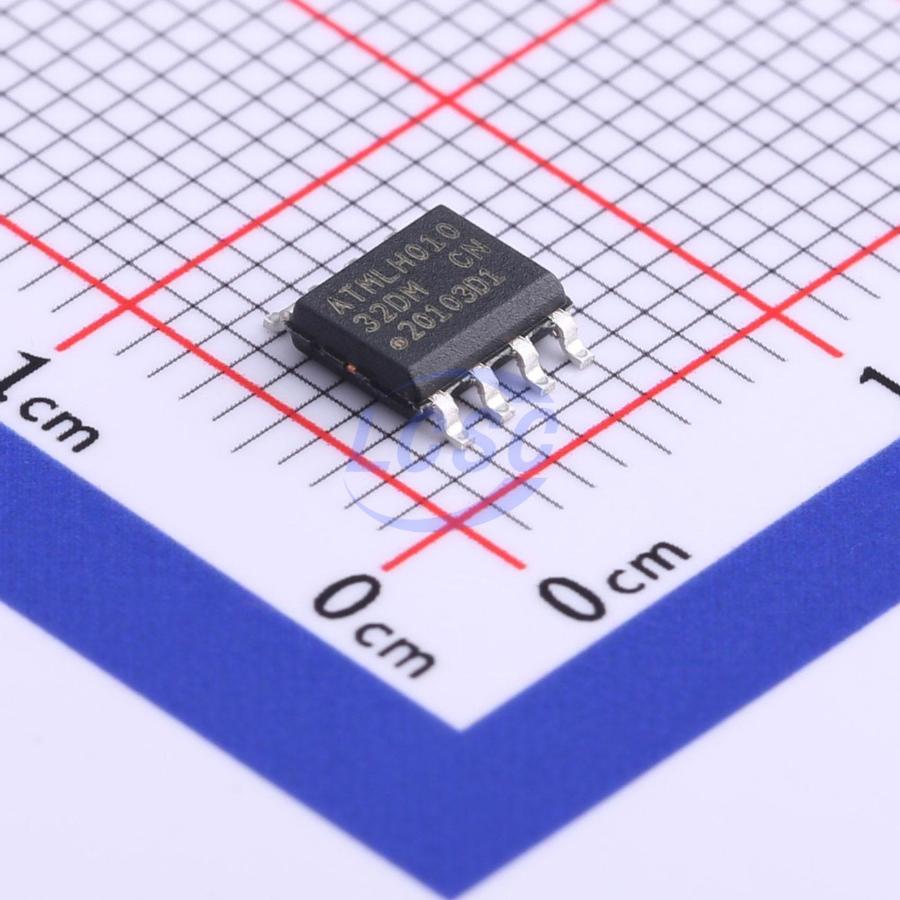

AT24C32D-SSHM-T
32Kbit 1MHz I2C SOIC-8 Memory RoHS
2-Wire Serial Electrically Erasable and Programmable Read Only Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,240 in stock
#C60583
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.74 | ₹223.70 |
| 50+ | ₹35.96 | ₹1,798.00 |
| 150+ | ₹32.20 | ₹4,830.00 |
| 500+ | ₹23.02 | ₹11,510.00 |
| 2,500+ | ₹20.93 | ₹52,325.00 |
| 4,000+ | ₹19.67 | ₹78,680.00 |
5 × ₹44.74
₹223.70
excl. GST
₹263.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C32D-SSHM-T
₹223.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Page write protection function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C32D/64D provides 32,768-/65,536-bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8-bits each. The device’s cascadable feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C32D/64D is available in space saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8- lead UDFN, 8-lead XDFN, 5-lead SOT23 and 8-ball VFBGA and is accessed via a 2- wire serial interface. In addition, the entire family operates from 1.7V to 5.5V.
Key features
- Low-voltage and Standard-voltage Operation – V_CC = 1.7 to 5.5V
- Internally Organized 4096 x 8, 8192 x 8
- 2-Wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol
- 1MHz (5.0V) and 400KHz (1.8V Compatibility)
- Write Protect Pin for Hardware Data Protection
- 32-Byte Page Write Mode (Partial Page Writes Allowed)
- Self-Timed Write Cycle (5ms max)
- High Reliability – Endurance: 1 Million Write Cycles – Data Retention: 100 Years
- Lead-free/Halogen-free Devices
- 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead UDFN, 8-lead XDFN, 5-lead SOT23 and 8-ball VFBGA
- Die Sales: Wafer Form, Waffle Pack and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24C32BN(XBLW)#C18723546XBLW · SOP-8 | XBLW | SOP-8 | 20,855 | ₹10.07 · 20,855 in stock | View |
 | 24C32(LX)#C22397203lingxingic · SOP-8 | lingxingic | SOP-8 | 1,290 | ₹12.41 · 1,290 in stock | View |
 | AT24C32-TD#C42421829TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 940 | ₹16.68 · 940 in stock | View |
 | AiP24C32SA8.TR#C52260230Wuxi I-core Elec · SOP-8 | Wuxi I-core Elec | SOP-8 | 3,980 | ₹19.18 · 3,980 in stock | View |
 | AT24CS32-SSHM-T#C615972MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 28 | ₹159.81 · 28 in stock | View |
