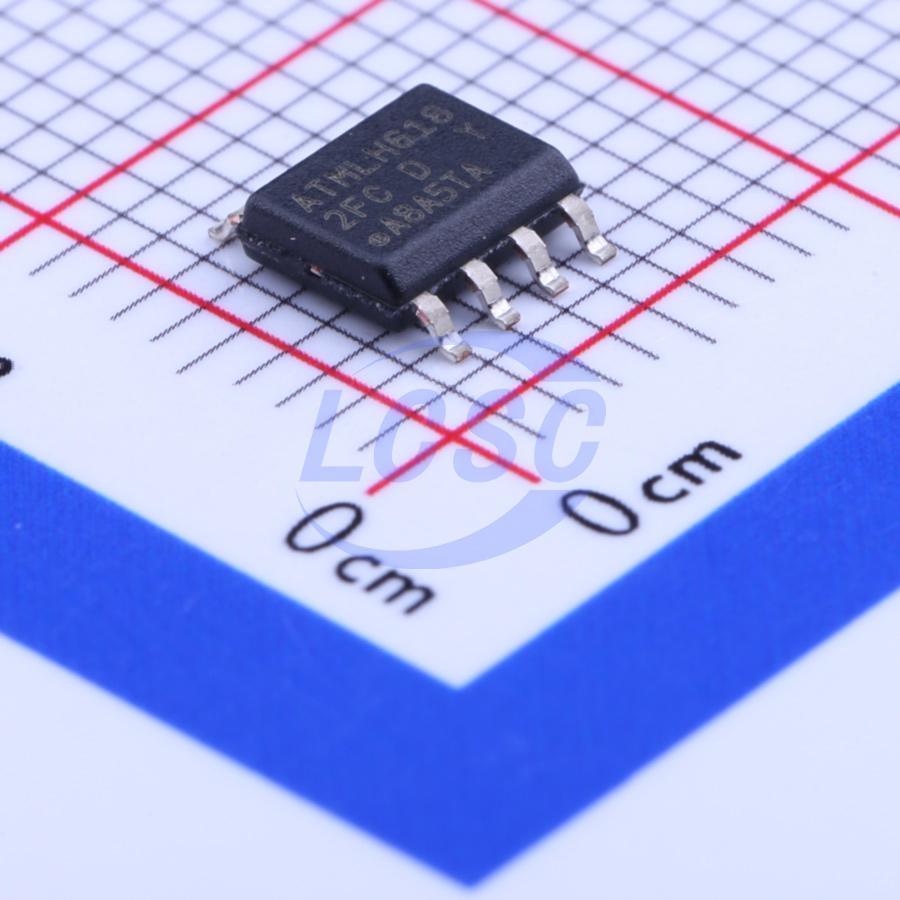

AT24C512C-SSHD-T
512Kbit 1MHz I2C SOIC-8 Memory RoHS
I²C-Compatiable (2-wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50,702 in stock
#C12371
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.63 | ₹67.63 |
| 10+ | ₹56.32 | ₹563.20 |
| 30+ | ₹48.28 | ₹1,448.40 |
| 100+ | ₹41.54 | ₹4,154.00 |
| 500+ | ₹39.58 | ₹19,790.00 |
| 1,000+ | ₹38.27 | ₹38,270.00 |
1 × ₹67.63
₹67.63
excl. GST
₹79.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C512C-SSHD-T
₹67.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 512Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
The Atmel AT24C512C provides 524,288 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 65,536 words of eight bits each. The cascadable feature of the device allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA packages. In addition, the entire family is available in 1.7V (1.7V to 3.6V) and 2.5V (2.5V to 5.5V) versions.
Key features
- Low-voltage and standard-voltage operation
- 1.7V (VCC = 1.7V to 3.6V)
- 2.5V (VCC = 2.5V to 5.5V)
- Internally organized as 65,536x8
- 2-wire serial interface
- Schmitt Triggers, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 5.5V) compatibility
- Write Protect pin for hardware data protection
- 128-byte page write mode
- partial page writes allowed
- Random and sequential read modes
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 40 years
- Green package options (Pb/Halide-free/RoHS Compliant)
- 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA packages
- Die sale options: wafer form and tape and reel available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C512C-SSHD-B#C615465MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 21 | ₹122.72 · 21 in stock | View |
 | AT24C512C-SSHM-T-TUDI#C41355582Tudi · SOP-8 | Tudi | SOP-8 | 97 | ₹59.85 · 97 in stock | View |
 | FT24C512A-ESG-B#C2921394FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 155 | ₹34.33 · 155 in stock | View |
 | BR24G512FJ-3AGTE2#C2061606ROHM · SOIC-8 | ROHM | SOIC-8 | 15 | ₹309.41 · 15 in stock | View |
 | AT24C512C-SSHD-T-TUDI#C36533649Tudi · SOP-8 | Tudi | SOP-8 | 890 | ₹65.91 · 890 in stock | View |
