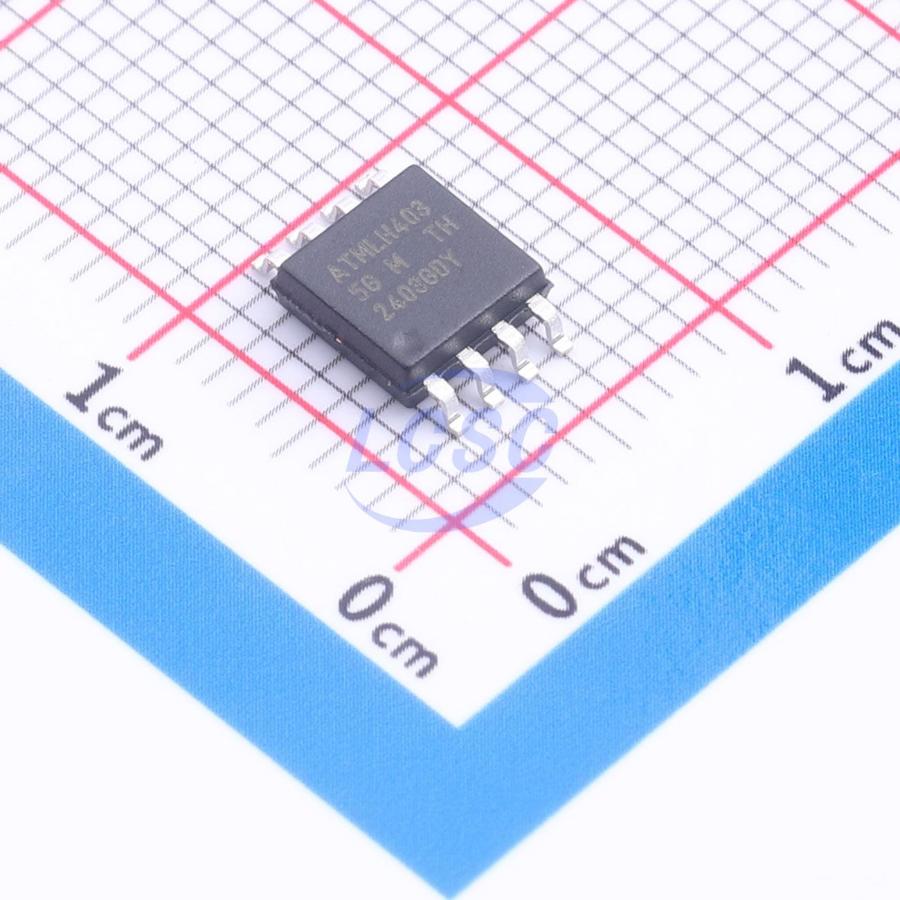

AT25M01-SHM-T

1Mbit 20MHz SPI SOIC-8-208mil Memory RoHS

SOIC-8-208milROHS3 CompliantActive

SPI Serial EEPROM

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C615980

Stock & price checked 8 days ago

Quantity (min 1)

1 × ₹427.06

₹427.06

excl. GST

₹503.93 incl. 18% GST

AT25M01-SHM-T

₹427.06 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL)
Memory Size: 1Mbit
Voltage - Supply: 1.7V~5.5V;7mA
Clock Frequency: 20MHz
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 2uA
Write Cycle Endurance: 1,000,000 cycles
Interface: SPI

Serial Peripheral Interface (SPI) Compatible
Supports SPI Modes 0 (0,0) and 3 (1,1): – Data sheet describes mode 0 operation
Low-Voltage Operation: – 1.7V, ΔVCC = 1.7V to 5.5V
Industrial Temperature Range: -40℃ to +85℃
20 MHz Clock Rate (5V)
256‑Byte Page Mode
Block Write Protection: – Protect 1/4, 1/2 or entire array
Write-Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
Self-Timed Write Cycle within 5 ms Maximum
ESD Protection > 4,000 V
High Reliability: – Endurance: 1,000,000 write cycles – Data retention: 100 years
Green (Lead-free/Halide-free/RoHS Compliant) Package Options
Die Sale Options: Wafer Form and Bumped Wafers
