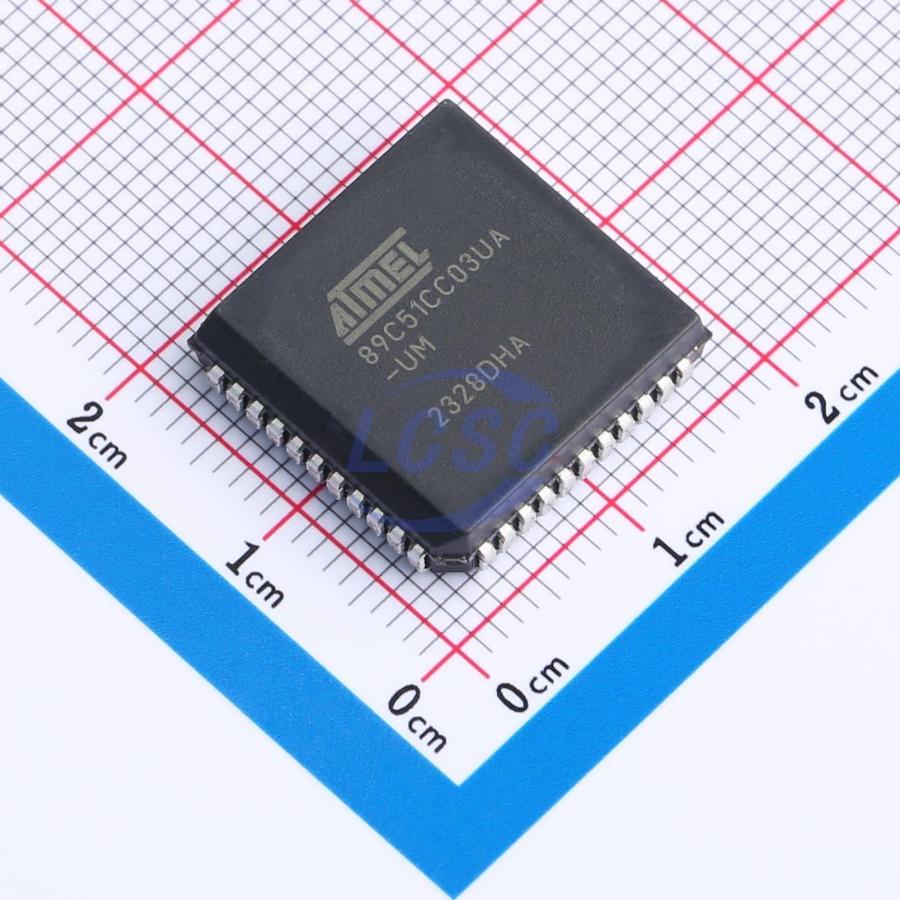

AT89C51CC03UA-SLSUM

The AT89C51CC03 is a member of the family of 8-bit microcontrollers dedicated to CAN network applications. In X2 mode a maximum external clock rate of 20 MHz reaches a 300 ns cycle time. Besides the full CAN controller AT89C51CC03 provides 64K Bytes of Flash memory including In-System Programming (ISP), 2K Bytes Boot Flash Memory, 2K Bytes EEPROM and 2048 byte ERAM. Primary attention is paid to the reduction of the electro-magnetic emission of AT89C51CC03.

Key features

• 80C51 Core Architecture
• 256 Bytes of On-chip RAM
• 2048 Bytes of On-chip ERAM
• 64K Bytes of On-chip Flash Memory – Data Retention: 10 Years at 85℃ – Read/Write Cycle: 100K
• 2K Bytes of On-chip Flash for Bootloader
• 2K Bytes of On-chip EEPROM Read/Write Cycle: 100K
• Integrated Power Monitor (POR: PFD) To Supervise Internal Power Supply
• 14-sources 4-level Interrupts
• Three 16-bit Timers/Counters
• Full Duplex UART Compatible 80C51
• High-speed Architecture – In Standard Mode: 40 MHz (Vcc 3V to 5.5V, both Internal and external code execution) 60 MHz (Vcc 4.5V to 5.5V and Internal Code execution only) – In X2 mode (6 Clocks/machine cycle) 20 MHz (Vcc 3V to 5.5V, both Internal and external code execution) 30 MHz (Vcc 4.5V to 5.5V and Internal Code execution only)
• Five Ports: ±4 Digital I/O Lines
• Five-channel 16-bit PCA with – PWM (8-bit) – High-speed Output – Timer and Edge Capture
• Double Data Pointer
• 21-bit WatchDog Timer (7 Programmable Bits)
• A 10-bit Resolution Analog to Digital Converter (ADC) with 8 Multiplexed Inputs
• SPI Interface, (PLCC52 and VPFP64 packages only)
• Full CAN Controller – Fully Compliant with CAN Rev 2.0A and 2.0B – Optimized Structure for Communication Management (Via SFR) – 15 Independent Message Objects – Each Message Object Programmable on Transmission or Reception – Individual Tag and Mask Filters up to 29-bit Identifier/Channel – 8-byte Cyclic Data Register (FIFO)/Message Object – 16-bit Status and Control Register/Message Object – 16-bit Time-Stamping Register/Message Object – CAN Specification 2.0 Part A or 2.0 Part B Programmable for Each Message Object – Access to Message Object Control and Data Registers Via SFR – Programmable Reception Buffer Length Up To 15 Message Objects – Priority Management of Reception of Hits on Several Message Objects at the Same Time (Basic CAN Feature) – Priority Management for Transmission – Message Object Overrun Interrupt – Supports – Time Triggered Communication – Autobaud and Listening Mode – Programmable Automatic Reply Mode – 1-Mbit/s Maximum Transfer Rate at 8 MHz (1) Crystal Frequency in X2 Mode – Readable Error Counters – Programmable Link to On-chip Timer for Time Stamping and Network Synchronization – Independent Baud Rate Prescaler – Data, Remote, Error and Overload Frame Handling
• On-chip Emulation Logic (Enhanced Hook System)
• Power Saving Modes – Idle Mode – Power-down Mode
• Power Supply: 3 volts to 5.5 volts
• Temperature Range: Industrial (-40℃ to +85℃), Automotive (-40℃ to +125℃)
• Packages: VQFP44, PLCC44, VQFP64, PLCC52
