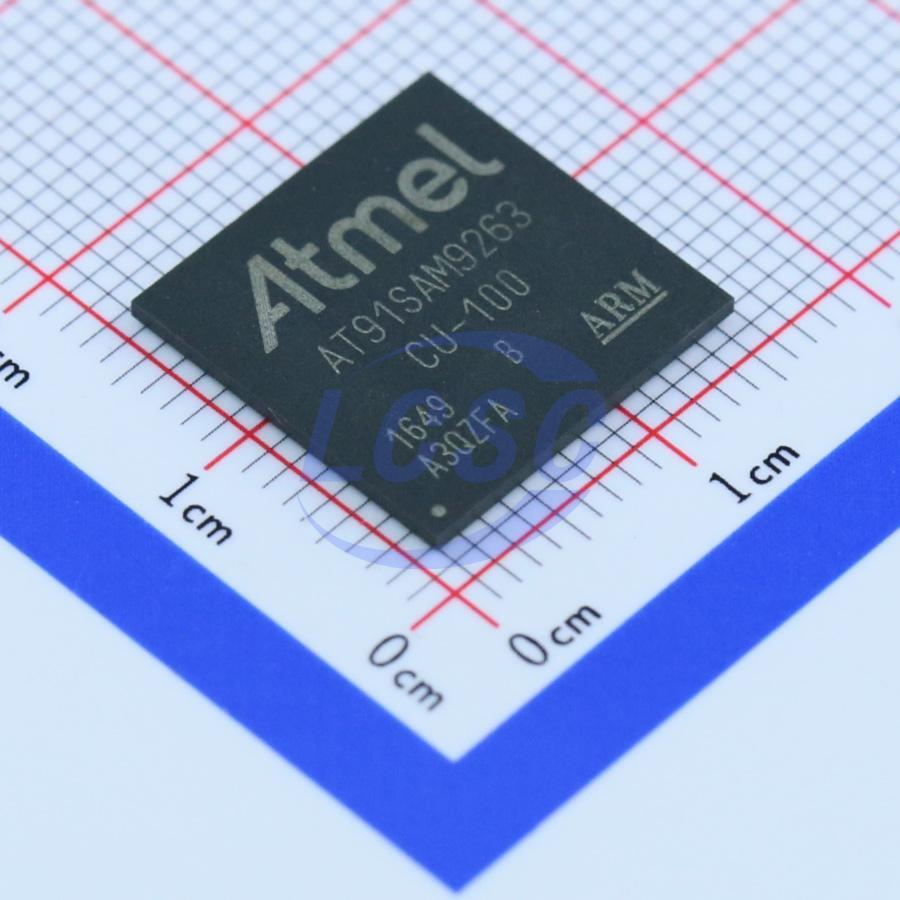

AT91SAM9263B-CU-100

The AT91SAM9263 32-bit microcontroller, based on the ARM926EJ-S processor, is architectured on a 9-layer matrix, allowing a maximum internal bandwidth of nine 32-bit buses. It also features two independent external memory buses, EBI0 and EBI1, capable of interfacing with a wide range of memory devices and an IDE hard disk. Two external buses prevent bottlenecks, thus guaranteeing maximum performance. The AT91SAM9263 embeds an LCD Controller supported by a Two D Graphics Controller and a 2-channel DMA Controller, and one Image Sensor Interface. It also integrates several standard peripherals, such as USART, SPI, TWI, Timer Counters, PWM Generators, Multimedia Card interface and one CAN Controller. When coupled with an external GPS engine, the AT91SAM9263 provides the ideal solution for navigation systems.

Key features

• Incorporates the ARM926EJ-S ARM Thumb Processor
• DSP Instruction Extensions, Jazelle Technology for Java Acceleration
• 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer
• 220 MIPS at 200 MHz
• Memory Management Unit
• EmbeddedICE, Debug Communication Channel Support
• Mid-level Implementation Embedded Trace Macrocell
• Bus Matrix – Nine 32-bit-layer Matrix, Allowing a Total of 28.8 Gbps of On-chip Bus Bandwidth – Boot Mode Select Option, Remap Command
• Embedded Memories
• One 128 Kbyte Internal ROM, Single-cycle Access at Maximum Bus Matrix Speed
• One 80 Kbyte Internal SRAM, Single-cycle Access at Maximum Processor or Bus Matrix Speed
• One 16 Kbyte Internal SRAM, Single-cycle Access at Maximum Bus Matrix Speed
• Dual External Bus Interface (EBI0 and EBI1)
• EBI0 Supports SDRAM, Static Memory, ECC-enabled NAND Flash and CompactFlash
• EBI1 Supports SDRAM, Static Memory and ECC-enabled NAND Flash
• DMA Controller (DMAC)
• Acts as one Bus Matrix Master
• Embeds 2 Unidirectional Channels with Programmable Priority, Address Generation, Channel Buffering and Control
• Twenty Peripheral DMA Controller Channels (PDC)
• LCD Controller
• Supports Passive or Active Displays
• Up to 24 bits per Pixel in TFT Mode, Up to 16 bits per Pixel in STN Color Mode
• Up to 16M Colors in TFT Mode, Resolution Up to 2048x2048, Supports Virtual Screen Buffers
• Two D Graphics Accelerator
• Line Draw, Block Transfer, Clipping, Commands Queuing
• Image Sensor Interface
• ITU-R BT. 601/656 External Interface, Programmable Frame Capture Rate
• 12-bit Data Interface for Support of High Sensibility Sensors
• SAV and EAV Synchronization, Preview Path with Scaler, YCbCr Format
• USB 2.0 Full Speed (12 Mbits per second) Host Double Port
• Dual On-chip Transceivers
• Integrated FIFOs and Dedicated DMA Channels
• USB 2.0 Full Speed (12 Mbits per second) Device Port
• On-chip Transceiver, 2,432-byte Configurable Integrated DPRAM
• Ethernet MAC 10/100 Base-T
• Media Independent Interface or Reduced Media Independent Interface
• 28-byte FIFOs and Dedicated DMA Channels for Receive and Transmit
• Fully-featured System Controller, including
• Reset Controller, Shutdown Controller
• Twenty 32-bit Battery Backup Registers for a Total of 80 Bytes
• Clock Generator and Power Management Controller
• Advanced Interrupt Controller and Debug Unit
• Periodic Interval Timer, Watchdog Timer and Double Real-time Timer
• Reset Controller (RSTC)
• Based on Two Power-on Reset Cells, Reset Source Identification and Reset Output Control
• Shutdown Controller (SHDWC)
• Programmable Shutdown Pin Control and Wake-up Circuitry
• Clock Generator (CKGR)
• 32768Hz Low-power Oscillator on Battery Backup Power Supply, Providing a Permanent Slow Clock
• 3 to 20 MHz On-chip Oscillator and Two Up to 240 MHz PLLs
• Power Management Controller (PMC)
• Very Slow Clock Operating Mode, Software Programmable Power Optimization Capabilities
• Four Programmable External Clock Signals
• Advanced Interrupt Controller (AIC)
• Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
• Two External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected
• Debug Unit (DBGU)
• 2-wire UART and Support for Debug Communication Channel, Programmable ICE Access Prevention
• Mode for General Purpose Two-wire UART Serial Communication
• Periodic Interval Timer (PIT)
• 20-bit Interval Timer plus 12-bit Interval Counter
• Watchdog Timer (WDT)
• Key-protected, Programmable Only Once, Windowed 16-bit Counter Running at Slow Clock
• Two Real-time Timers (RTT)
• 32-bit Free-running Backup Counter Running at Slow Clock with 16-bit Prescaler
• Five 32-bit Parallel Input/Output Controllers (PIOA, PIOB, PIOC, PIOD and PIOE)
• 160 Programmable I/O Lines Multiplexed with Up to Two Peripheral I/Os
• Input Change Interrupt Capability on Each I/O Line
• Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output
• One Part 2.0A and Part 2.0B-compliant CAN Controller
• 16 Fully-programmable Message Object Mailboxes, 16-bit Time Stamp Counter
• Two Multimedia Card Interface (MCI)
• SDCard/SDIO and MultiMediaCard Compliant
• Automatic Protocol Control and Fast Automatic Data Transfers with PDC
• Two SDCard Slots Support on eAch Controller
• Two Synchronous Serial Controllers (SSC)
• Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
• I²S Analog Interface Support, Time Division Multiplex Support
• High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
• One AC97 Controller (AC97C)
• 6-channel Single AC97 Analog Front End Interface, Slot Assigner
• Three Universal Synchronous/Asynchronous Receiver Transmitters (USART)
• Individual Baud Rate Generator, rDA Infrared Modulation/Demodulation, Manchester Encoding/Decoding
• Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
• Two Master/Slave Serial Peripheral Interface (SPI)
• 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects
• One Three-channel 16-bit Timer/Counters (TC)
• Three External
