MICROCHIP

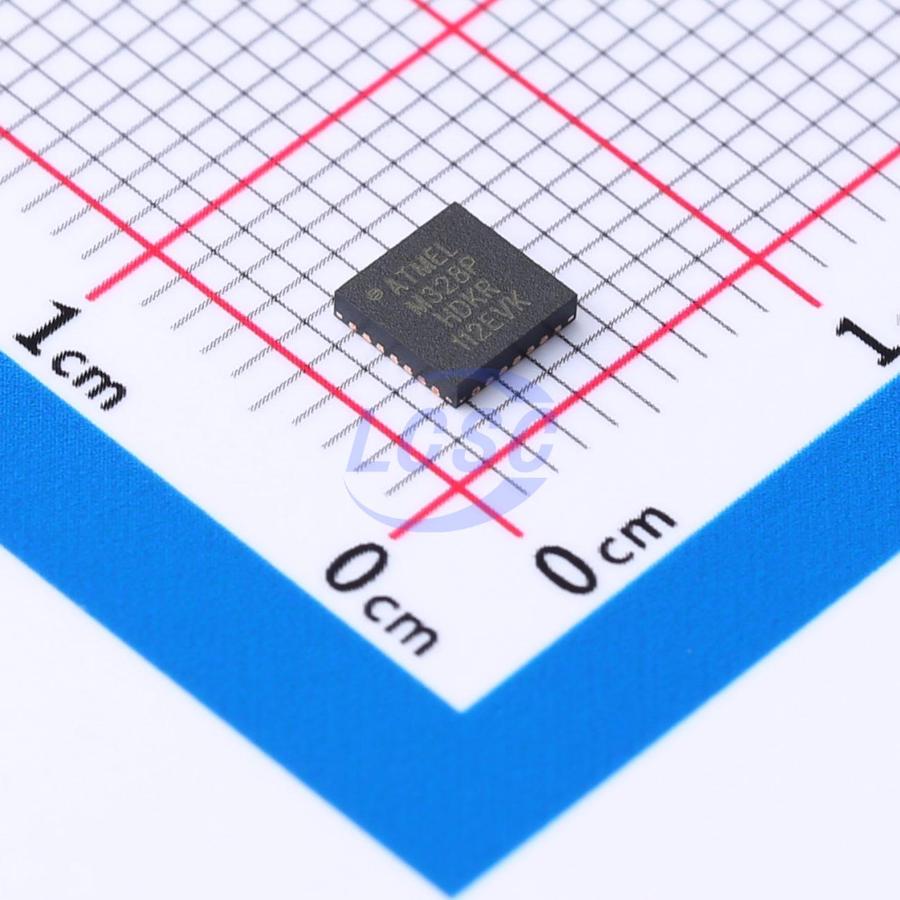

ATMEGA328P-MMHR

AVR 8 Bit 20MHz VQFN-28-EP(4x4) Microcontrollers RoHS

VQFN-28-EP(4x4)ROHS3 CompliantActive

Low-power CMOS 8-bit microcontroller

Manufacturer: MICROCHIP
Manufacturer part #: ATMEGA328P-MMHR
Store part #: C2651959
Package / case: VQFN-28-EP(4x4)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C2651959

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹720.51	₹720.51
10+	₹632.21	₹6,322.10
30+	₹559.84	₹16,795.20
100+	₹506.87	₹50,687.00
500+	₹482.45	₹2,41,225.00
1,000+	₹471.33	₹4,71,330.00

Quantity (min 1)

1 × ₹720.51

₹720.51

excl. GST

₹850.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 6,000 per reel

ATMEGA328P-MMHR

₹720.51 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of I/O: 23
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~5.5V
Program Memory Type: FLASH
EEPROM: 1KB
Program Storage Size: 32KB
CPU Core: AVR
Core Size: 8 Bit
CPU Maximum Speed: 20MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The ATmega48A/PA/88A/PA/168A/PA/328/P is a low power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture. By executing instructions in a single clock cycle, the devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.

Key features

High Performance, Low Power AVR* g -Bit Microcontroller Family
Advanced RISC Architecture
131 Powerful Instructions – Most Single Clock Cycle Execution
32x8 General Purpose Working Registers
Fully Static Operation
Up to 20 MIPS Throughput at 20MHz
On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory Segments
4/8/16/32KBytes of In-System Self-Programmable Flash program memory 一 256/512/512/1KBytes EEPROM 512/1K/1K/2KBytes Internal SRAM 一 Write/Erase Cycles: 10,000 Flash/100,000 EEPROM 一 Data retention: 20 years at 85℃/100 years at 25℃
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Programming Lock for Software Security
QTouch® library support
Capacitive touch buttons, sliders and wheels
QTouch and QMatrix™ acquisition
Up to 64 sense channels
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Six PWM Channels
8-channel 10-bit ADC in TQFP and VQFN package
Temperature Measurement
6-channel 10-bit ADC in SPDIP Package
Temperature Measurement
Programmable Serial USART
Master/Slave SPI Serial Interface
Byte-oriented 2-wire Serial Interface (Philips I²C compatible)
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
23 Programmable I/O Lines
28-pin SPDIP, 32-lead TQFP, 28-pad VQFN and 32-pad VQFN
Operating Voltage: 1.8 - 5.5V
Temperature Range: -40℃ to 85℃
Speed Grade: 0 - 4MHz@1.8 - 5.5V, 0 - 10MHz@2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
Power Consumption at 1MHz, 1.8V, 25℃ Active Mode: 0.2mA
Power-down Mode: 0.1μA
Power-save Mode: 0.75μA (Including 32kHz RTC)
