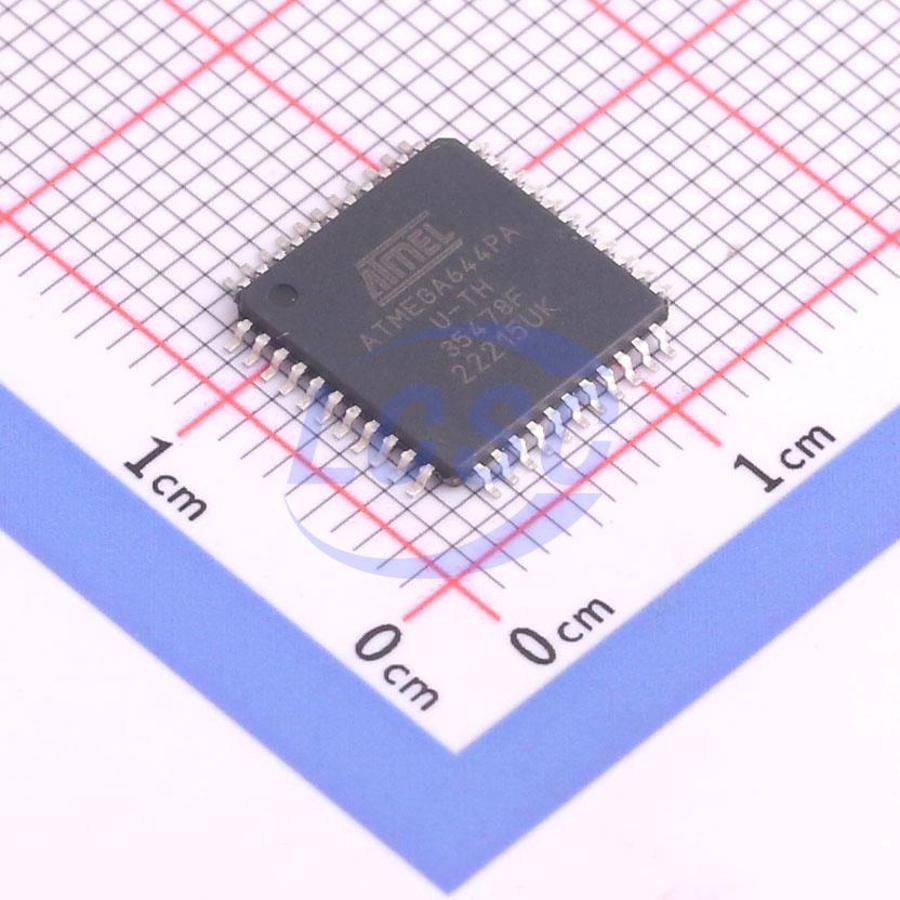

ATMEGA644PA-AUR

Atmel ATmega164A/164PA/324A/324PA/644A/644PA/1284/1284P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega164A/164PA/324A/324PA/644A/644PA/1284/1284P achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Key features

• High- performance, low- power 8- bit AtmelAVR Microcontroller
• Advanced RISC architecture
• 131 powerful instructions - most single- clock cycle execution
• 32 x 8 general purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On- chip 2- cycle multiplier
• High endurance non- volatile memory segments
• 16/32/64/128KBytes of In- System Self- programmable Flash program memory
• 512/1K/2K/4KBytes EEPROM
• 1/2/4/16KBytes Internal SRAM
• Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM
• Data retention: 20 years at 85°C/ 100 years at 25°C
• Optional Boot Code Section with Independent Lock Bits
• In- System Programming by On- chip Boot Program
• True Read- While- Write Operation
• Programming Lock for Software Security
• Atmel QTouch library support
• Capacitive touch buttons, sliders and wheels
• QTouch and QMatrix acquisition
• Up to 64 sense channels
• JTAG (IEEE std. 1149.1 Compliant) Interface
• Boundary- scan Capabilities According to the JTAG Standard
• Extensive On- chip Debug Support
• Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Two 8- bit Timer/Counters with Separate Prescaleers and Compare Modes
• One/two 16- bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
• Real Time Counter with Separate Oscillator
• Six PWM Channels
• 8- channel, 10- bit ADC
• Differential mode with selectable gain at 1x, 10x, or 200x
• Byte- oriented Two- wire Serial Interface
• Two Programmable Serial USART
• Master/Slave SPI Serial Interface
• Programmable Watchdog Timer with Separate On-chip Oscillator
• On-chip Analog Comparator
• Interrupt and Wake-up on Pin Change
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated RC Oscillator
• External and Internal Interrupt Sources
• Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
• 32 Programmable I/O Lines
• 40-pin PDIF, 44-lead TQFP, 44-pad VQFN/QFN/MLF
• 44-pad DRQFN
• 49-ball VFBGA
• Operating Voltages 1.8 - 5.5V
• 4MHz @ 1.8 - 5.5V
• 10MHz @ 2.7 - 5.5V
• 20MHz @ 4.5 - 5.5V
• Active: 0.4mA at 1MHz, 1.8V, 25°C
• Power-down Mode: 0.1 μA at 1MHz, 1.8V, 25°C
• Power-save Mode: 0.6 μA (Including 32kHz RTC) at 1MHz, 1.8V, 25°C
