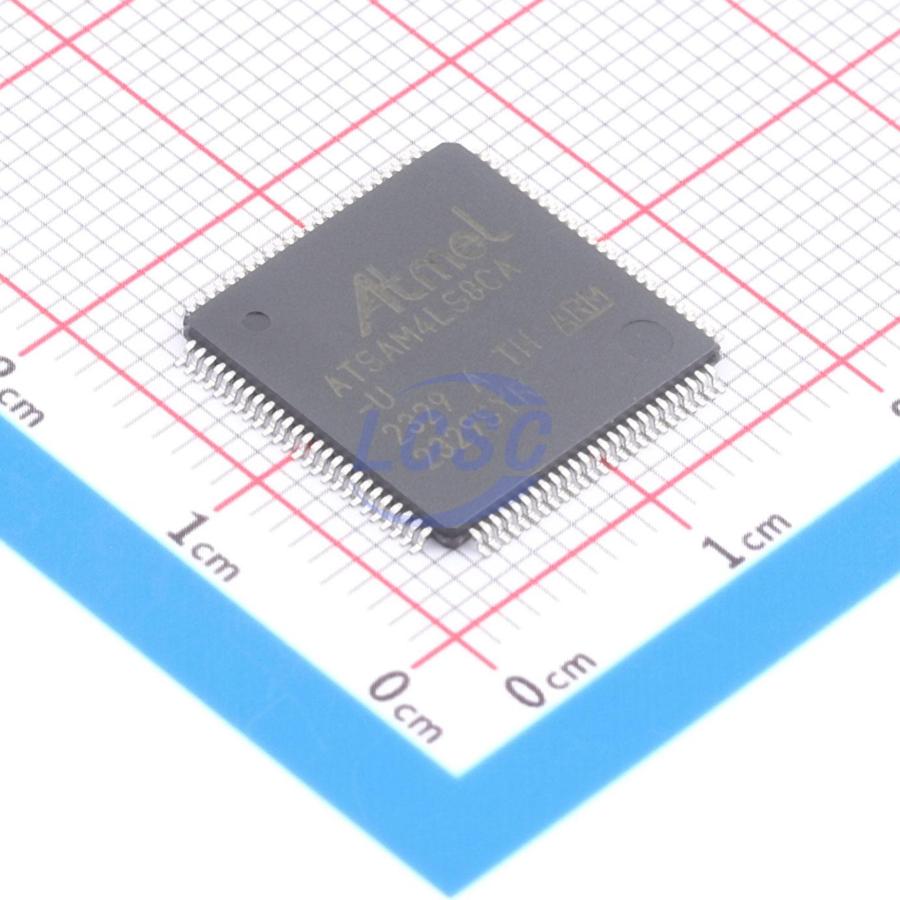

ATSAM4LS8CA-AU

Atmel's SAM4L series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM Cortex-M4 RISC processor running at frequencies up to 48MHz. The processor implements a Memory Protection Unit (MPU) and a fast and flexible interrupt controller for supporting modern and real-time operating systems.

Key features

• Core
• ARM Cortex-M4 running at up to 48MHz
• Memory Protection Unit (MPU)
• Thumb-2 instruction set
• Active mode downto several microamperes per megahertz with configurable voltage scaling
• High performance and efficiency: 28 coremark/mA
• Wait mode downto zero amperes with fast wake-up time (<1.5µs) supporting SleepWalking
• Full RAM and Logic Retention mode downto 1.5µA with fast wake-up time (<1.5µs)
• Ultra low power Backup mode with/without RTC downto 1.5/0.9µA
• Memories
• From 128 to 512Kbytes embedded Flash, 64-bit wide access, 0 wait-state capability up to 24MHz
• up to 64Kbytes embedded SRAM
• System Functions
• Embedded voltage linear and switching regulator for single supply operation
• Two Power-on-Reset and Two Brown-out Detectors (BOD)
• Quartz or ceramic resonator oscillators: 0.6 to 30MHz main power with Failure Detection and low power 32.768 kHz for RTC or device clock
• High precision 4/8/12MHz factory trimmed internal RC oscillator
• Slow Clock Internal RC oscillator as permanent low-power mode device clock
• High speed 80MHz internal RC oscillator
• Low power 32kHz internal RC oscillator
• PLL up to 240MHz for device clock and for USB
• Digital Frequency Locked Loop (DFLL) with wide input range
• Up to 16 peripheral DMA (PDCA) channels
• Peripherals
• USB 2.0 Device and Embedded Host: 12 Mbps, up to 8 bidirectional Endpoints and Multi-packet Ping-pong Mode. OnChip Transceiver
• Liquid Crystal Display (LCD) Module with Capacity up to 40 Segments and up to 4 Common Terminals
• One USART with ISO7816, IrDA, RS-485, SPI, Manchester and LIN Mode
• Three USART with SPI Mode
• One PicoUART for extended UART wake-up capabilities in all sleep modes
• Windowed Watchdog Timer (WDT)
• Asynchronous Timer (AST) with Real-time Clock Capability, Counter or Calendar Mode Supported
• Frequency Meter (FREQM) for Accurate Measuring of Clock Frequency
• Six 16-bit Timer/Counter (TC) Channels with capture, waveform, compare and PWM mode
• One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals
• Four Master and Two Slave Two-wire Interfaces (TWI), up to 3.4Mbit/s I²C-compatible
• One Advanced Encryption System (AES) with 128-bit key length
• One 16-channel ADC 300Ksps (ADC) with up to 12 Bits Resolution
• One DAC 500Ksps (DACC) with up to 10 Bits Resolution
• Four Analog Comparators (ACIFC) with Optional Window Detection
• Capacitive Touch Module (CATB) supporting up to 32 buttons
• Audio Bitstream DAC (ABDACB) Suitable for Stereo Audio
• Inter-IC Sound (IISC) Controller, Compliant with Inter-IC Sound (I²S) Specification
• Peripheral Event System for Direct Peripheral to Peripheral Communication
• 32-bit Cyclic Redundancy Check Calculation Unit (CRCCU)
• Random generator (TRNG)
• Parallel Capture Module (PARC)
• Glue Logic Controller (GLOC)
• I/O
• Up to 75 I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and slew-rate control
• Up to Six High-drive I/O Pins
• Single 1.68 - 3.6V Power Supply
