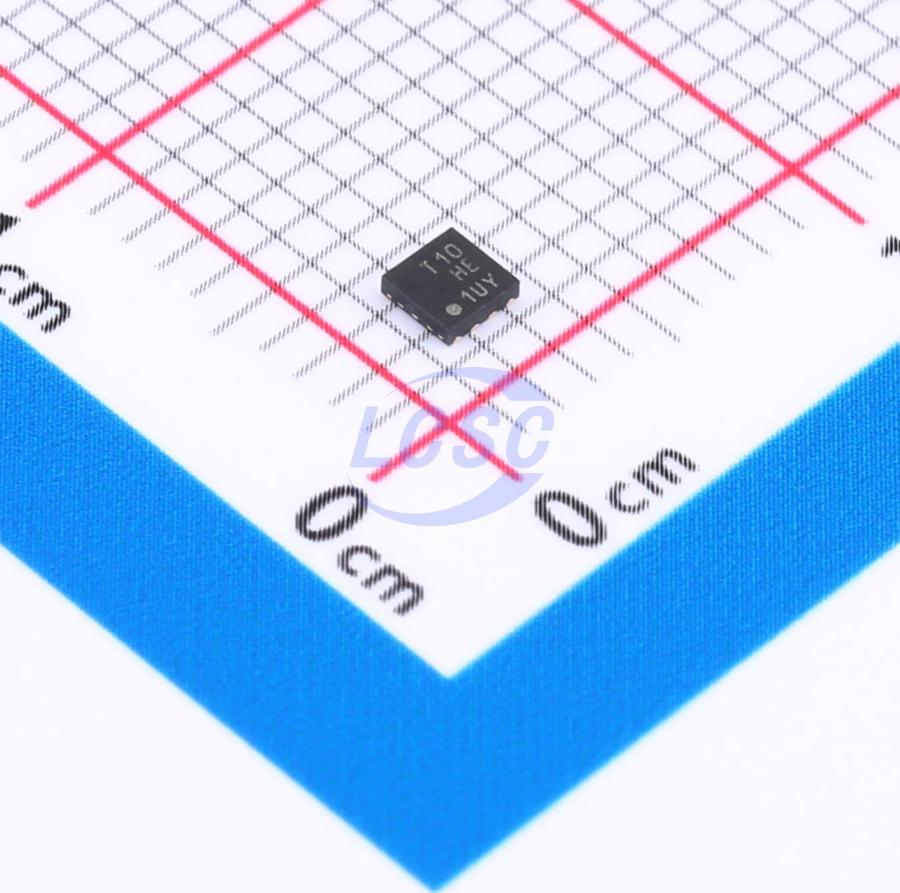

ATTINY10-MAHR

The Atmel ATtiny4/5/9/10 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny4/5/9/10 achieves throughputs close to 1 MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.

Key features

• High Performance, Low Power AVR 8-Bit Microcontroller
• Advanced RISC Architecture
• 54 Powerful Instructions
• Most Single Clock Cycle Execution
• 16x8 General Purpose Working Registers
• Fully Static Operation
• Up to 12 MIPS Throughput at 12 MHz
• Non-volatile Program and Data Memorie
• 512/1024 Bytes of In-System Programmable Flash Program Memory
• 32 Bytes Internal SRAM
• Flash Write/Erase Cycles: 10,000
• Data Retention: 20 Years at 85℃ / 100 Years at 25℃
• QTouch Library Support for Capacitive Touch Sensing (1 Channel)
• One 16-bit Timer/Counter with Prescaler and Two PWM Channels
• Programmable Watchdog Timer with Separate On-chip Oscillator
• 4-channel, 8-bit Analog to Digital Converter (ATtiny5/10, only)
• On-chip Analog Comparator
• In-System Programmable (at 5V, only)
• External and Internal Interrupt Sources
• Low Power Idle, ADC Noise Reduction, and Power-down Modes
• Enhanced Power-on Reset Circuit
• Programmable Supply Voltage Level Monitor with Interrupt and Reset
• Internal Calibrated Oscillator
• Four Programmable I/O Lines
• 6-pin SOT and 8-pad UDFN
• Operating Voltage: 1.8 - 5.5V
• Programming Voltage: 5V
• Speed Grade: 0 - 4 MHz @ 1.8 - 5.5V 0 - 8 MHz @ 2.7 - 5.5V 0 - 12 MHz @ 4.5 - 5.5V
• Industrial and Extended Temperature Ranges
• Low Power Consumption Active Mode: 200μA at 1MHz and 1.8V Idle Mode: 25μA at 1MHz and 1.8V Power-down Mode: <0.1μA at 1.8V
