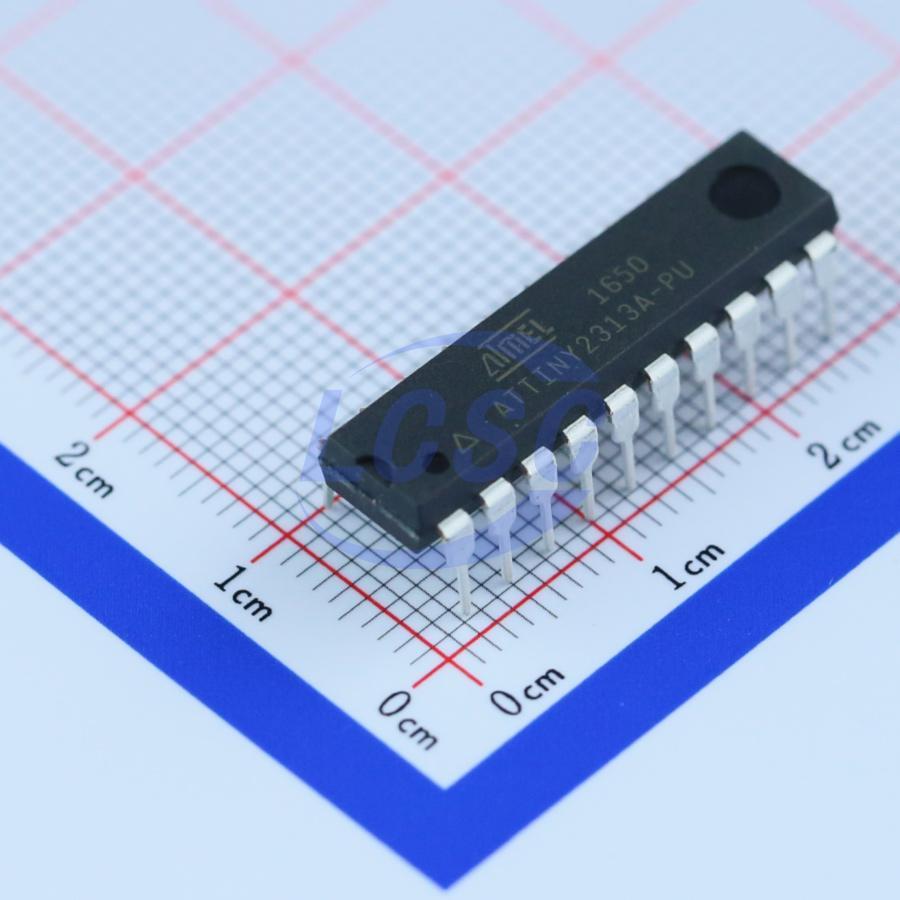

ATTINY2313A-PU

ATtiny2313A/4313 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny2313A/4313 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

Key features

• High Performance, Low Power AVR 8- Bit Microcontroller
• Advanced RISC Architecture
• 120 Powerful Instructions
• Most Single Clock Cycle Execution
• 32 x 8 General Purpose Working Registers
• Fully Static Operation
• Up to 20 MIPS Throughput at 20 MHz
• 2/4K Bytes of In-System Self Programmable Flash
• Endurance 10,000 Write/Erase Cycles
• 128/256 Bytes In-System Programmable EEPROM
• Endurance: 100,000 Write/Erase Cycles
• 128/256 Bytes Internal SRAM
• Programming Lock for Flash Program and EEPROM Data Security
• One 8- bit Timer/Counter with Separate Prescaler and Compare Mode
• One 16- bit Timer/Counter with Separate Prescaler, Compare and Capture Modes
• Four PWM Channels
• On- chip Analog Comparator
• Programmable Watchdog Timer with On- chip Oscillator
• USI - Universal Serial Interface
• Full Duplex USART
• debugWIRE On-chip Debugging
• In-System Programmable via SPI Port
• External and Internal Interrupt Sources
• Low-power Idle, Power-down, and Standby Modes
• Enhanced Power-on Reset Circuit
• Programmable Brown-out Detection Circuit
• Internal Calibrated Oscillator
• 18 Programmable I/O Lines
• 20-pin PDIP, 20-pin SOIC, 20-pad MLF/VQFN
• Operating Voltage 1.8 - 5.5V
• 0 - 4 MHz @ 1.8 - 5.5V
• 0 - 10 MHz @ 2.7 - 5.5V
• 0 - 20 MHz @ 4.5 - 5.5V
• Industrial Temperature Range: - 40°C to +85°C
• 190 μA at 1.8V and 1MHz (Active Mode)
• 24 μA at 1.8V and 1MHz (Idle Mode)
• 0.1 μA at 1.8V and +25°C (Power- down Mode)
• 8- bit AVR Microcontroller with 2/4K Bytes In- System Programmable Flash
