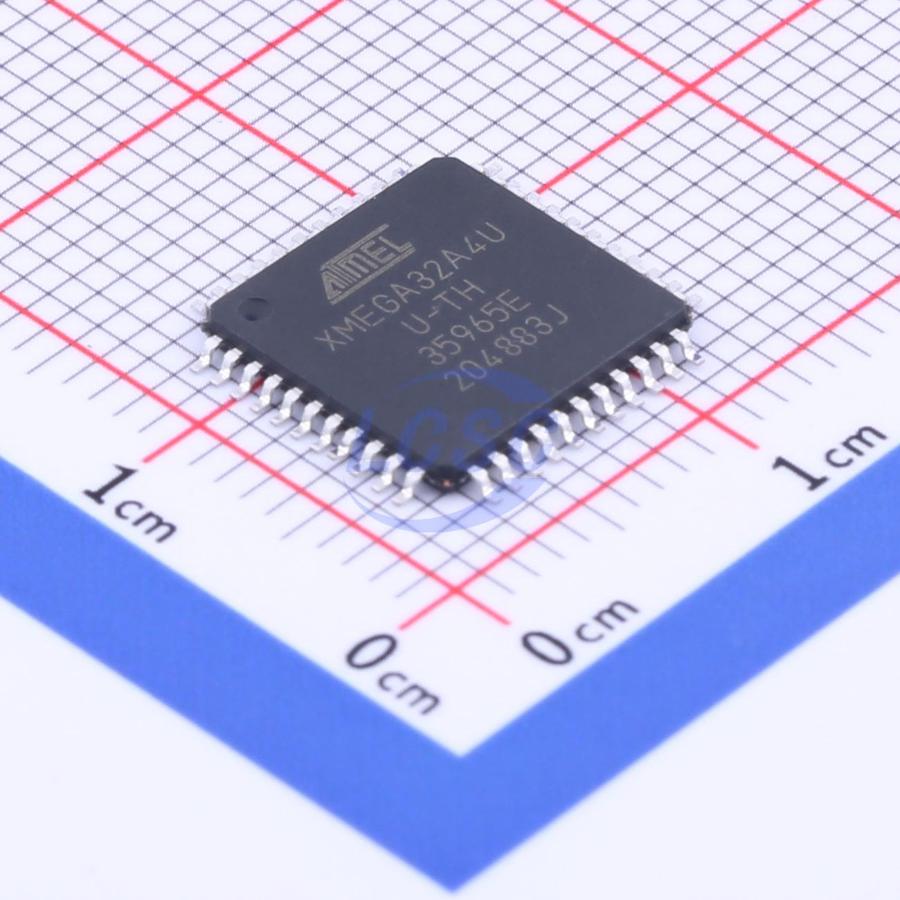

ATXMEGA32A4U-AU

The AVR XMEGA is a family of low power, high performance, and peripheral rich 8/16 -bit microcontrollers based on the AVR enhanced RISC architecture. By executing instructions in a single clock cycle, the AVR XMEGA devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.

Key features

• High-performance, low-power AVR XMEGA 8/16-bit Microcontroller
• Nonvolatile program and data memories
• 16K - 128KB of in-system self-programmable flash
• 4K - 8KB boot section
• 1K - 2KB EEPROM
• 2K - 8KB internal SRAM
• Peripheral Features
• Three timer/counters with 4 output compare or input capture channels
• Two timer/counters with 2 output compare or input capture channels
• High-resolution extensions on all timer/counters
• Advanced waveform extension (AWeX) on one timer/counter
• One USB device interface
• Two Two-wire interfaces with dual address match (I²C and SMBus compatible)
• Two serial peripheral interfaces (SPIs)
• 16-bit real time counter (RTC) with separate oscillator
• One twelve-channel, 12-bit, 2msps Analog to Digital Converter
• One two-channel, 12-bit, 1msps Digital to Analog Converter
• Two Analog Comparators with window compare function, and current sources
• External interrupts on all general purpose I/O pins
• Programmable watchdog timer with separate on-chip ultra low power oscillator
• QTouch library support
• Capacitive touch buttons, sliders and wheels
• Power-on reset and programmable brown-out detection
• Internal and external clock options with PLL and prescaler
• Programmable multilevel interrupt controller
• Five sleep modes
• Programming and debug interfaces
• PDI (program and debug interface)
• I/O and packages
• 34 Programmable I/O pins
• 44 - lead TQFP
• 44 - pad VQFN
• 49 - ball VFBGA
• Operating voltage
• 1.6 – 3.6V
• Operating frequency
• 0 – 12MHz from 1.6V
• 0 – 32MHz from 2.7V
