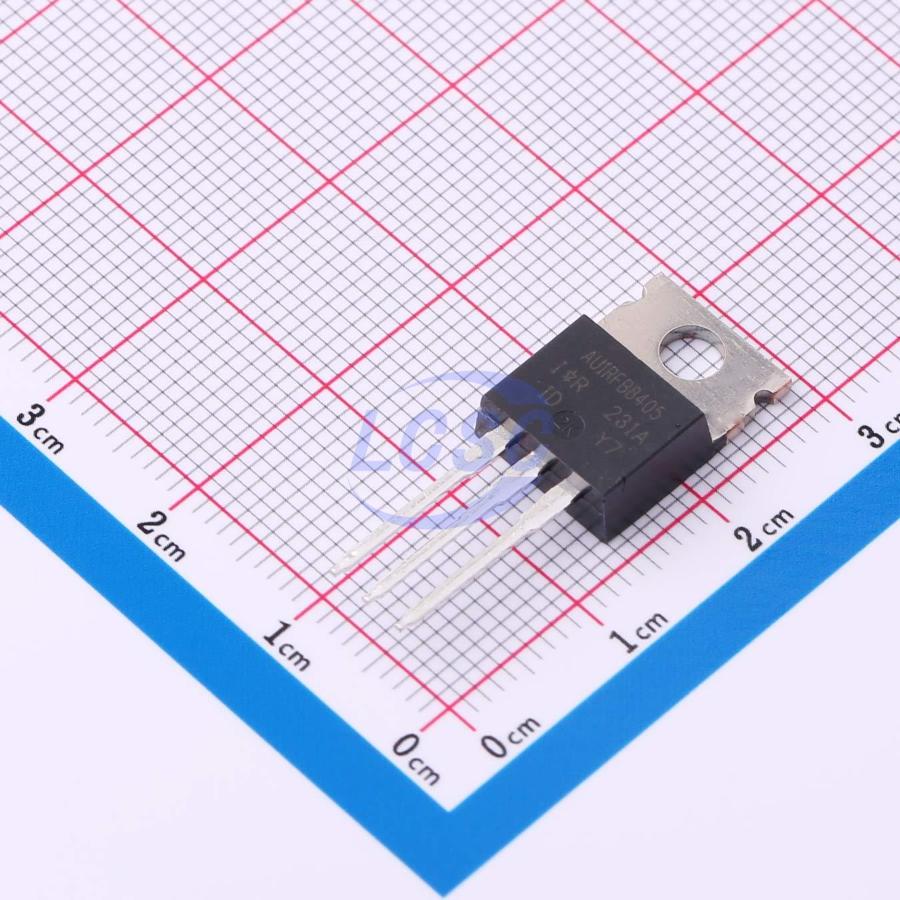

AUIRFB8405
N-Channel 40V 185A 163W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 40V 185A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRFB8405
- Store part #
- C533303
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C533303
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹563.12 | ₹563.12 |
1 × ₹563.12
₹563.12
excl. GST
₹664.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
AUIRFB8405
₹563.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 754pF
- Ciss-Input Capacitance
- 5.193nF
- Pd - Power Dissipation
- 163W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 185A
- Reverse Transfer Capacitance (Crss)
- 519pF
- RDS(on)
- 2.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 161nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175c junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and wide variety of other applications.
Applications
- Electric Power Steering (EPS)
- Battery Switch
- Start/Stop Micro Hybrid Heavy Loads DC-DC Applications
Key features
- Advanced Process Technology New Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free, RoHS Compliant
- Automotive Qualified
