VISHAYDatasheet (PDF)

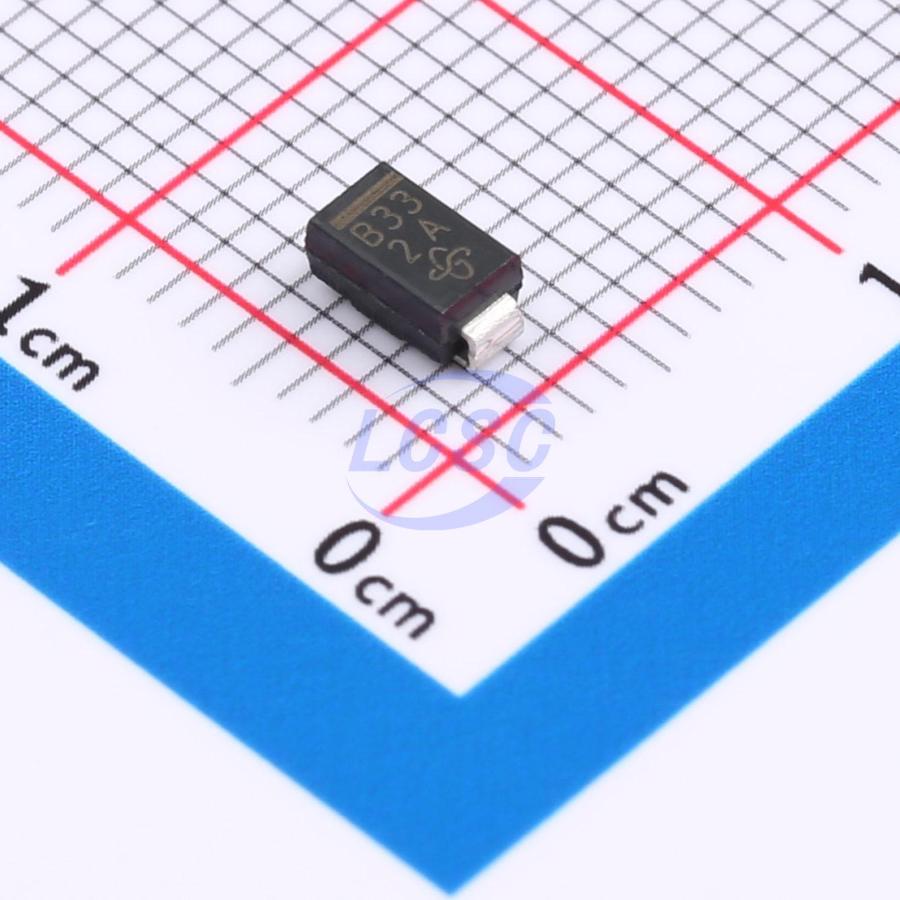

B330LA-E3/61T
Diode 1 Independent 30V 3A Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- B330LA-E3/61T
- Store part #
- C3758459
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C3758459
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.94 | ₹184.70 |
| 50+ | ₹29.32 | ₹1,466.00 |
| 150+ | ₹26.06 | ₹3,909.00 |
| 500+ | ₹21.99 | ₹10,995.00 |
| 1,800+ | ₹20.18 | ₹36,324.00 |
| 5,400+ | ₹19.09 | ₹1,03,086.00 |
5 × ₹36.94
₹184.70
excl. GST
₹217.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
B330LA-E3/61T
₹184.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@3A
- Reverse Leakage Current (Ir)
- 500uA@30V
- Non-Repetitive Peak Forward Surge Current
- 65A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Applications
- For use in low voltage, high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| B330LA-M3/61T#C3758889VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 176 | ₹120.49 · 176 in stock | View | |
 | CDBA340-HF#C2885988Comchip · SMA(DO-214AC) | Comchip | SMA(DO-214AC) | 10,830 | ₹16.18 · 10,830 in stock | View |
 | B340A-E3/61T#C15570VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 34,690 | ₹13.02 · 34,690 in stock | View |
 | B340A-M3/61T#C3758997VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 234 | ₹114.92 · 234 in stock | View |
 | B340A-E3/5AT#C5358731VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 4,560 | ₹11.60 · 4,560 in stock | View |
