NexperiaDatasheet (PDF)

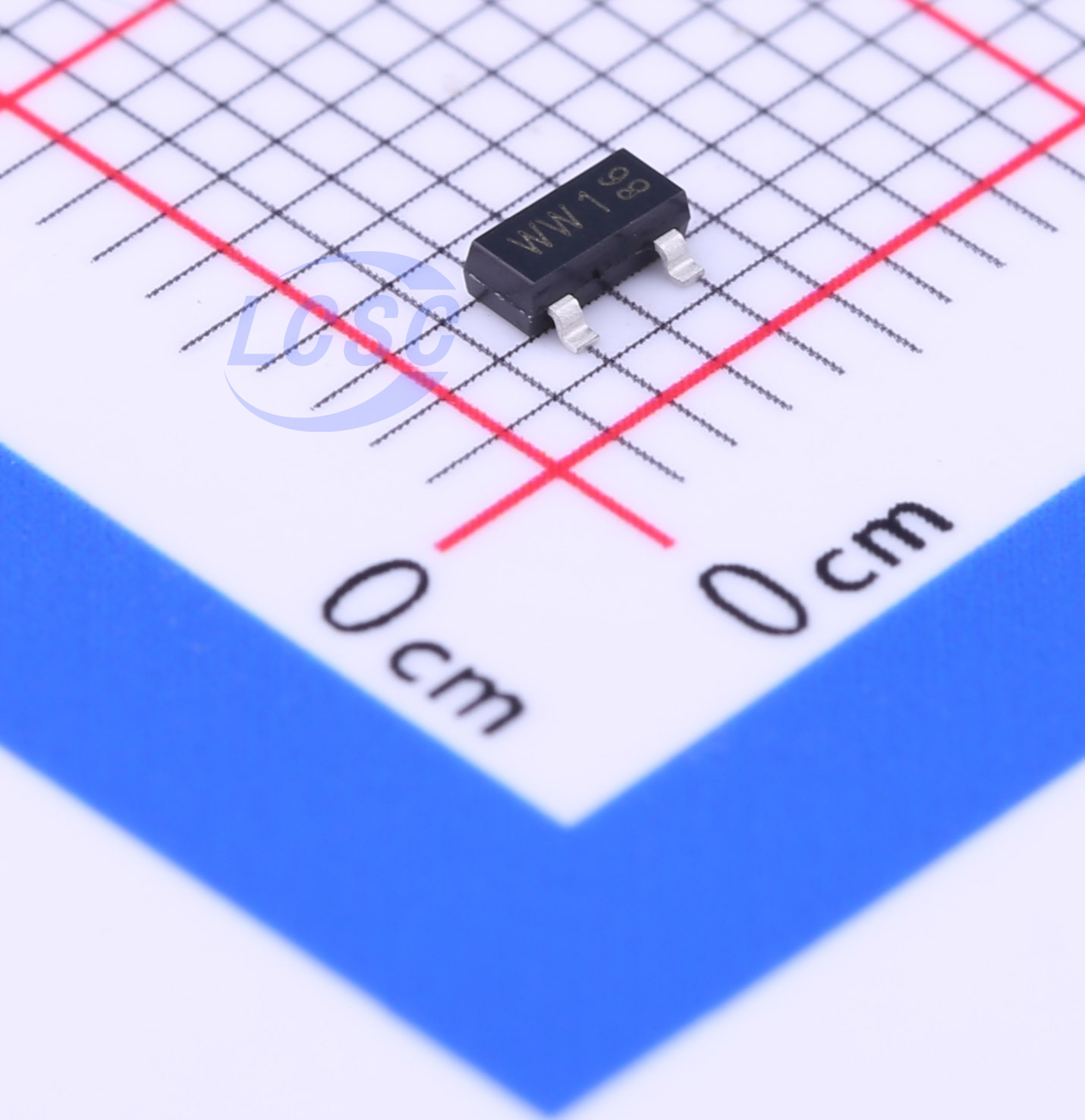

BAT54C,215
Diode Array 1 Pair Common Cathode 30V 200mA Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
DIODE ARR SCHOTTKY 30V SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- BAT54C,215
- Store part #
- C37704
- Package / case
- SOT-23
- Category
- Diode Arrays
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,33,100 in stock
#C37704
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.38 | ₹119.00 |
| 500+ | ₹1.81 | ₹905.00 |
| 3,000+ | ₹1.55 | ₹4,650.00 |
| 6,000+ | ₹1.36 | ₹8,160.00 |
| 24,000+ | ₹1.28 | ₹30,720.00 |
| 51,000+ | ₹1.23 | ₹62,730.00 |
50 × ₹2.38
₹119.00
excl. GST
₹140.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT54C,215
₹119.00 for 50 + GST
Specifications
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Diode Configuration
- 1 Pair Common Cathode
- Current - Rectified
- 200mA
- Voltage - DC Reverse(Vr)
- 30V
- Reverse Leakage Current (Ir)
- 2uA@25V
- Voltage - Forward(Vf@If)
- 800mV@100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.035 g
Overview
Planar Schottky barrier diode with integrated guard ring for stress protection, housed in a small SOT23 (TO-236AB) SMD plastic package.
Applications
- Ultra-high-speed switching
- Line termination
- Voltage clamping
- Reverse polarity protection
Key features
- Low forward voltage
- Low capacitance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBAT54CLT1G#C124141onsemi · SOT-23 | onsemi | SOT-23 | 2,050 | ₹23.68 · 2,050 in stock | View |
 | BAT54C-7-F#C134405DIODES · SOT-23 | DIODES | SOT-23 | 13,655 | ₹19.21 · 13,655 in stock | View |
 | BAT54CLT1G#C14308onsemi · SOT-23 | onsemi | SOT-23 | 2,42,380 | ₹4.10 · 2,42,380 in stock | View |
 | BAT54C#C171429Shikues · SOT-23 | Shikues | SOT-23 | 2,650 | ₹2.24 · 2,650 in stock | View |
 | BAT54C#C22458956ALJ · SOT-23 | ALJ | SOT-23 | 40,550 | ₹1.53 · 40,550 in stock | View |
