ROHMDatasheet (PDF)

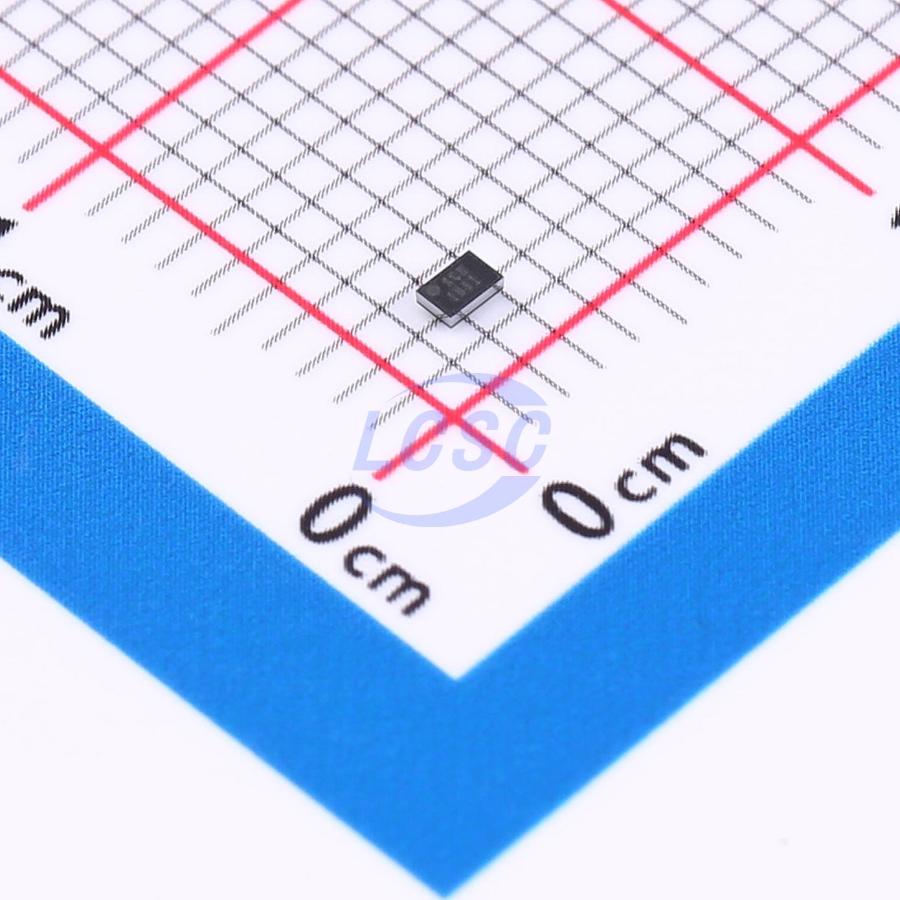

BD2204GUL-E2
1 Channel 500mA UFBGA-6
UFBGA-6ROHS3 CompliantActive
IC PWR SWTCH 1 CHAN UFBGA-6
- Manufacturer
- ROHM
- Manufacturer part #
- BD2204GUL-E2
- Store part #
- C314699
- Package / case
- UFBGA-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C314699
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.08 | ₹170.40 |
| 50+ | ₹27.24 | ₹1,362.00 |
| 150+ | ₹24.32 | ₹3,648.00 |
| 500+ | ₹20.65 | ₹10,325.00 |
| 3,000+ | ₹19.02 | ₹57,060.00 |
| 6,000+ | ₹18.05 | ₹1,08,300.00 |
5 × ₹34.08
₹170.40
excl. GST
₹201.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2204GUL-E2
₹170.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Reverse current blocking;Output discharge function;Over temperature protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 500mA
- Operating Voltage
- 1.2V~2.4V;2.7V~4.5V
- RDS(on)
- 120mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
BD2204GUL is a high-end switch IC with two built-in MOSFET circuits. The on-resistance reaches 120mΩ (typical). The 3.3V and 1.8V power supplies for memory cards can be selected via the SEL pin. In addition, it integrates a simultaneous turn-on prevention function during power switching, a reverse current protection function to prevent reverse current flow from output to input during power-off, and a discharge circuit for releasing charge at the output.
Applications
- Digital cameras
- Digital camcorders
- SD card slots
Key features
- Integrated dual-channel low on-resistance (typical = 120mΩ) N-channel MOSFET.
- Selectable 3.3V and 1.8V output.
- Continuous current load 0.5A.
- Reverse current protection when power is off.
- Prevents simultaneous conduction of VIN1 and VIN2.
- Output discharge circuit.
- Thermal shutdown.
- Active-high control logic.
- VCSP50L1 package.
