ROHMDatasheet (PDF)

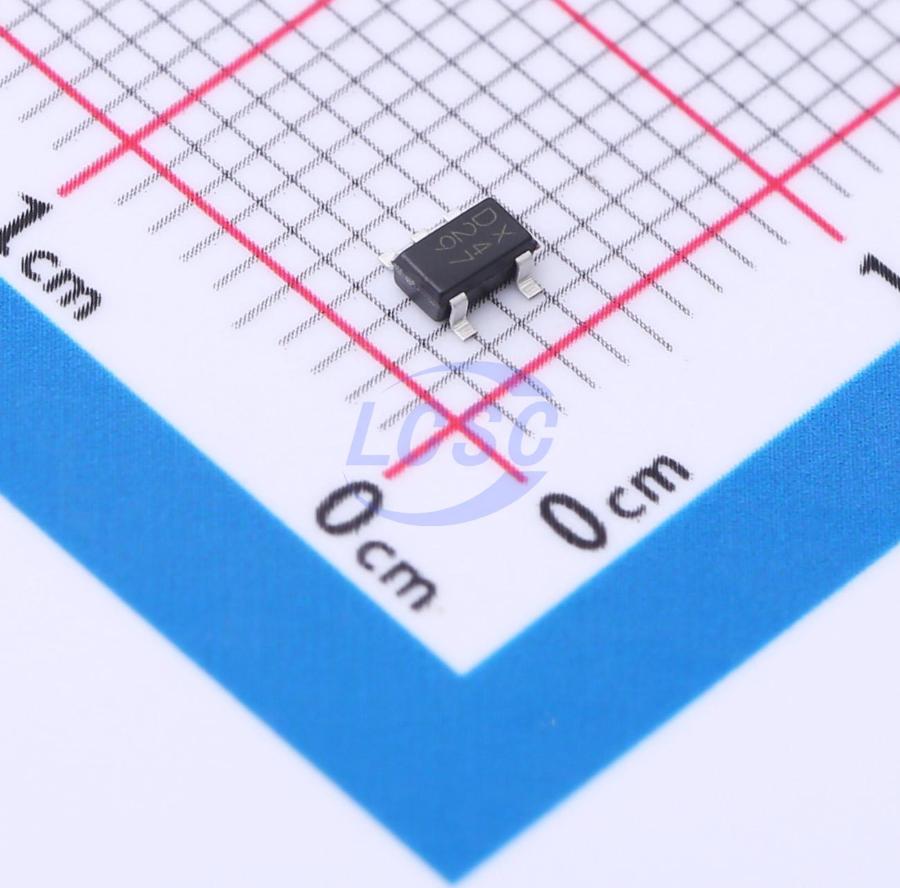

BD2220G-TR
1 Active High 500mA High Side Switch SSOP-5 Power Distribution Switches, Load Drivers RoHS
SSOP-5ROHS3 CompliantActive
1ch Small Package High Side Switch ICs, 0.75A Current Limit Latch Off
- Manufacturer
- ROHM
- Manufacturer part #
- BD2220G-TR
- Store part #
- C5362383
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C5362383
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.25 | ₹226.25 |
| 50+ | ₹35.51 | ₹1,775.50 |
| 150+ | ₹31.34 | ₹4,701.00 |
| 500+ | ₹26.13 | ₹13,065.00 |
| 3,000+ | ₹23.81 | ₹71,430.00 |
| 6,000+ | ₹22.42 | ₹1,34,520.00 |
5 × ₹45.25
₹226.25
excl. GST
₹266.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2220G-TR
₹226.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Soft-start;Reverse current blocking;Latch protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 500mA
- RDS(on)
- 160mΩ
- Operating Voltage
- 2.7V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
BD2220G and BD2221G are low ON-Resistance N-Channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2220G and BD2221G are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start.
Applications
- USB hub in consumer appliances
- PC
- PC peripheral equipment
Key features
- Low ON-Resistance (Typ 160mΩ) N-Channel MOSFET
- Built-in Over-Current Detection (Output OFF-Latch Operation)
- Thermal Shutdown
- Open-Drain Fault Flag Output
- Flag Output Delay
- Under-Voltage Lockout
- Soft-Start Circuit
- Control Input Logic Active-High : BD2220G V Active-Low : BD2221G
- Reverse Current Protection when Power Switch Off
