ROHMDatasheet (PDF)

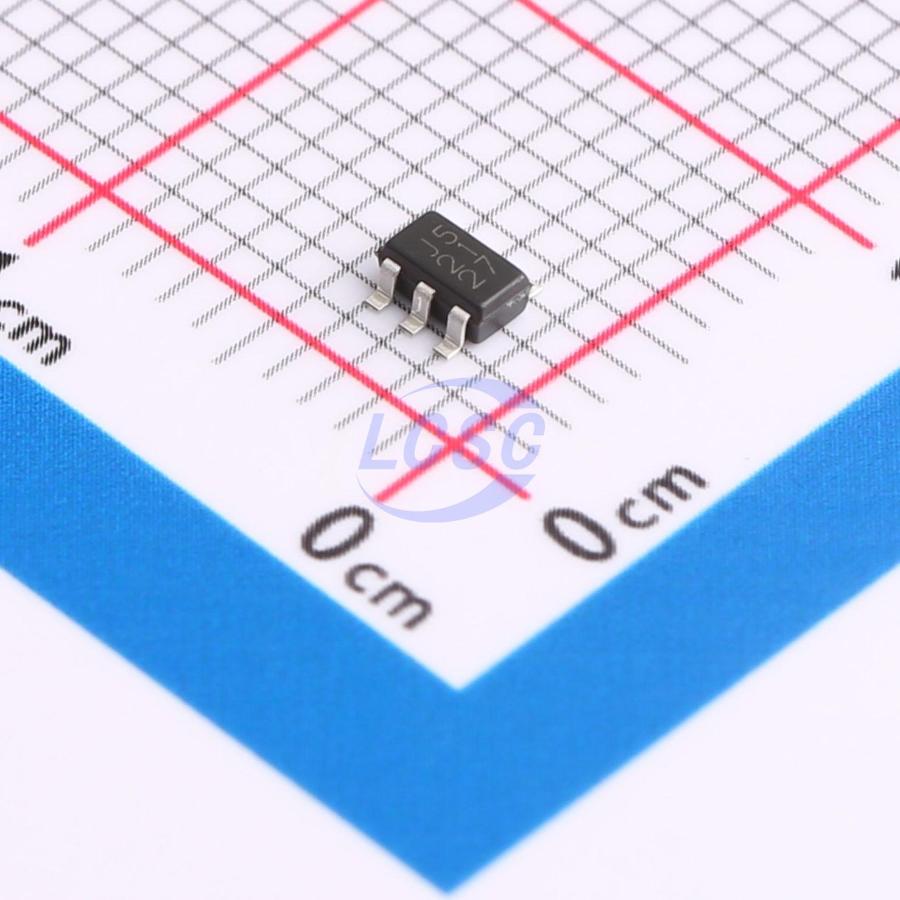

BD2246G-GTR
1 Active High 630mA High Side Switch SSOP-5-1.6mm Power Distribution Switches, Load Drivers RoHS
SSOP-5-1.6mmROHS3 CompliantActive
1 Channel Compact High Side Switch ICs
- Manufacturer
- ROHM
- Manufacturer part #
- BD2246G-GTR
- Store part #
- C509821
- Package / case
- SSOP-5-1.6mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,973 in stock
#C509821
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.81 | ₹56.81 |
| 10+ | ₹44.02 | ₹440.20 |
| 30+ | ₹38.38 | ₹1,151.40 |
| 100+ | ₹31.66 | ₹3,166.00 |
| 500+ | ₹28.63 | ₹14,315.00 |
| 1,000+ | ₹26.67 | ₹26,670.00 |
1 × ₹56.81
₹56.81
excl. GST
₹67.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2246G-GTR
₹56.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 630mA
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 110mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
BD2246G and BD2247G are low ON-Resistance high-side power switches N-Channel MOSFETs for Universal Serial Bus (USB) applications. These ICs have built-in over-current protection, thermal shutdown, under-voltage lockout and soft-start.
Applications
- USB Hub in Consumer Appliances, PC, PC Peripheral Equipment, and so forth
Key features
- Built-in Low ON-Resistance (Typ 110mΩ)
- N-Channel MOSFET
- Over-Current Detection
- Thermal Shutdown
- Open-Drain Fault Flag Output
- Flag Output Delay
- Under-Voltage Lockout
- Soft-Start Circuit
- Output Discharge Function
- Reverse Current Protection when Power Switch Off
- Control Input Logic Active-High: BD2246G Active-Low: BD2247G
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD2232G-GTR#C308588ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | 65 | ₹44.36 · 65 in stock | View |
 | AP2171WG-7#C110466DIODES · SOT-25-5 | DIODES | SOT-25-5 | 14,960 | ₹25.76 · 14,960 in stock | View |
 | AP2171AW-7#C2149782DIODES · SOT-25 | DIODES | SOT-25 | 45 | ₹25.60 · 45 in stock | View |
 | AP2171DWG-7#C2680322DIODES · SOT-23-5 | DIODES | SOT-23-5 | 145 | ₹53.21 · 145 in stock | View |
 | AP2191WG-7#C141321DIODES · SOT-25-5 | DIODES | SOT-25-5 | 155 | ₹36.86 · 155 in stock | View |
