ROHMDatasheet (PDF)

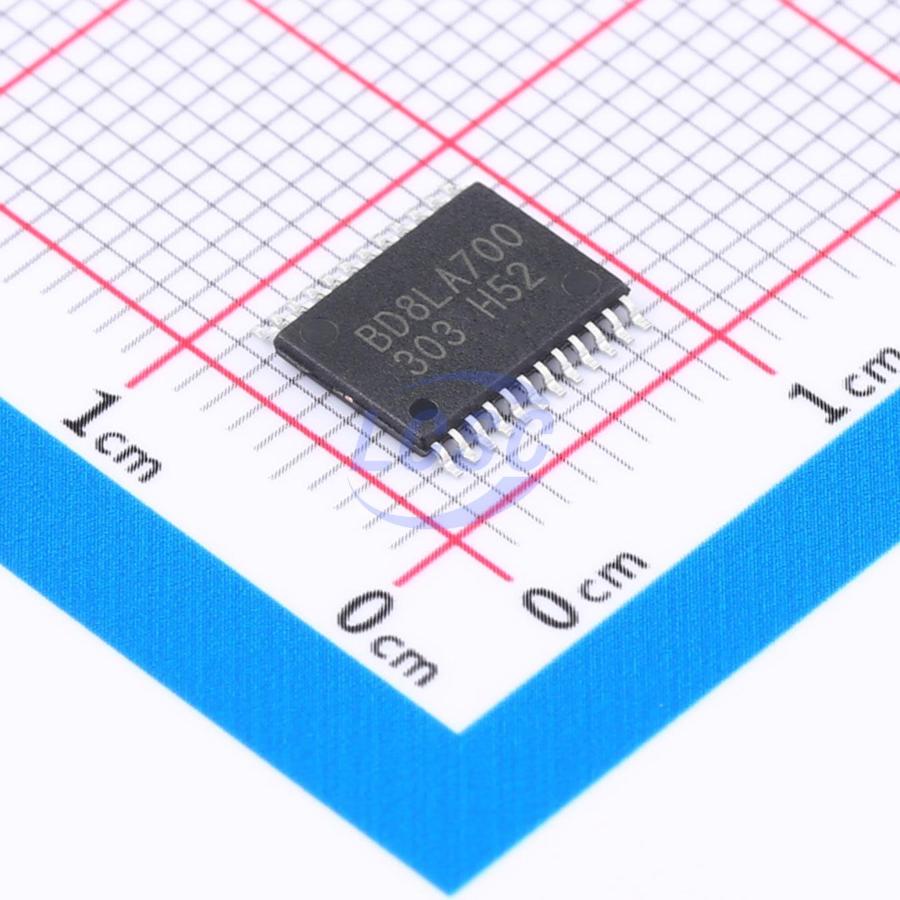

BD8LA700EFV-CE2
8 1.2A Active High Low Side Switch HTSSOP-24-EP-5.6mm Power Distribution Switches, Load Drivers RoHS
HTSSOP-24-EP-5.6mmROHS3 CompliantActive
8ch Low-side switch for Automotive
- Manufacturer
- ROHM
- Manufacturer part #
- BD8LA700EFV-CE2
- Store part #
- C2149792
- Package / case
- HTSSOP-24-EP-5.6mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,691 in stock
#C2149792
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.11 | ₹204.11 |
| 10+ | ₹160.48 | ₹1,604.80 |
| 30+ | ₹136.30 | ₹4,089.00 |
| 100+ | ₹109.29 | ₹10,929.00 |
| 500+ | ₹97.20 | ₹48,600.00 |
| 1,000+ | ₹91.80 | ₹91,800.00 |
1 × ₹204.11
₹204.11
excl. GST
₹240.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD8LA700EFV-CE2
₹204.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Over temperature protection;Overvoltage protection
- number of channels
- 8
- Maximum Continuous Current
- 1.2A
- Control Input Logic
- Active High
- RDS(on)
- 700mΩ
- Operating Voltage
- 3V~5.5V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.186 g
Overview
BD8LA700EFV is 8ch Low-Side switch for automotive and industrial equipment. It has a built-in, Open Load Detection circuit, Over Current Protection circuit, Active clamp circuit and Thermal Shutdown circuit.
Applications
- For driving resistive, inductive load
Key features
- Monolithic power IC that has a built-in control part (CMOS) and a power MOS FET on 1chip
- 8ch Low-side switch for driving resistive, inductive load
- 16bit Serial peripheral interface(SPI) for diagnostics and control
- Built-in Open Load Detection circuit in output-off state
- Built-in Over Current Protection circuit (OCP)
- Built-in Active Clamp circuit
- Built-in Thermal shutdown circuit (TSD)
- Low On resistance of RON = 700mΩ(VIN = 5V, T = 25°C, I = 0.2A, Typ)
- Surface mount HTSSOP-B24 Package
- AEC-Q100 Qualified
