ROHMDatasheet (PDF)

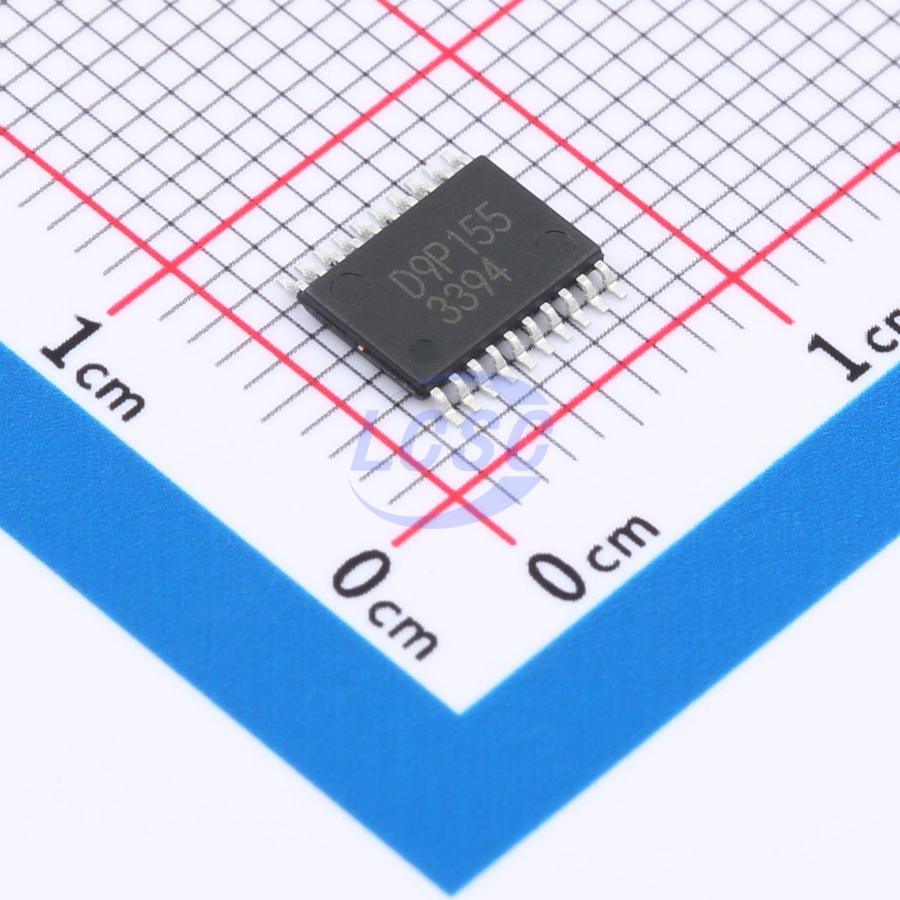

BD9P155EFV-CE2
Step-down type 2.2MHz Fixed 5V 1A HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS
HTSSOP-20-EPROHS CompliantActive
3.5 V to 40 V Input, 1 A Single 2.2 MHz Buck DC/DC Converter for Automotive
- Manufacturer
- ROHM
- Manufacturer part #
- BD9P155EFV-CE2
- Store part #
- C1518750
- Package / case
- HTSSOP-20-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C1518750
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.81 | ₹98.81 |
| 10+ | ₹96.65 | ₹966.50 |
| 30+ | ₹95.12 | ₹2,853.60 |
| 100+ | ₹93.83 | ₹9,383.00 |
1 × ₹98.81
₹98.81
excl. GST
₹116.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD9P155EFV-CE2
₹98.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 2.2MHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Light load efficient mode;Frequency synchronization;EMI optimization (spread spectrum);Output discharge;Overcurrent Protection;Operating status indication
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 3.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 1A
- Quiescent Current
- 10uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
BD9P1x5EFV-C Series are current mode synchronous buck DC/DC converter integrating POWER MOSFETs.
Applications
- Automotive Powered Supplies
- Consumer Powered Supplies
Key features
- Nano Pulse ControlTM
- AEC-Q100 Qualified
- Minimum ON Pulse 50 ns (Max)
- Synchronous Buck DC/DC Converter Integrating POWER MOSFETs
- Soft Start Function
- Current Mode Control
- Reset Function
- Quiescent Current 10 μA (Typ) with 12 V Input to 5.0 V Output
- Light Load Mode (LLM)
- Forced Pulse Wide Modulation (PWM) Mode
- Phase Compensation Included
- Selectable Spread Spectrum Switching
- External Synchronization Function
- Selectable Over Current Protection (OCP)
- Input Under Voltage Lockout (UVLO) Protection
- Thermal Shut Down (TSD) Protection
- Output Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
- Grade 1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS55165QPWPTQ1#C2070767TI · HTSSOP-20-EP | TI | HTSSOP-20-EP | 77 | ₹1,869.81 · 77 in stock | View |
 | TPS55165QPWPRQ1#C2071629TI · HTSSOP-20-EP | TI | HTSSOP-20-EP | 182 | ₹1,068.88 · 182 in stock | View |
