ROHM

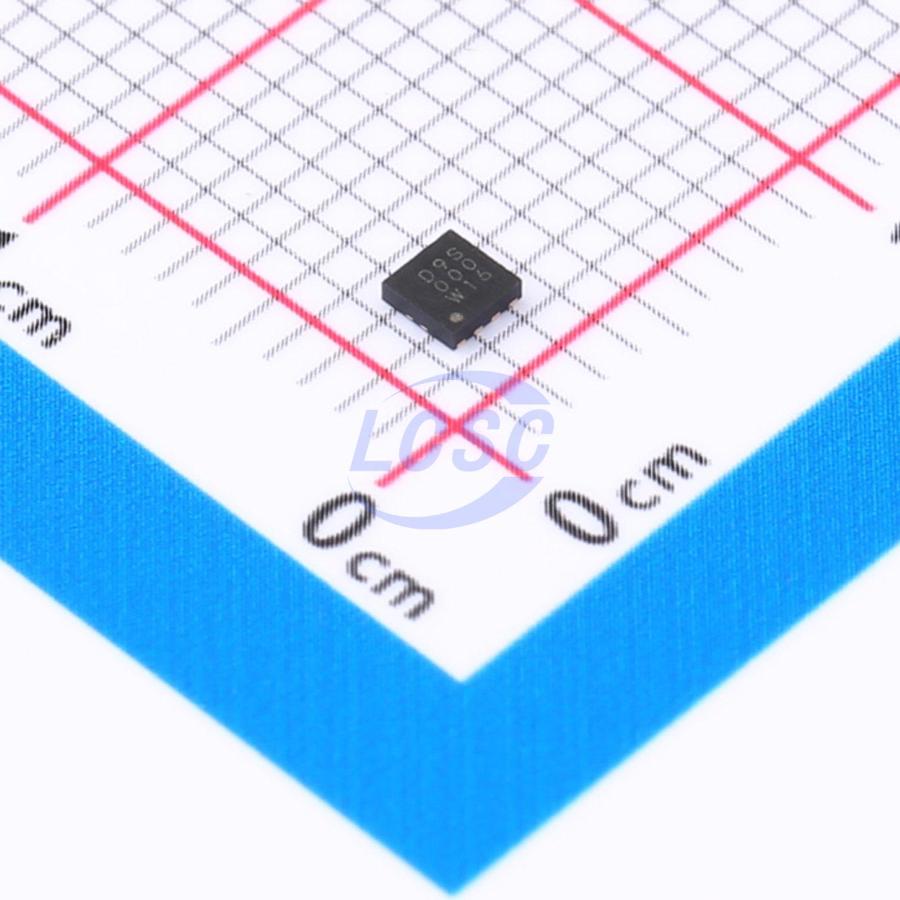

BD9S000NUX-CE2

2.2MHz Step-down type Adjustable 600mA 800mV~5.5V WDFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

WDFN-8-EP(2x2)ROHS3 CompliantActive

2.7 V to 5.5 V Input, 600 mA Single Synchronous Buck DC/DC Converter

Manufacturer: ROHM
Manufacturer part #: BD9S000NUX-CE2
Store part #: C2070831
Package / case: WDFN-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

35 in stock

#C2070831

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹68.36	₹68.36
10+	₹66.84	₹668.40
30+	₹65.96	₹1,978.80
100+	₹64.88	₹6,488.00

Quantity (min 1)

1 × ₹68.36

₹68.36

excl. GST

₹80.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

BD9S000NUX-CE2

₹68.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Output discharge;Operating status indication;Overcurrent Protection;Cycle-by-cycle current limiting;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 600mA
Output Voltage: 800mV~5.5V
Quiescent Current: 350uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

BD9S000NUX-C is a synchronous buck DC/DC Converter with built-in low On Resistance power MOSFETs. It is capable of providing current up to 600 mA. Small inductor is applicable due to high switching frequency of 2.2 MHz. It is a current mode control DC/DC Converter and features high-speed transient response. It has a built-in phase compensation circuit. Applications can be created with a few external components.

Applications

Automotive Equipment
Other Electronic Equipment

Key features

AEC-Q100 Qualified
Single Synchronous Buck DC/DC Converter
Adjustable Soft Start Function
Output Discharge Function
100% ON Duty Cycle
Power Good Output
Input Under Voltage Lockout Protection (UVLO)
Short Circuit Protection (SCP)
Output Over Voltage Protection (OVP)
Over Current Protection (OCP)
Thermal Shutdown Protection (TSD)
Grade 1
