ROHM

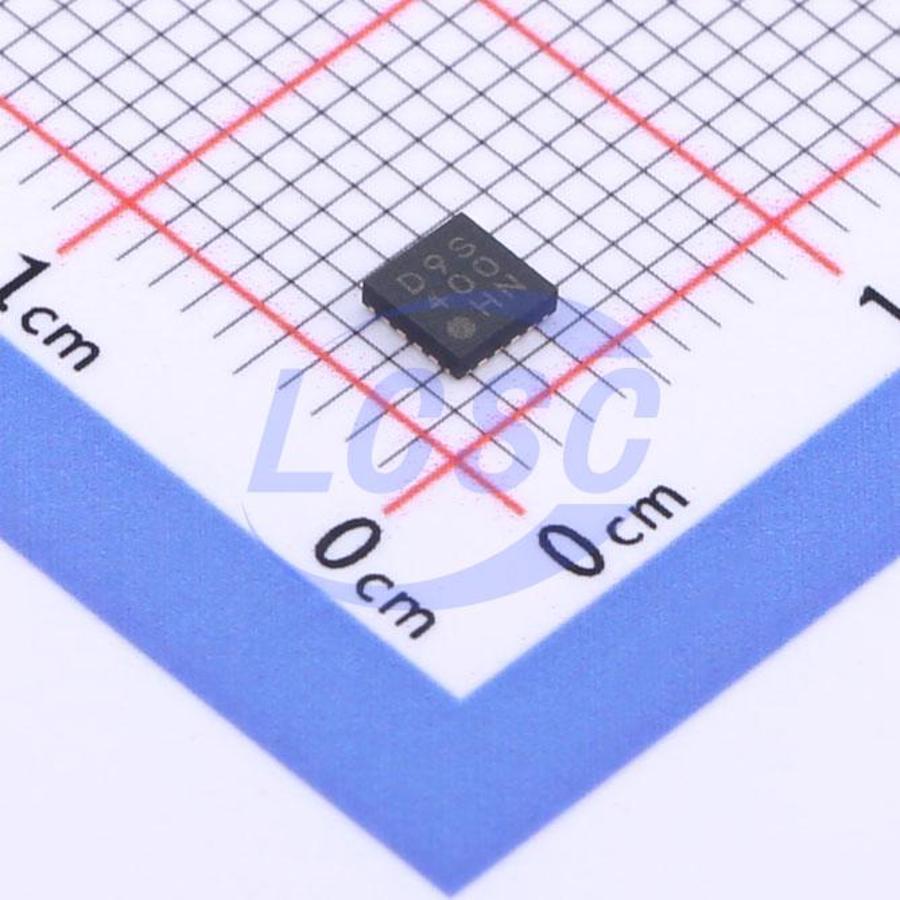

BD9S400MUF-CE2

2.2MHz Step-down type Adjustable 4A 800mV~4.4V VFQFN-16-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

VFQFN-16-EP(3x3)ROHS3 CompliantActive

2.7V to 5.5V Input, 4A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Manufacturer: ROHM
Manufacturer part #: BD9S400MUF-CE2
Store part #: C2071287
Package / case: VFQFN-16-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,422 in stock

#C2071287

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹180.95	₹180.95
10+	₹148.19	₹1,481.90
30+	₹130.18	₹3,905.40
100+	₹109.78	₹10,978.00
500+	₹100.67	₹50,335.00
1,000+	₹96.76	₹96,760.00

Quantity (min 1)

1 × ₹180.95

₹180.95

excl. GST

₹213.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BD9S400MUF-CE2

₹180.95 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Operating status indication;Overcurrent Protection;Cycle-by-cycle current limiting;Light load efficient mode;Frequency synchronization;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 4A
Output Voltage: 800mV~4.4V
Quiescent Current: 650uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.059 g

Overview

BD9S400MUF-C is a synchronous buck DC/DC Converter with built-in low On Resistance power MOSFETs. It is capable of providing current up to 4A. The SLLMTM control provides excellent efficiency characteristics in light-load conditions which make the product ideal for reducing standby power consumption of equipment. Small inductor is applicable due to high switching frequency of 2.2MHz. It is a current mode control DC/DC Converter and features high-speed transient response. Phase compensation can also be set easily. It can also be synchronized to external pulse.

Applications

Automotive Equipment (Cluster Panel, Infotainment Systems)
Other Electronic Equipment

Key features

SLLMTM (Simple Light Load Mode) Control
AEC-Q100 Qualified
Single Synchronous Buck DC/DC Converter
Adjustable Soft Start Function
Power Good Output
Input Under Voltage Lockout Protection
Short Circuit Protection
Output Over Voltage Protection
Over Current Protection
Thermal Shutdown Protection
Wettable Flank QFN Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BD9A600MUV-E2#C509834ROHM · VQFN-16-EP(3x3)	ROHM	VQFN-16-EP(3x3)	2,797	₹124.18 · 2,797 in stock	View
TPS54618QRTERQ1#C2865612TI · WQFN-16-EP(3x3)	TI	WQFN-16-EP(3x3)	136	₹680.68 · 136 in stock	View
TPS54618RTER#C183201TI · WQFN-16-EP(3x3)	TI	WQFN-16-EP(3x3)	168	₹238.52 · 168 in stock	View
TPS54418RTET#C2071078TI · WQFN-16-EP(3x3)	TI	WQFN-16-EP(3x3)	22	₹123.59 · 22 in stock	View
TPS54418RTER#C545176TI · WQFN-16-EP(3x3)	TI	WQFN-16-EP(3x3)	622	₹228.96 · 622 in stock	View
