Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,160 in stock
#C2681317
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.36 | ₹103.60 |
| 100+ | ₹8.32 | ₹832.00 |
| 300+ | ₹7.30 | ₹2,190.00 |
| 2,500+ | ₹6.55 | ₹16,375.00 |
| 5,000+ | ₹5.94 | ₹29,700.00 |
| 10,000+ | ₹5.64 | ₹56,400.00 |
10 × ₹10.36
₹103.60
excl. GST
₹122.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

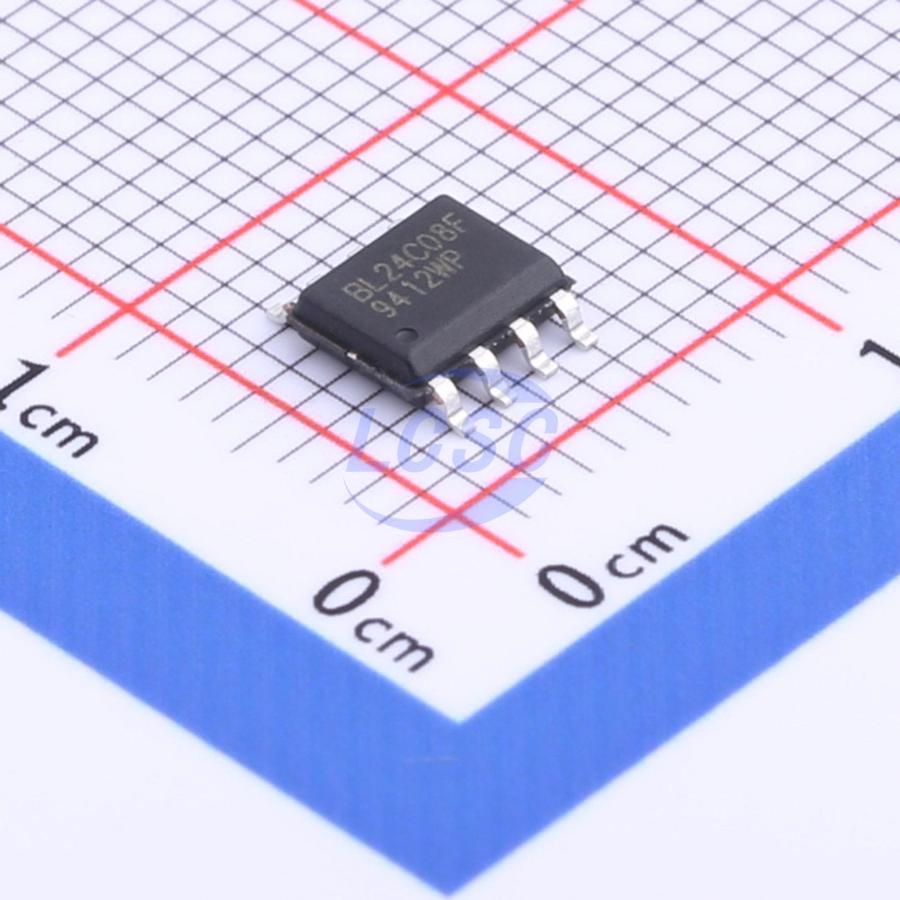

BL24C08F-PARC
₹103.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.308 g
Overview
The BL24C08F provides 8192 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I2C bidirectional data transfer protocol
- Memory array: 8K bits (1024 X 8) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1 MHz Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability:
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection: HBM 5000V
- 8-lead PDIP/SOP/TSSOP and UDFN packages
