BLDatasheet (PDF)

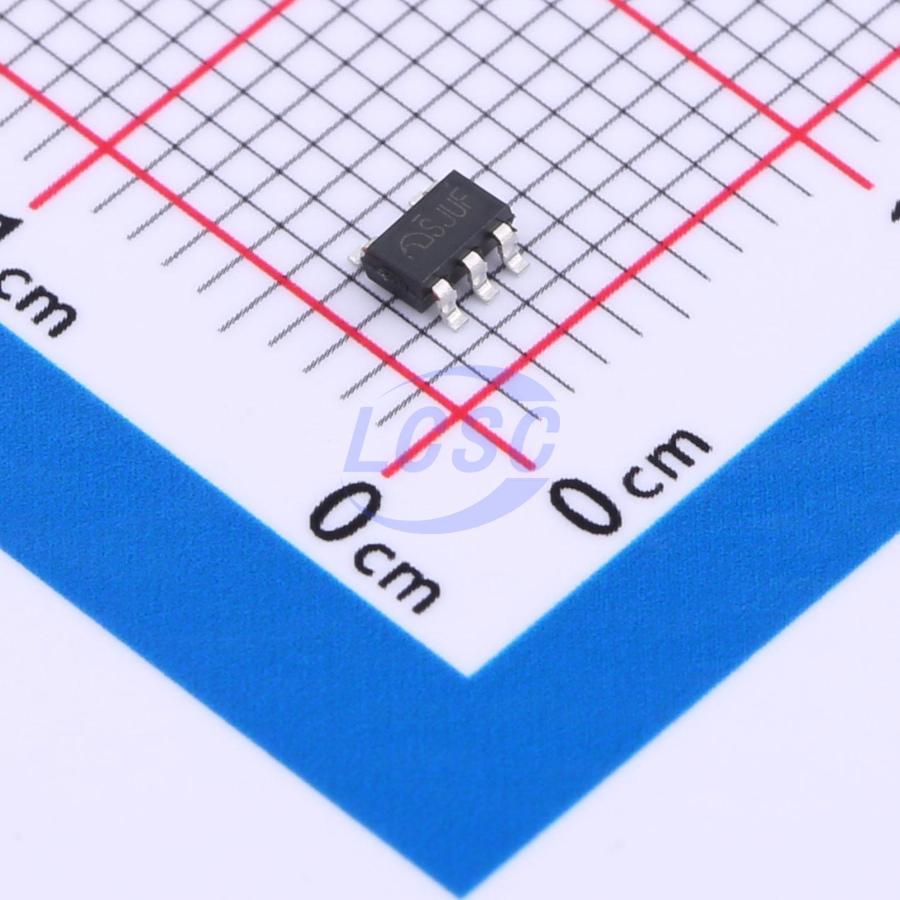

BL2556ACB5TR
High Side Switch 1 Channel SOT-23-5
SOT-23-5RoHSActive
5V USB high-side adjustable threshold current-limiting load switch
- Manufacturer
- BL
- Manufacturer part #
- BL2556ACB5TR
- Store part #
- C2909512
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,335 in stock
#C2909512
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.26 | ₹96.30 |
| 50+ | ₹15.72 | ₹786.00 |
| 150+ | ₹13.94 | ₹2,091.00 |
| 500+ | ₹12.62 | ₹6,310.00 |
| 3,000+ | ₹11.03 | ₹33,090.00 |
| 6,000+ | ₹10.50 | ₹63,000.00 |
5 × ₹19.26
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL2556ACB5TR
₹96.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 70mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
BL2556 is an adjustable current-limiting threshold USB interface output protection IC designed for 5V applications. It integrates overcurrent protection, short-circuit protection, over-temperature protection, and undervoltage protection. When the output experiences overcurrent, short-circuit, or startup with large capacitive loads, it limits the current output to protect the upstream power supply.
Applications
- USB bus/self-powered hubs
- USB peripherals
- Notebook computers
- Tablet battery chargers
Key features
- 70mΩ on-resistance
- Adjustable current limit threshold via external resistor
- Current limit threshold tolerance over full operating range: ±15%
- Fast response protection against output short circuit, suppressing inrush current
- No substrate diode, prevents reverse current flow when chip is disabled
