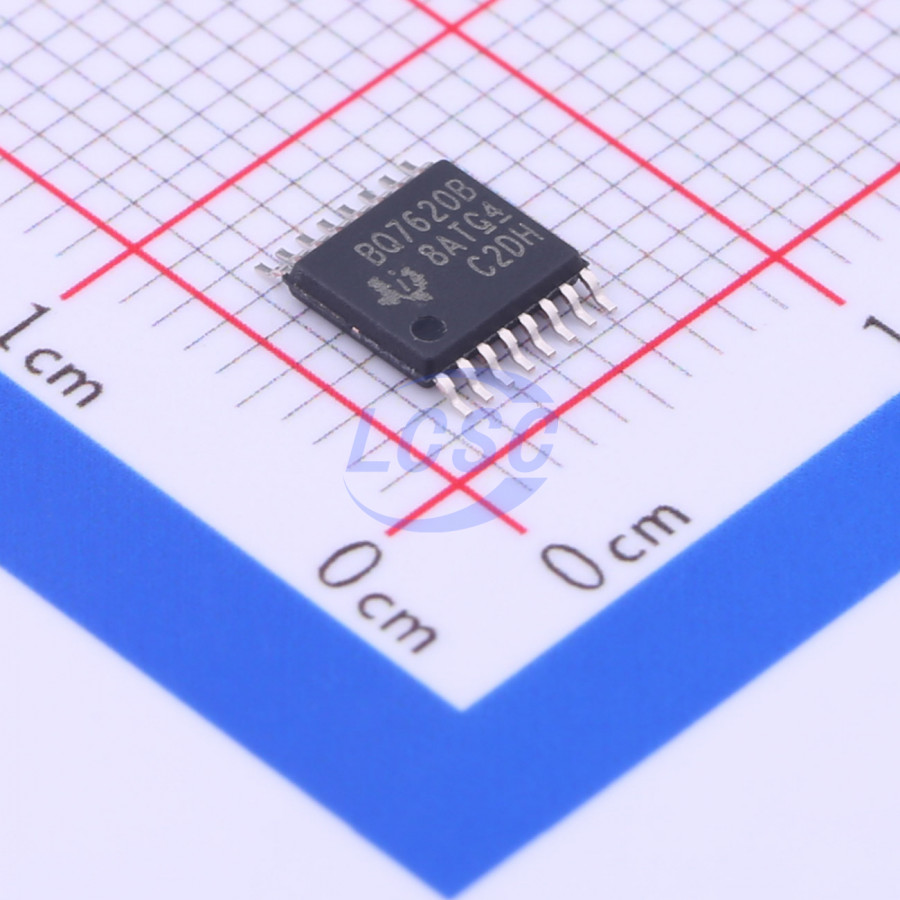

BQ76200PWR
TSSOP-16 Battery Management RoHS
CHG and DSG High-Side NMOSFET Drivers for Battery Protection Fast FET Turn-On and Turn-Off Times
- Manufacturer
- TI
- Manufacturer part #
- BQ76200PWR
- Store part #
- C216213
- Package / case
- TSSOP-16
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,782 in stock
#C216213
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.89 | ₹175.89 |
| 10+ | ₹148.03 | ₹1,480.30 |
| 30+ | ₹132.79 | ₹3,983.70 |
| 100+ | ₹115.38 | ₹11,538.00 |
| 500+ | ₹107.76 | ₹53,880.00 |
| 1,000+ | ₹104.28 | ₹1,04,280.00 |
1 × ₹175.89
₹175.89
excl. GST
₹207.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BQ76200PWR
₹175.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Voltage
- 9V~14V
- Quiescent Current
- 40uA
- Operating Voltage
- 8V~75V
- Features
- Digital control;Low-power standby
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The bq76200 device is a low-power, high-side, NChannel system. A high-side protection avoids ground disconnection in the system and also allows continuous communication between the battery pack and host system. The device has additional PChannel FET control to allow low-current pre-charge to a deeply depleted battery, and a PACK+ voltage monitor control for the host to sense the PACK+ voltage. The independent enable inputs allow CHG and DSG FETs to be turned on and off separately, offering great implementation flexibility in battery systems. The bq76200 device can be used with a companion Analog Front End device such as the bq76920/30/40 family, a 3-series to 15-series Cell Analog Front End Monitoring, and a host microcontroller or dedicated state-of-charge (SOC) tracking gas gauge device.
Applications
- eBikes, eScooters, and eMotorcycles
- Energy Storage Systems and Uninterruptible Power Supplies (UPS)
- Portable Medical Systems
- Wireless Base-Station Battery Systems
- Lead Acid (PbA) Replacement Batteries
- 12-V to 48-V Battery Packs
Key features
- CHG and DSG High-Side NMOS FET Drivers for Battery Protection Fast FET Turn-On and Turn-Off Times
- Pre-Charge PFET Driver (for Current-Limited Pre charge of Significantly Depleted Cell-pack)
- Independent Digital Enable Control for Charging and Discharging
- Minimal External Components Needed
- Scalable External Capacitor-Based Charge Pump to Accommodate a Different Range of FETs in Parallel
- High-Voltage Tolerant (100-V Absolute Maximum)
- Internal Switch to Enable Pack-Voltage Sensing
- Common and Separate Charge and Discharge Path Configuration Support
- Designed to Work Directly With bq76940, bq76930, and bq76920 Battery Monitors
- Current Consumption:
- NORMAL Mode: 40 μA SHUTDOWN: <10 μA Maximum
