ROHM

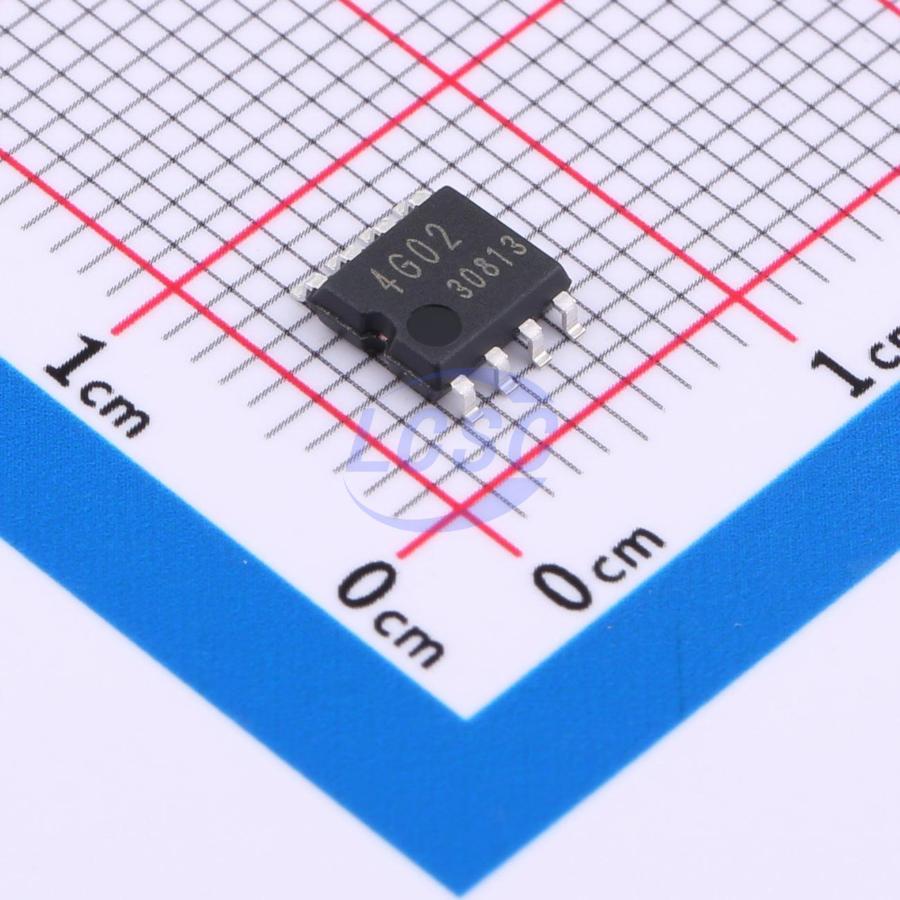

BR24G02F-3GTE2
2Kbit 400kHz I2C SOIC-8-175mil Memory RoHS
SOIC-8-175milROHS CompliantActive
I2C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C2062152
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.79 | ₹88.95 |
| 50+ | ₹15.65 | ₹782.50 |
| 150+ | ₹14.74 | ₹2,211.00 |
| 500+ | ₹13.60 | ₹6,800.00 |
| 2,500+ | ₹13.08 | ₹32,700.00 |
| 5,000+ | ₹12.78 | ₹63,900.00 |
5 × ₹17.79
₹88.95
excl. GST
₹104.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24G02F-3GTE2
₹88.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
BR24G02-3 is a 2Kbit serial EEPROM of I²C BUS Interface.
Key features
- Completely Conforming to the World Standard I2C BUS
- All Controls Available by 2 Ports of Serial Clock (SCL) and Serial Data (SDA)
- Other Devices than EEPROM can be Connected to the Same Port, Saving Microcontroller Port
- 1.6V to 5.5V Single Power Source Operation Most Suitable for Battery Use
- 1.6V to 5.5V Wide Limit of Operating Voltage, Possible FAST MODE 400KHz Operation
- Up to 8 Byte in Page Write Mode
- 256x8 Bit Format
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake Write (Write Protect) Function Added
- Prevention of Write Mistake at Low Voltage
- More than 1 Million Write Cycles
- More than 40 Years Data Retention
- Noise Filter Built in SCL / SDA Terminal
- Initial Delivery State FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BR24T02F-WGE2#C2061258ROHM · SOP-8-4.4mm | ROHM | SOP-8-4.4mm | On request | ₹30.20 · 0 in stock | View | |
 | BR24T02F-WE2#C518957ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | On request | ₹15.55 · 0 in stock | View |
 | BR24L02F-WE2#C509765ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | On request | ₹45.66 · 0 in stock | View |
