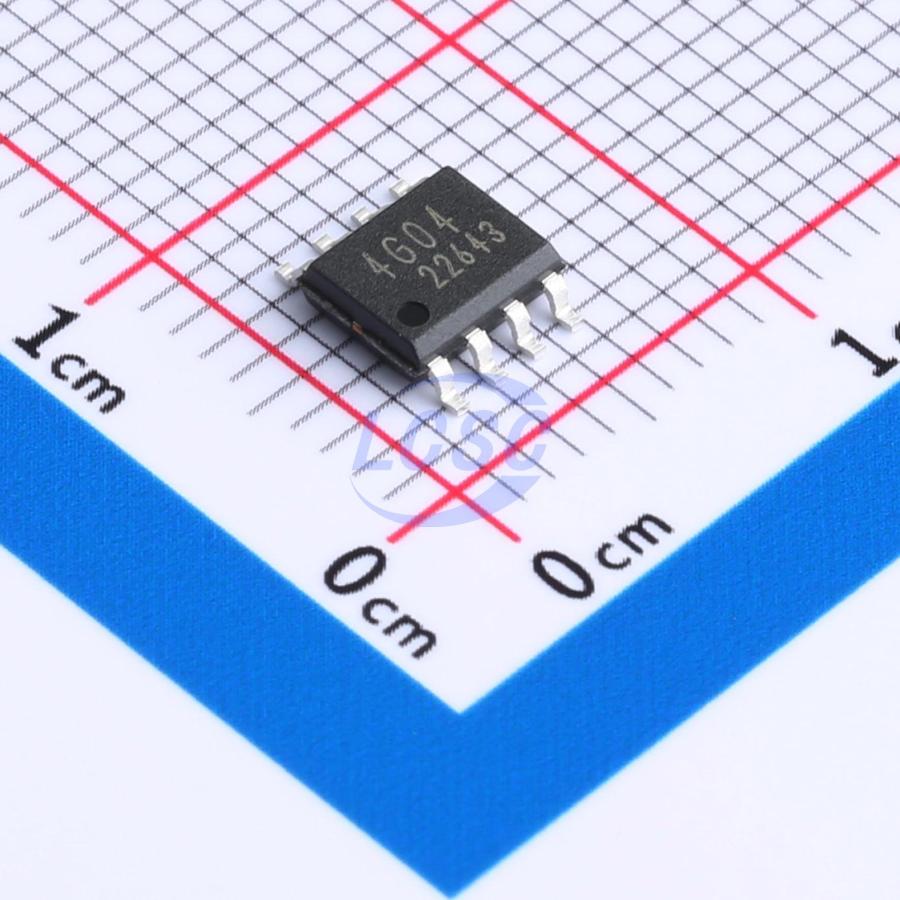

ROHM
BR24G04FJ-3GTE2
4Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
Serial EEPROM I2C BUS Interface
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,340 in stock
#C5158103
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.76 | ₹68.80 |
| 50+ | ₹10.73 | ₹536.50 |
| 150+ | ₹9.21 | ₹1,381.50 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 2,500+ | ₹7.16 | ₹17,900.00 |
| 5,000+ | ₹6.71 | ₹33,550.00 |
5 × ₹13.76
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24G04FJ-3GTE2
₹68.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
BR24G04-3 is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I2C BUS.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operating voltage, possible FAST MODE 400kHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake
- Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT24C04WI-GT3#C71194onsemi · SOIC-8 | onsemi | SOIC-8 | 12,810 | ₹45.41 · 12,810 in stock | View |
| 24AA04T-I/SN#C2061464MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 177 | ₹48.02 · 177 in stock | View | |
 | 24AA04H-I/SN#C615119MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 45 | ₹98.60 · 45 in stock | View |
 | M24C04-RMN6TP#C81147ST · SOIC-8 | ST | SOIC-8 | 21,735 | ₹28.81 · 21,735 in stock | View |
 | 24AA04T-I/SN-TUDI#C41410992Tudi · SOP-8 | Tudi | SOP-8 | 2,500 | ₹26.96 · 2,500 in stock | View |
