ROHM

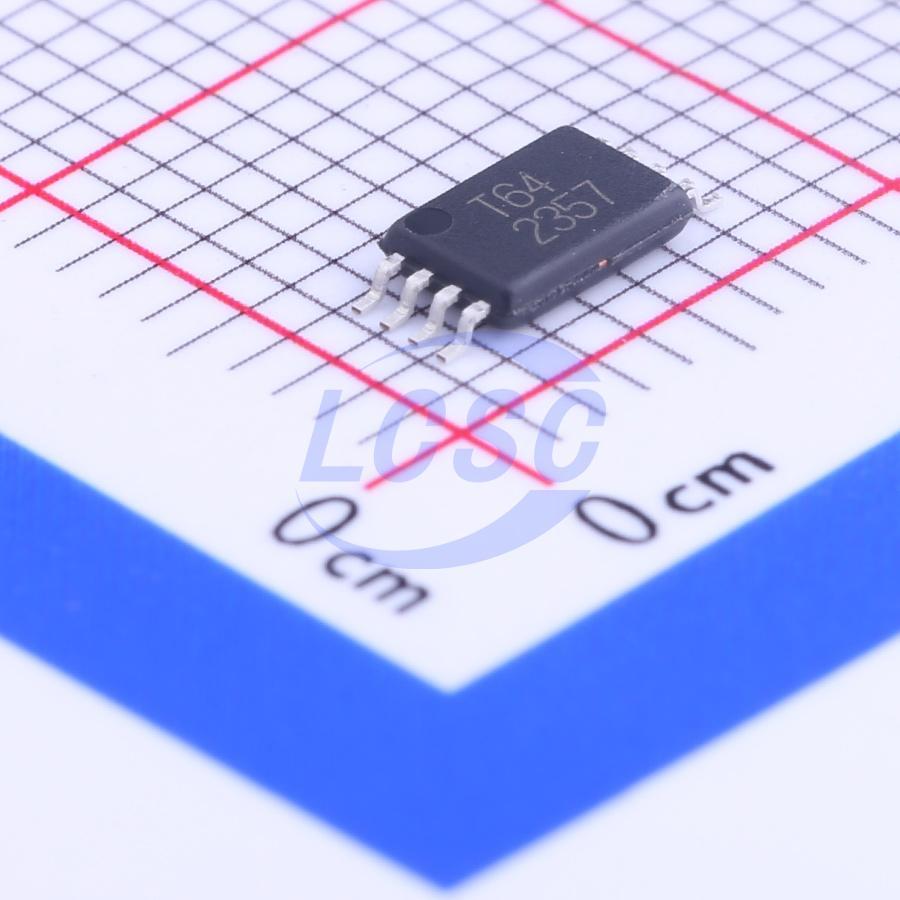

BR24T64FVT-WE2
64Kbit 400kHz I2C TSSOP-8 Memory RoHS
TSSOP-8ROHS CompliantActive
I²C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,989 in stock
#C123060
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.34 | ₹52.34 |
| 10+ | ₹41.05 | ₹410.50 |
| 30+ | ₹36.05 | ₹1,081.50 |
| 100+ | ₹30.19 | ₹3,019.00 |
| 500+ | ₹27.37 | ₹13,685.00 |
| 1,000+ | ₹25.85 | ₹25,850.00 |
1 × ₹52.34
₹52.34
excl. GST
₹61.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BR24T64FVT-WE2
₹52.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
BR24T64-W is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I2C BUS.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operation voltage, possible FAST MODE 400KHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C64D-XHM-T-TUDI#C36533632Tudi · TSSOP-8 | Tudi | TSSOP-8 | 320 | ₹37.51 · 320 in stock | View |
 | CAT24C64YI-GT3-TUDI#C36533633Tudi · TSSOP-8 | Tudi | TSSOP-8 | 2,470 | ₹33.72 · 2,470 in stock | View |
| 24AA64-I/ST#C619613MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 12 | ₹112.42 · 12 in stock | View | |
 | AT24C64B-10TU-1.8#C1348953MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 10 | ₹344.34 · 10 in stock | View |
 | M24C64-RDW6TP#C189763ST · TSSOP-8 | ST | TSSOP-8 | 2,035 | ₹44.65 · 2,035 in stock | View |
