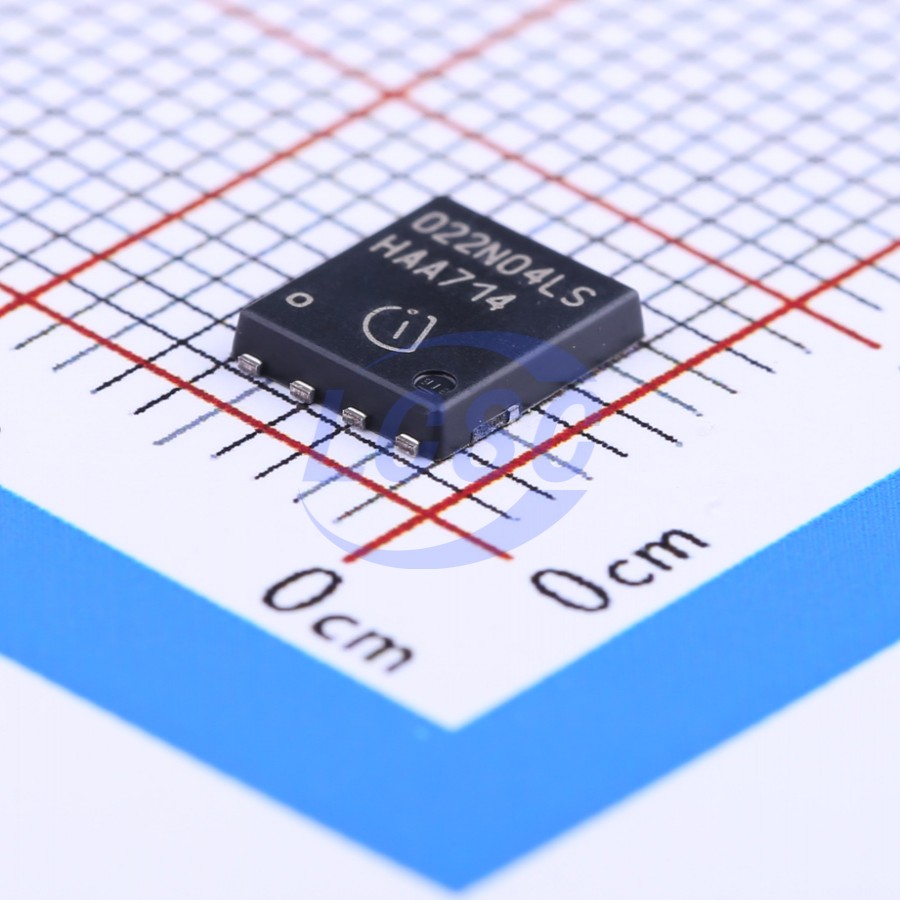

BSC022N04LS
N-Channel 40V 100A 69W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS CompliantActive
MOSFET N-CH 40V 100A TDSON-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- BSC022N04LS
- Store part #
- C148266
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C148266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹941.76 | ₹941.76 |
| 10+ | ₹842.58 | ₹8,425.80 |
| 30+ | ₹782.00 | ₹23,460.00 |
| 100+ | ₹731.24 | ₹73,124.00 |
1 × ₹941.76
₹941.76
excl. GST
₹1,111.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC022N04LS
₹941.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.05nF
- Ciss-Input Capacitance
- 3.64nF
- Pd - Power Dissipation
- 69W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 3.2mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 52nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
Key features
- Optimized for high performance SMPS, e.g. sync. rec.
- Very low on-resistance RDS(on) @ Vgs = 4.5 V
- 100% avalanche tested
- Superior thermal resistance
- N-channel
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
