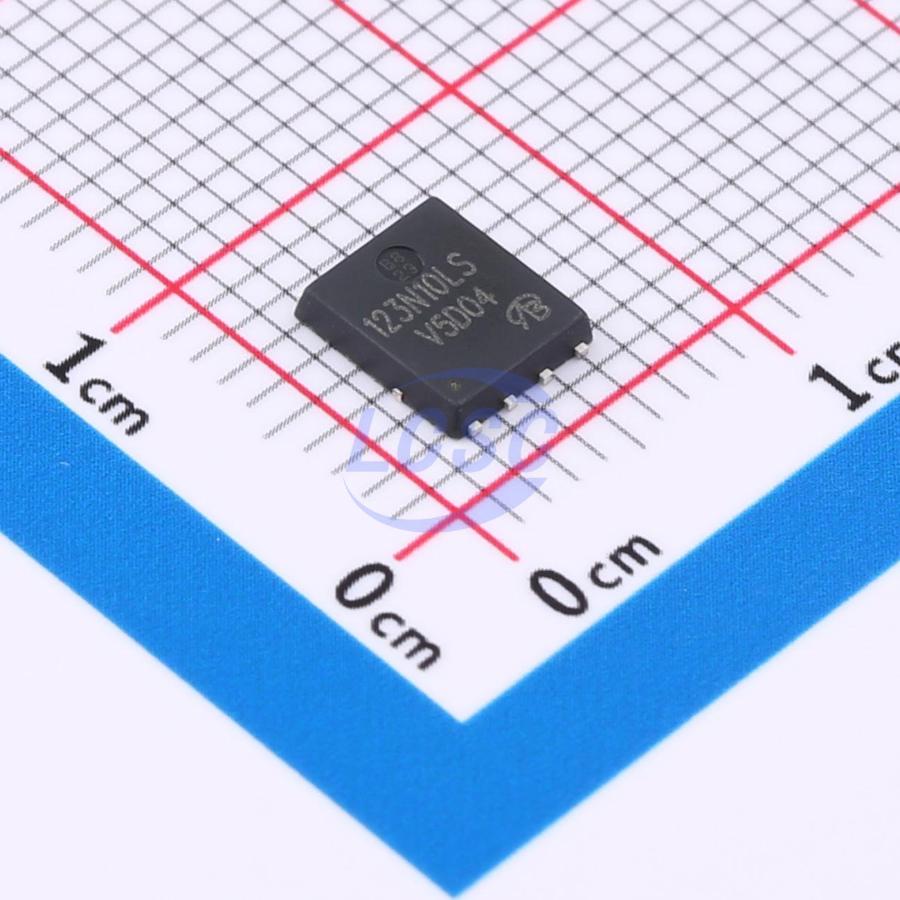

BSC123N10LS G-VB
N-Channel 100V 55A Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 100V 55A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSC123N10LS G-VB
- Store part #
- C47993868
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993868
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.60 | ₹120.60 |
| 10+ | ₹97.13 | ₹971.30 |
| 30+ | ₹85.40 | ₹2,562.00 |
| 100+ | ₹73.66 | ₹7,366.00 |
| 500+ | ₹66.72 | ₹33,360.00 |
| 1,000+ | ₹63.03 | ₹63,030.00 |
1 × ₹120.60
₹120.60
excl. GST
₹142.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC123N10LS G-VB
₹120.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 5.7nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Key features
- Junction temperature 175°C
- SGT technology power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC109N10NS3G-VB#C47993911VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 1 | ₹127.02 · 1 in stock | View |
 | BSC110N15NS5-VB#C22395968VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹313.55 · 10 in stock | View |
 | BSC093N15NS5ATMA1-VB#C22395970VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 1 | ₹232.53 · 1 in stock | View |
| SIR696DP-T1-GE3-VB#C22396005VBsemi Elec · DFN-8-EP(5x6) | VBsemi Elec | DFN-8-EP(5x6) | 60 | ₹332.50 · 60 in stock | View | |
 | NVMFS6B05NLT1G-VB#C47993767VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹229.67 · 10 in stock | View |
