VBsemi ElecDatasheet (PDF)

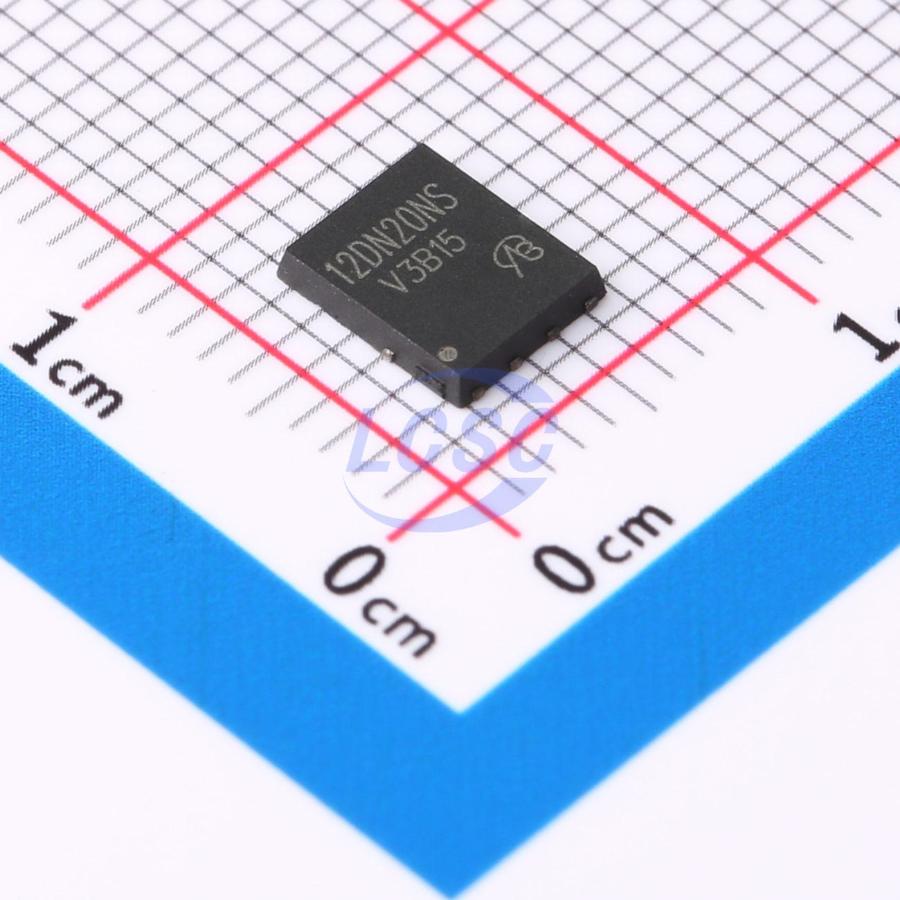

BSC12DN20NS3 G-VB
N-Channel 200V 30A 104W Surface Mount DFN5x6-8
DFN5x6-8ROHS CompliantActive
MOSFET N-CH 200V 30A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSC12DN20NS3 G-VB
- Store part #
- C7525059
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7525059
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹276.04 | ₹276.04 |
| 10+ | ₹271.47 | ₹2,714.70 |
| 30+ | ₹268.42 | ₹8,052.60 |
| 100+ | ₹200.06 | ₹20,006.00 |
1 × ₹276.04
₹276.04
excl. GST
₹325.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC12DN20NS3 G-VB
₹276.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 142pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.38nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 38mΩ@10V;43mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
Applications
- Fixed Telecom
- DC/DC Converters
- Primary and Secondary Side Switching
- Synchronous Rectification
- LED Lighting
- Power Supplies
- Class D Amplifiers
Key features
- Thunder technology optimizes the balance between RDS(on), gate charge Qg, switching charge Qsw, and output capacitor charge Qoss
- 100% gate resistance Rg and unclamped inductive switching UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC900N20NS3 G-VB#C20417584VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 27 | ₹311.14 · 27 in stock | View |
 | SI7450DP-VB#C22388964VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 5 | ₹311.17 · 5 in stock | View |
 | SIR616DP-T1-GE3-VB#C22396003VBsemi Elec · DFN-8-EP(5x6) | VBsemi Elec | DFN-8-EP(5x6) | 5 | ₹311.17 · 5 in stock | View |
 | BSC22DN20NS3 G-VB#C20755649VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 69 | ₹392.30 · 69 in stock | View |
 | SI7172DP-T1-GE3-VB#C20417555VBsemi Elec · DFN-8L(5x6) | VBsemi Elec | DFN-8L(5x6) | 16 | ₹339.10 · 16 in stock | View |
