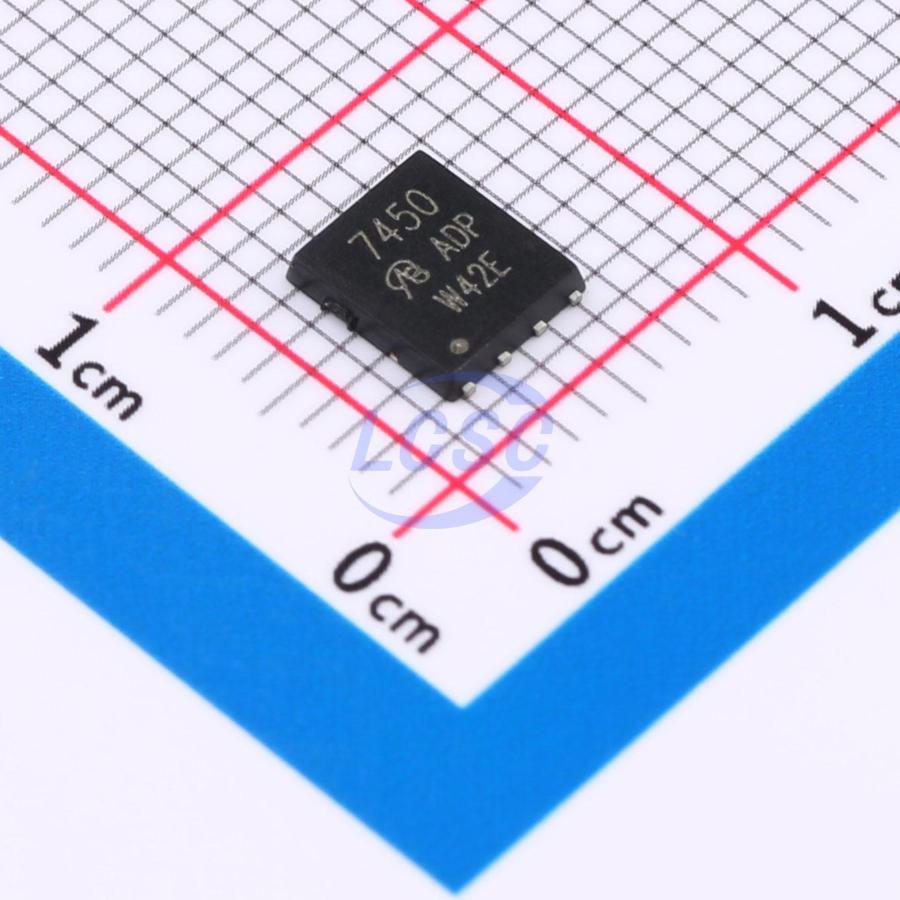

SI7450DP-VB
N-Channel 200V 30A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 200V 30A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7450DP-VB
- Store part #
- C22388964
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22388964
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹311.17 | ₹311.17 |
| 10+ | ₹263.41 | ₹2,634.10 |
| 30+ | ₹233.38 | ₹7,001.40 |
| 100+ | ₹202.70 | ₹20,270.00 |
| 500+ | ₹188.86 | ₹94,430.00 |
| 1,000+ | ₹182.81 | ₹1,82,810.00 |
1 × ₹311.17
₹311.17
excl. GST
₹367.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7450DP-VB
₹311.17 for 1 + GST
Specifications
- Drain to Source Voltage
- 200V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 30A
- Output Capacitance(Coss)
- 142pF
- Ciss-Input Capacitance
- 1.38nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 38mΩ@10V;43mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
Applications
- Fixed telecommunications
- DC-DC converters
- Primary and secondary side switching
- Synchronous rectification
- LED lighting
- Power supplies
- Class D amplifiers
Key features
- Thunder technology optimizes the balance of RDS(on), Qg, Qsw, and Qoss
- 100% Rg and UIS tested
