NexperiaDatasheet (PDF)

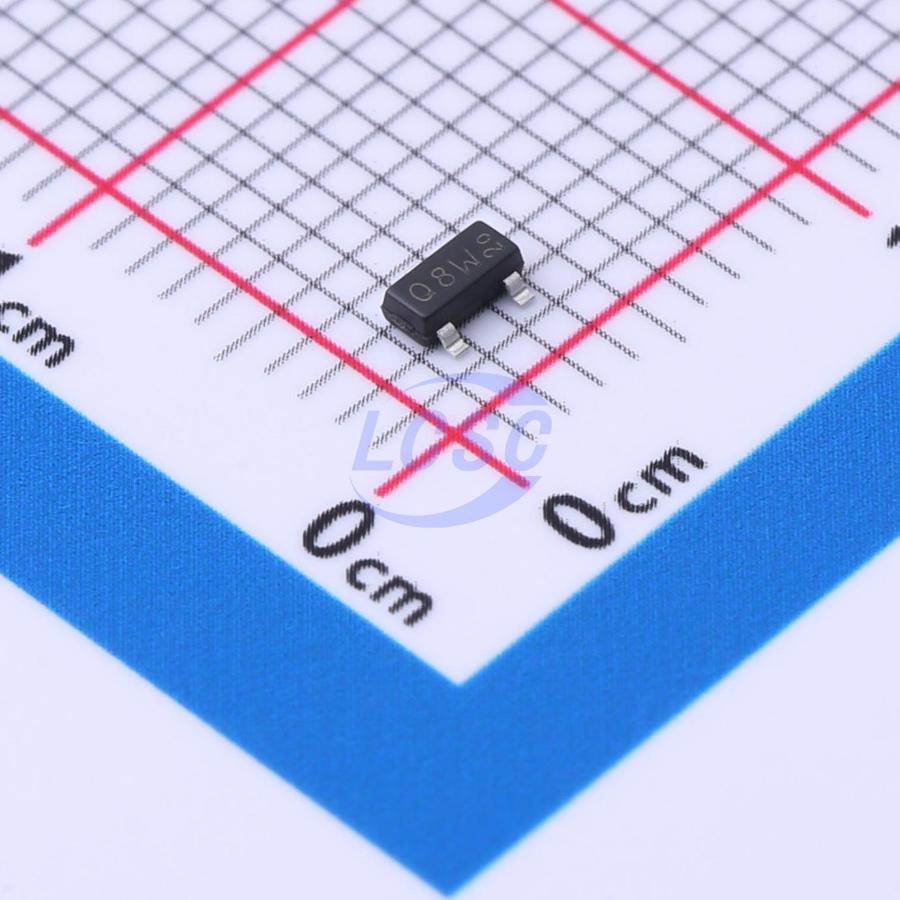

BSH205G2AR
P-Channel 20V 2.6A 10W Surface Mount TO-236AB
TO-236ABROHS3 CompliantActive
MOSFET P-CH 20V 2.6A TO-236AB
- Manufacturer
- Nexperia
- Manufacturer part #
- BSH205G2AR
- Store part #
- C3280958
- Package / case
- TO-236AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C3280958
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.99 | ₹149.95 |
| 50+ | ₹23.43 | ₹1,171.50 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹17.09 | ₹8,545.00 |
| 3,000+ | ₹15.53 | ₹46,590.00 |
| 6,000+ | ₹14.59 | ₹87,540.00 |
5 × ₹29.99
₹149.95
excl. GST
₹176.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSH205G2AR
₹149.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.6A
- Ciss-Input Capacitance
- 421pF
- Pd - Power Dissipation
- 10W
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 118mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- High-side load switch
- Switching circuits
Key features
- Low threshold voltage
- Extended temperature range Tj = 175 °C
- Trench MOSFET technology
- Very fast switching
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP4065S#C5122018TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,750 | ₹17.24 · 1,750 in stock | View |
 | PT2301A#C2944003PUOLOP · SOT-23 | PUOLOP | SOT-23 | 60 | ₹4.91 · 60 in stock | View |
 | SI2301#C351398PUOLOP · SOT-23 | PUOLOP | SOT-23 | 2,980 | ₹4.07 · 2,980 in stock | View |
 | DMP2110U-7#C3001619DIODES · SOT-23 | DIODES | SOT-23 | 500 | ₹26.88 · 500 in stock | View |
| AO3401A#C49396278YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 16,140 | ₹3.81 · 16,140 in stock | View | |
