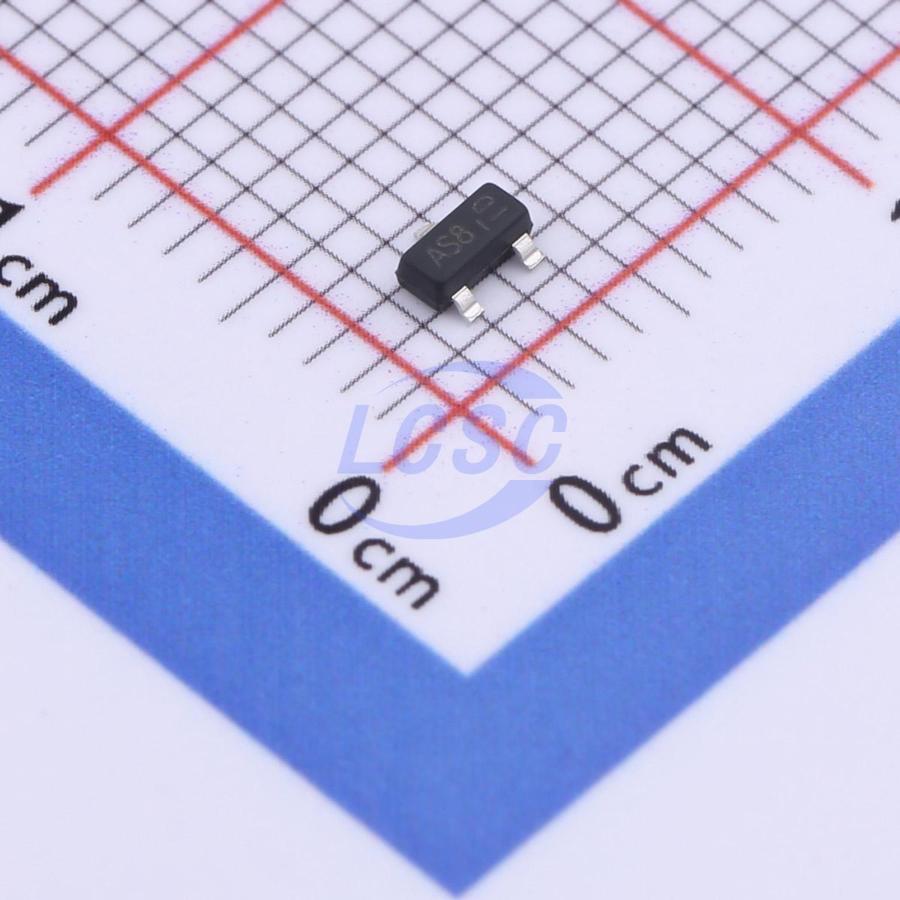

DMP2110U-7
P-Channel 20V 3.5A 1.2W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 3.5A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2110U-7
- Store part #
- C3001619
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C3001619
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.88 | ₹134.40 |
| 50+ | ₹21.45 | ₹1,072.50 |
| 150+ | ₹19.12 | ₹2,868.00 |
| 500+ | ₹16.21 | ₹8,105.00 |
| 3,000+ | ₹14.42 | ₹43,260.00 |
| 6,000+ | ₹13.64 | ₹81,840.00 |
5 × ₹26.88
₹134.40
excl. GST
₹158.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2110U-7
₹134.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 59pF
- Ciss-Input Capacitance
- 443pF
- Pd - Power Dissipation
- 1.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 110mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters Motor Control
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RHM3401C#C55591809RHM · SOT-23 | RHM | SOT-23 | 3,000 | ₹5.00 · 3,000 in stock | View |
 | SL2347#C5330386Slkor · SOT-23 | Slkor | SOT-23 | 5,770 | ₹8.59 · 5,770 in stock | View |
 | DMP2110U-13#C6183691DIODES · SOT-23-3 | DIODES | SOT-23-3 | 130 | ₹9.26 · 130 in stock | View |
 | 3401A-TD#C52437602TDSEMIC · SOT-23 | TDSEMIC | SOT-23 | 10,970 | ₹5.05 · 10,970 in stock | View |
 | XR3401#C49438201XNRUSEMI · SOT-23 | XNRUSEMI | SOT-23 | 1,000 | ₹3.36 · 1,000 in stock | View |
