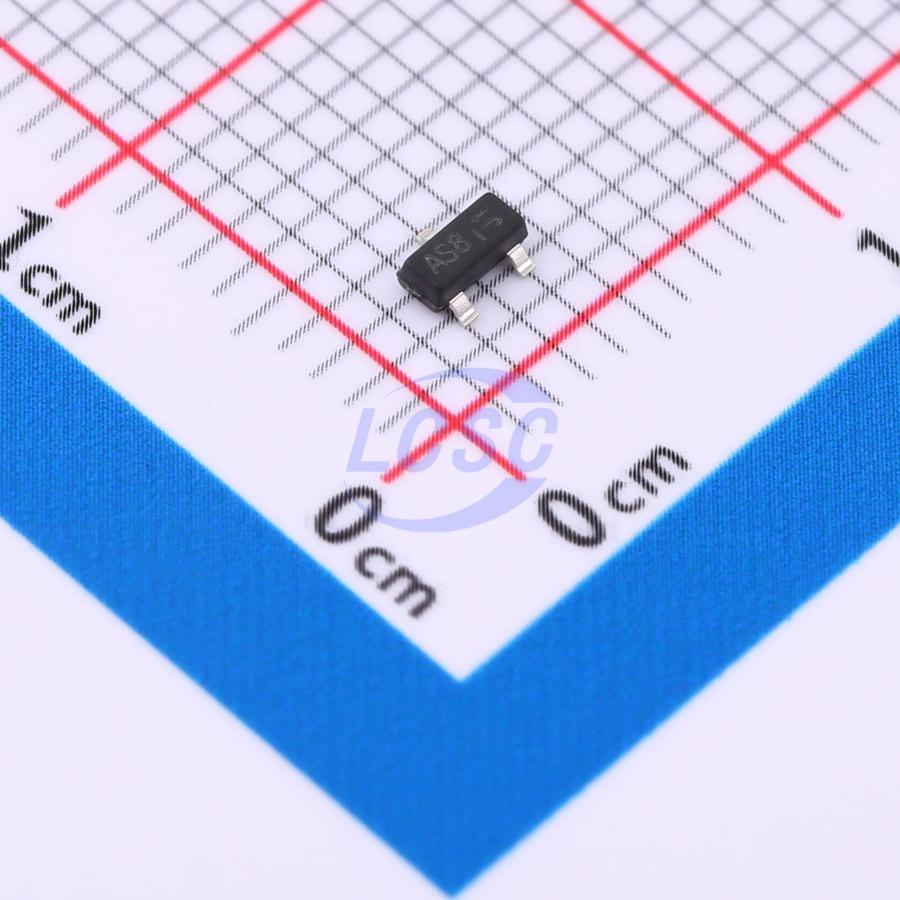

DMP2110U-13
P-Channel 20V 3.5A 800mW Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
MOSFET P-CH 20V 3.5A SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2110U-13
- Store part #
- C6183691
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C6183691
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.26 | ₹46.30 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹8.80 | ₹4,400.00 |
5 × ₹9.26
₹46.30
excl. GST
₹54.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP2110U-13
₹46.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 59pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 443pF
- Pd - Power Dissipation
- 800mW
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 55mΩ@4.5V;67mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power Management
- DC-DC Converter
- Motor Control
Key features
- Low on-resistance.
- Fast switching speed.
- Simplified drive circuit.
- Easy parallel operation.
- Lead-free pin plating; RoHS compliant
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2110U-7#C3001619DIODES · SOT-23 | DIODES | SOT-23 | 500 | ₹26.88 · 500 in stock | View |
 | DMP2045U-7#C459541DIODES · SOT-23 | DIODES | SOT-23 | 14,680 | ₹23.39 · 14,680 in stock | View |
 | DMP2045U-13#C5245355DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹22.24 · 5 in stock | View |
 | DMP2045UQ-13#C5359507DIODES · SOT-23-3 | DIODES | SOT-23-3 | 5 | ₹26.18 · 5 in stock | View |
 | RHM3401C#C55591809RHM · SOT-23 | RHM | SOT-23 | 3,000 | ₹5.00 · 3,000 in stock | View |
