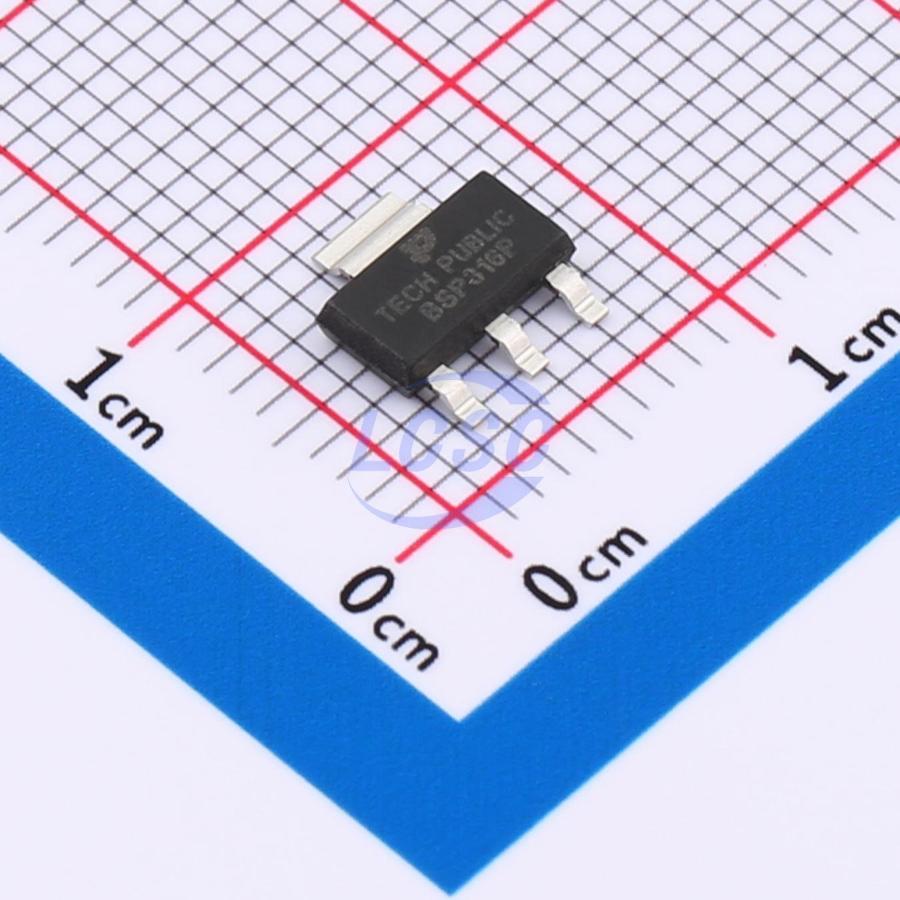

BSP316P
100V 2A 3.5W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET 100V 2A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BSP316P
- Store part #
- C7603353
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C7603353
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.29 | ₹136.45 |
| 50+ | ₹23.84 | ₹1,192.00 |
| 150+ | ₹22.36 | ₹3,354.00 |
| 500+ | ₹20.51 | ₹10,255.00 |
| 2,500+ | ₹19.69 | ₹49,225.00 |
| 5,000+ | ₹19.20 | ₹96,000.00 |
5 × ₹27.29
₹136.45
excl. GST
₹161.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BSP316P
₹136.45 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 29pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 553pF
- Pd - Power Dissipation
- 3.5W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.5nC
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.239 g
Overview
Applications
- Load/Power Switch - Interface Switch - Logic Level Translation
Key features
- Low on-resistance - Low gate threshold voltage - Low input capacitance - Fast switching speed - Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQT5P10TF-TP#C18197830TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 770 | ₹37.48 · 770 in stock | View |
 | TPM1002PY3#C7603351TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,355 | ₹26.47 · 2,355 in stock | View |
 | BSP322P#C7603352TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,440 | ₹51.07 · 2,440 in stock | View |
