TECH PUBLICDatasheet (PDF)

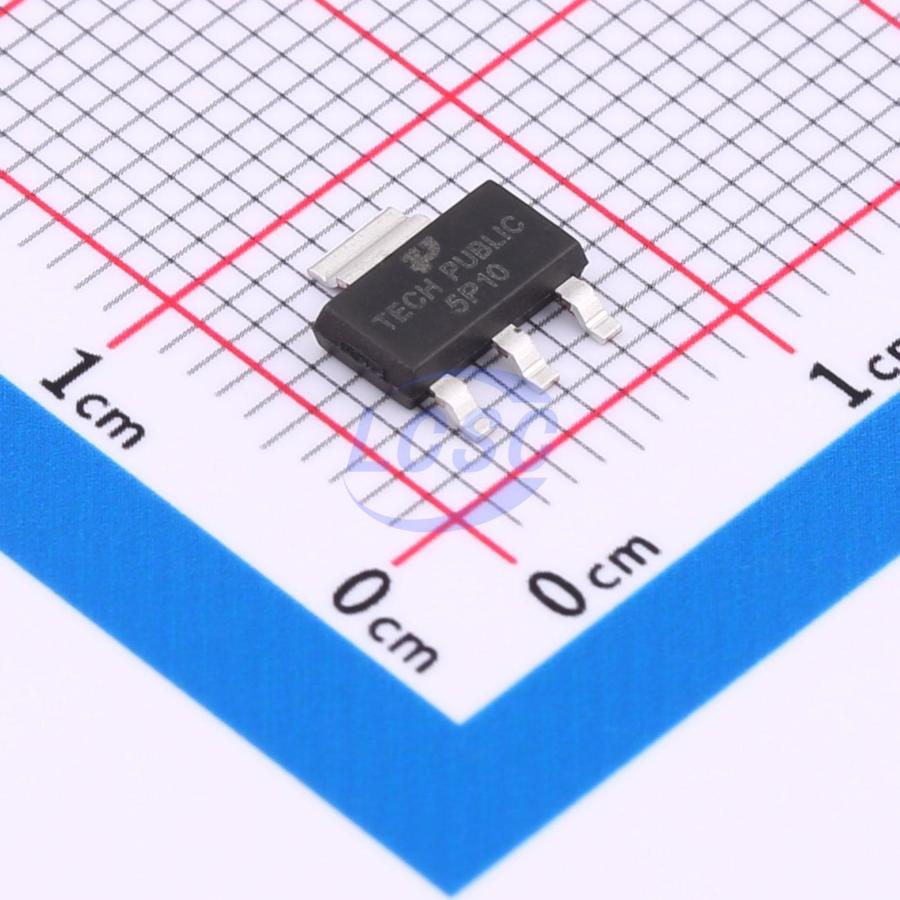

FQT5P10TF-TP
P-Channel 100V 2A 3.5W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET P-CH 100V 2A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FQT5P10TF-TP
- Store part #
- C18197830
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
770 in stock
#C18197830
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.48 | ₹187.40 |
| 50+ | ₹29.42 | ₹1,471.00 |
| 150+ | ₹25.98 | ₹3,897.00 |
| 500+ | ₹21.67 | ₹10,835.00 |
| 2,500+ | ₹19.77 | ₹49,425.00 |
| 5,000+ | ₹18.61 | ₹93,050.00 |
5 × ₹37.48
₹187.40
excl. GST
₹221.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQT5P10TF-TP
₹187.40 for 5 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 29pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 553pF
- Pd - Power Dissipation
- 3.5W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.228 g
Overview
This N-channel MOSFET utilizes advanced trench technology and design to deliver excellent on-resistance RDS(on) with low gate charge. It is suitable for a wide range of applications.
Applications
- Load/Power Switch - Interface Switch - Logic Level Translation
Key features
- Drain-source voltage V<sub>DS</sub> = 60V, drain current I<sub>D</sub> = 30A, on-resistance R<sub>DS(ON)</sub> < 30mΩ at V<sub>GS</sub> = 10V
- Low gate charge
- RoHS-compliant devices available
- Advanced high cell-density trench technology for ultra-low R<sub>DS(ON)</sub>
- Thermally efficient package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP316P#C7603353TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,970 | ₹27.29 · 1,970 in stock | View |
 | TPM1002PY3#C7603351TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,355 | ₹26.47 · 2,355 in stock | View |
 | BSP322P#C7603352TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,440 | ₹51.07 · 2,440 in stock | View |
