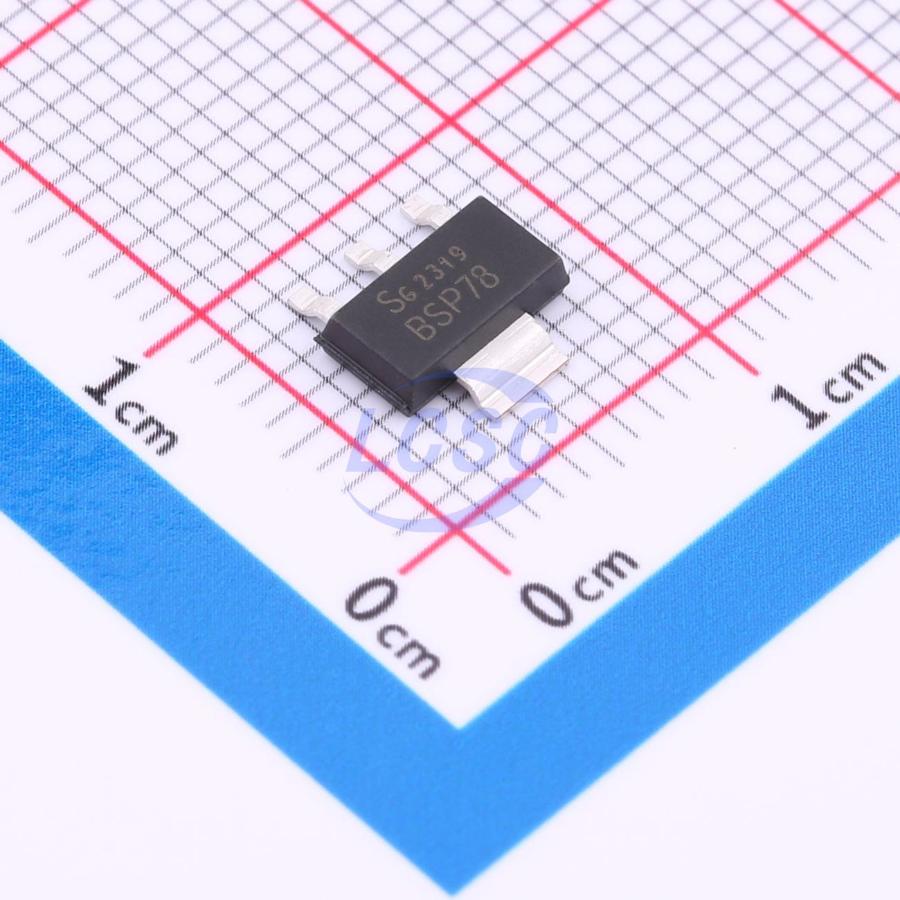

BSP78HUMA1
1 Active High 3A Low Side Switch SOT-223-4 Power Distribution Switches, Load Drivers RoHS
SOT-223-4ROHS3 CompliantActive
Smart Low Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BSP78HUMA1
- Store part #
- C2653794
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,915 in stock
#C2653794
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.51 | ₹192.51 |
| 10+ | ₹159.01 | ₹1,590.10 |
| 30+ | ₹140.74 | ₹4,222.20 |
| 100+ | ₹120.08 | ₹12,008.00 |
| 500+ | ₹110.95 | ₹55,475.00 |
| 1,000+ | ₹106.59 | ₹1,06,590.00 |
1 × ₹192.51
₹192.51
excl. GST
₹227.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BSP78HUMA1
₹192.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 3A
- Operating Voltage
- 42V
- RDS(on)
- 35mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.137 g
Overview
N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.
Applications
- All kinds of resistive, inductive and capacitive loads in switching or linear applications μC compatible power switch for 12 V DC applications
- Replaces electromechanical relays and discrete circuits
Key features
- Logic Level Input
- Input Protection (ESD)
- Thermal shutdown with auto restart
- Green product (RoHS compliant)
- Overload protection
- Short circuit protection
- Overvoltage protection
- Current limitation
- Analog driving possible
