HXY MOSFETDatasheet (PDF)

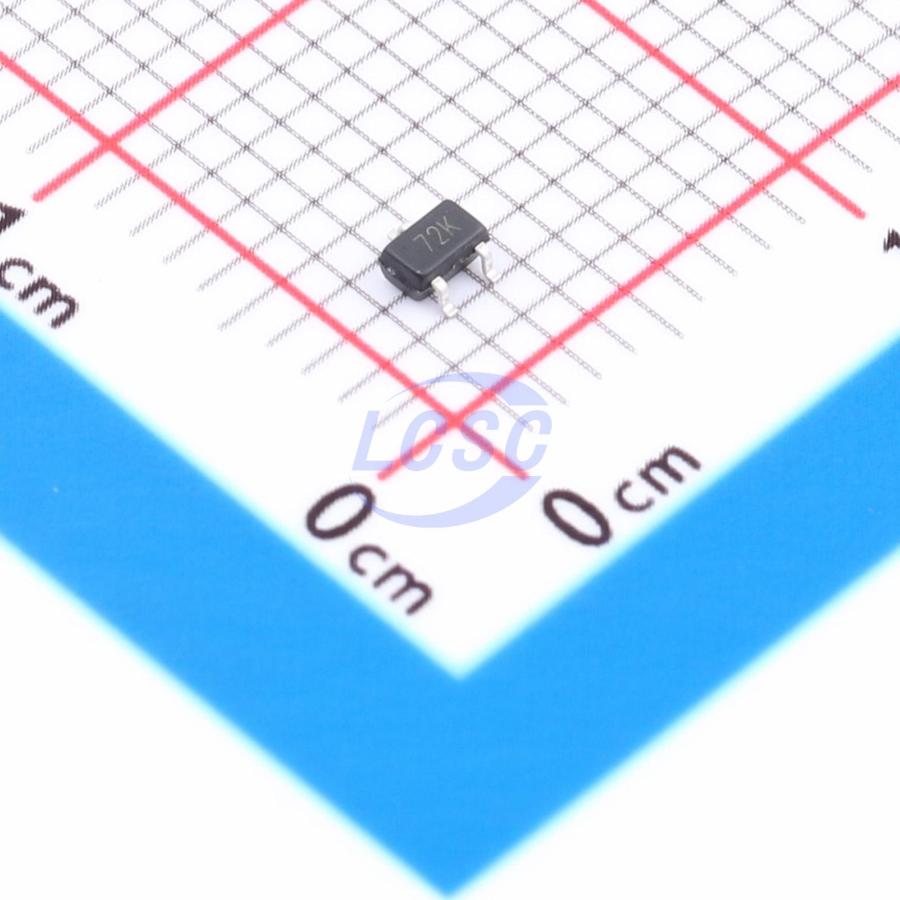

BSS138PW-HXY
60V 115mA 200mW 1.3Ω@10V 1 N-channel N-Channel SOT-323 Single FETs, MOSFETs
SOT-323RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSS138PW-HXY
- Store part #
- C54582498
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582498
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.82 | ₹109.10 |
| 50+ | ₹17.48 | ₹874.00 |
| 150+ | ₹15.61 | ₹2,341.50 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 3,000+ | ₹10.97 | ₹32,910.00 |
| 6,000+ | ₹10.35 | ₹62,100.00 |
5 × ₹21.82
₹109.10
excl. GST
₹128.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138PW-HXY
₹109.10 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The BSS138PW utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- N-channel MOSFET
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 0.115A
- On-Resistance (RDS(ON)) < 3Ω at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HNX138BKWX#C42401220HXY MOSFET · SOT-323-3 | HXY MOSFET | SOT-323-3 | 140 | ₹5.45 · 140 in stock | View |
 | HDMN63D1LW13#C42401245HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 100 | ₹3.90 · 100 in stock | View |
 | HBSS138BKW115#C42401425HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 200 | ₹5.33 · 200 in stock | View |
 | 2N7002PW-HXY#C54582427HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 80 | ₹10.03 · 80 in stock | View |
 | 2N7002KPW-AQ-HXY#C54582491HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 2,990 | ₹5.58 · 2,990 in stock | View |
