InfineonDatasheet (PDF)

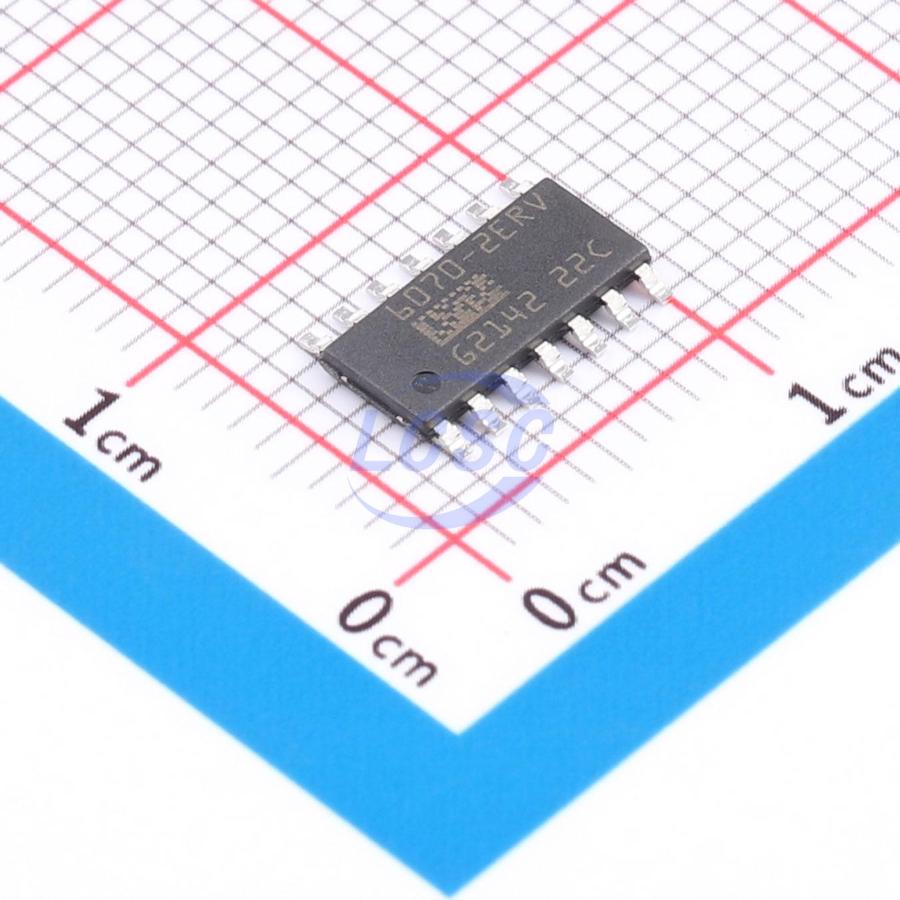

BTF6070-2ERV
2 3A Active High High Side Switch TDSO-14 Power Distribution Switches, Load Drivers RoHS
TDSO-14ROHS3 CompliantActive
Dual Channel Smart High-Side Power Switch for 12V and 24V Trucks and Transportation Systems
- Manufacturer
- Infineon
- Manufacturer part #
- BTF6070-2ERV
- Store part #
- C534729
- Package / case
- TDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,786 in stock
#C534729
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹419.60 | ₹419.60 |
| 10+ | ₹359.63 | ₹3,596.30 |
| 30+ | ₹323.99 | ₹9,719.70 |
| 100+ | ₹287.92 | ₹28,792.00 |
| 500+ | ₹271.41 | ₹1,35,705.00 |
| 1,000+ | ₹263.81 | ₹2,63,810.00 |
1 × ₹419.60
₹419.60
excl. GST
₹495.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTF6070-2ERV
₹419.60 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 2
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- Operating Voltage
- 5V~36V
- RDS(on)
- 60mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
The BTF6070-2ERV is a 60 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by a N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technology. It is specially designed to drive Valve Applications in the harsh automotive environment. For lighting applications the nominal bulb load of P10W+P5W 24 V or P10W 12 V is considered.
Applications
- 12 V and 24 V Trucks and Transportation Systems
- Valve Applications
- Resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- Dual channel device
- Fast switching device
- For 12 V and 24 V grounded loads
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant)
- AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTT6030-2ERA#C534865Infineon · TDSO-14 | Infineon | TDSO-14 | 10,841 | ₹396.48 · 10,841 in stock | View |
| BTT6030-2ERB#C534866Infineon · TDSO-14 | Infineon | TDSO-14 | 1 | ₹451.12 · 1 in stock | View | |
